SENOR-3800-01/TD1 + TA
Patented
Acoustic Wall Linings for Daytime and Nighttime Spaces with Noise Emission >80 dBA – Airborne Noise (RA,con: >67,9 dBA -DnTA >65 dBA)
Model 3800-01 / TD1 + TA
We are pleased to introduce an innovative lateral isolator incorporating advanced technology and featuring a new polymer component from the prestigious German manufacturer KRAIBURG. This material has been precision-engineered to deliver tranquility and comfort in environments where impact noise and vibrations can be disruptive to the concentration and well-being of the occupants. We have completely redesigned this product to meet contemporary demands. Its innovative design utilizes technology that mitigates pollution caused by vibro-mechanical energy, which would otherwise be transmitted to adjacent partition walls. This ensures a cleaner and quieter environment, enhancing quality of life and creating more welcoming spaces.
The Model 3800-01 / TD1 + TA features a PATENTED movement control system, allowing the extended metal bracket to operate in both directions, enhancing the axial compression of the polymer. This has reduced airborne noise by more than 16 dBA in an already tried and tested construction system.
Available steel thickness for the extension bracket: 0.8 mm and 1.5 mm.

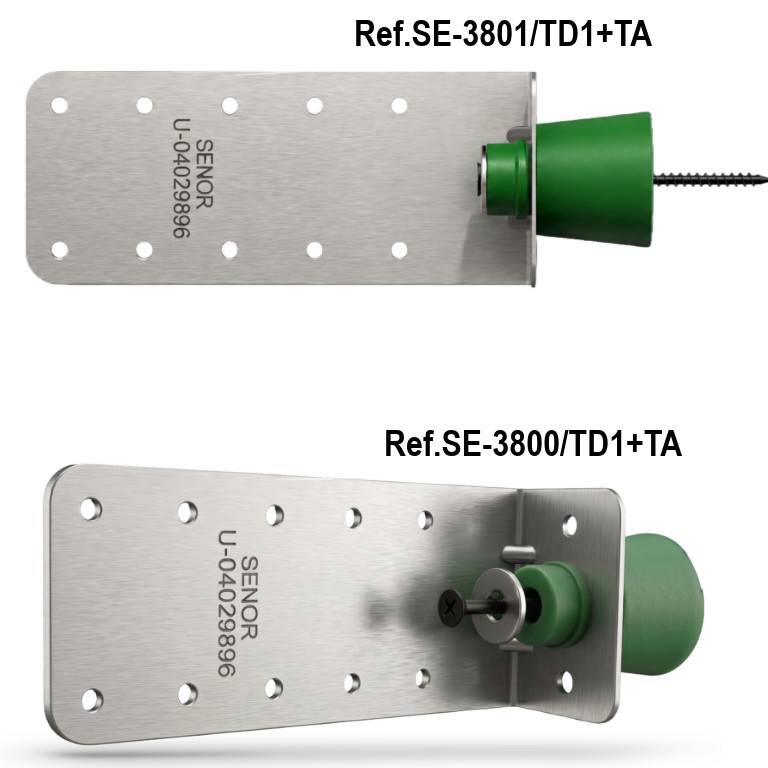

✓ Modelo 3800/TD1 + TA: L-bracket with a thickness of 1.5 mm, providing a significantly MORE ROBUST structure, ideal for use in air cavities exceeding 10 cm. This feature is essential, as the additional thickness allows the system to withstand higher internal pressures, increasing durability and resistance to deformation under load, making it an optimal choice for industrial applications or demanding environments where safety and stability are paramount.
✓ Modelo 3801/TD1 + TA: The L-bracket features an innovative design with a thickness of 0.8 mm, a dimension that provides a perfect balance between durability and flexibility. Now, bending the bracket with your hands is a simpler task than ever! This specific version of the bracket is not only characterized by its bendability, but it can also be easily adjusted to occupy less space, making it the ideal component for working in more compact areas. Its optimized design is especially suitable for air cavities measuring less than 10 cm, allowing for precise installation even in the most restricted environments. An excellent choice for professionals who require a versatile and functional component in their day-to-day operations.
* Load range from 5 to 30 kg for both products.
ANTI-VIBRATION LATERAL WALL MOUNT FOR ACOUSTIC INSULATIONS WITH A SINGLE WALL FIXATION HIGHLIGHTING IT´S SIMPLICITY
Here you can download the installation manual
Installation manual 3800-01 / TD1+TA
Product registered in the Spanish Patents and Trademark Office
Possibility to build wall lining systems with air chambers with several thicknesses
Easy installation
Screw and washer combination ensure the fastening in the event of fire
They avoid vibration transmission. The polymer works both in compression and elongation, that is, in two directions.
Load Range: 5-30 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-3800/TD1 + TA – 24: 24 units
– SE-3800/TD1 + TA – 100: 100 units
– SE-3801/TD1 + TA – 24: 24 units
– SE-3801/TD1 + TA – 100: 100 units
Test Report Nº: B2020-LACUS-IN-122-2 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 23 October 2020
Sample: CHOVA+SENOR SELF-SUPPORTING ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 19.5 cm
Sample Description: Self-supporting wall lining system comprising: SE-3802/03 TD1 dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC-10×100 and SE-BEC-6×100 acoustic strips (SENOR) + 48 mm channels and studs (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 15 mm Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 12.5 mm Plasterboard (KNAUF).
Note: for products 3800 TD1+TA and 3801 TD1+TA the acoustic results obtained in this test is also valid, as they share the same base structure (metal+EPDM) and polymers.
Result: An improvement of 17 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 65 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
ACTUAL PHOTOS
