Model TS-60
HIGHER RUBBER MOUNT WITH RESTRAINT SYSTEM FOR ACOUSTIC FLOORS OR INERTIA BASES
Designed to withstand loads from 35 to 400 kg and made of the polymer: KRAIBURG-TPE – TC/GPN
(Test system according to UNE-EN ISO 10846-1:2009).
– Resonance frequency: 7-15 Hz
It is a RUBBER wall mount for acoustic floors devised to provide quality to any given acoustic system and to eradicate sound frequencies and vibrations.
THE MOUNT FOR HEAVY FLOORS!
Click and move
Patented
The TS-60 model does not change much compared to the TS-80, just slightly taller. Its trapezoidal design, with four indentations towards its interior forming an X-shaped figure, exponentially improves its internal elasticity, providing greater performance in the acoustic field and favouring perfect placement on the ground.
Fourth generation rubber damper recommended for raised floors under reinforced concrete slabs. Its new composition has a higher damping factor than standard polymers (polyurethane, polystyrene, EPDM, etc.)
There are 3 different models depending on load range and colour: Green, Blue and Red
✓ TS-60 V 150 (Load range from 35 – 200 kg)
✓ TS-60 A 280 (Load range from 150 – 280 kg)
✓ TS-60 R 400 (Load range from 270 – 400 kg)
It is recommended with concrete mortar more than 50 mm thickness.
It is a RUBBER mount for concrete floors
Here you can download the installation manual
Product registered in the Spanish Patents and Trademarks Office
It has two control movements stops in its base which allow a better installation on the ground
Easy and fast installation
Excellent soundproofing results in impact noise
Airborne and Impact Noise Soundproofing Test
Standards: UNE-EN ISO 10140-1:2022-Annex G, UNE-EN ISO 10140-2:2022, UNE-EN ISO 10140-1:2022-Annex H, and UNE-EN ISO 10140-3:2022
Laboratory: TECNALIA (Vitoria)
Date: 7 October 2022
Sample: ACOUSTIC CONCRETE FLOOR SAMPLE
Standardized base floor: 150 mm reinforced concrete slab with a density of 375 kg/m²
Total thickness of acoustic floor: 12.6 cm
Sample description: SE-TS-80 V 150 damper (SENOR) + ChovANAPA 4 cm PANEL 600 (ChovA) + SE-BEC-15×170 acoustic strip (SENOR) + 16 mm MDF board + ChovACUSTIC 65 FIELTEX (ChovA) + 60 mm reinforced concrete
Note: The soundproofing results obtained in this test are also valid for the TS-60 product, as both products share the same properties
Airborne noise result: improvement of 13 dB in airborne noise compared to a base floor of 59 dB, achieving a total soundproofing level of 72,3 dB.
Impact noise result: improvement of 37 dB in impact noise reduction according to the UNE-EN ISO 717-2:2021 standard.
Laboratory measurement of airborne sound insulation and impact sound insulation improvement – WITH DAMPERS –
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

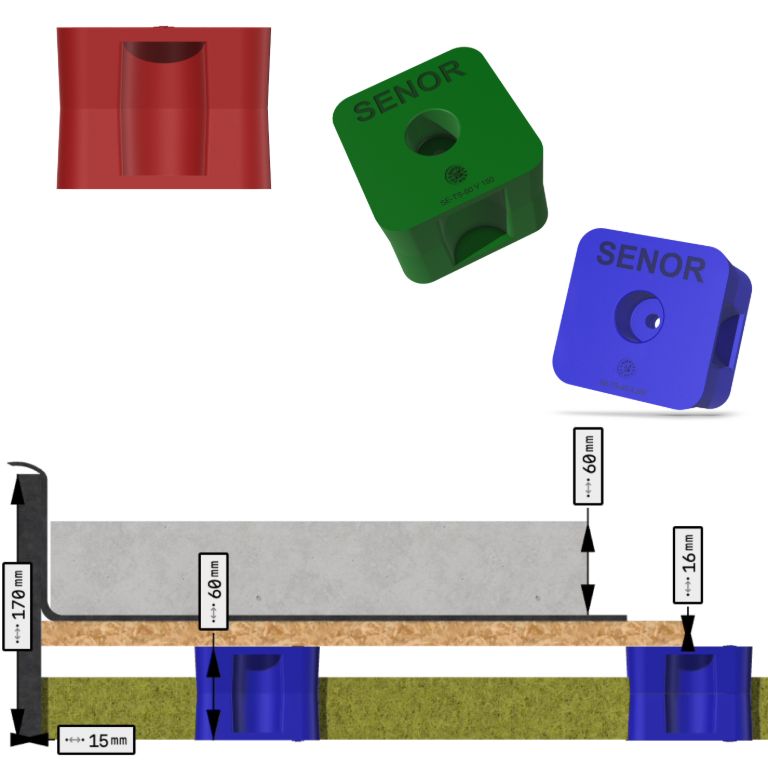

Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample project
SOUNDPROOFING TREATMENT FOR FLOOR FOR A NIGHT CLUB
Soundproofing treatment for floor in a night club. In this case, we recommend the SE-TS 60 R 400 under the existing slab.

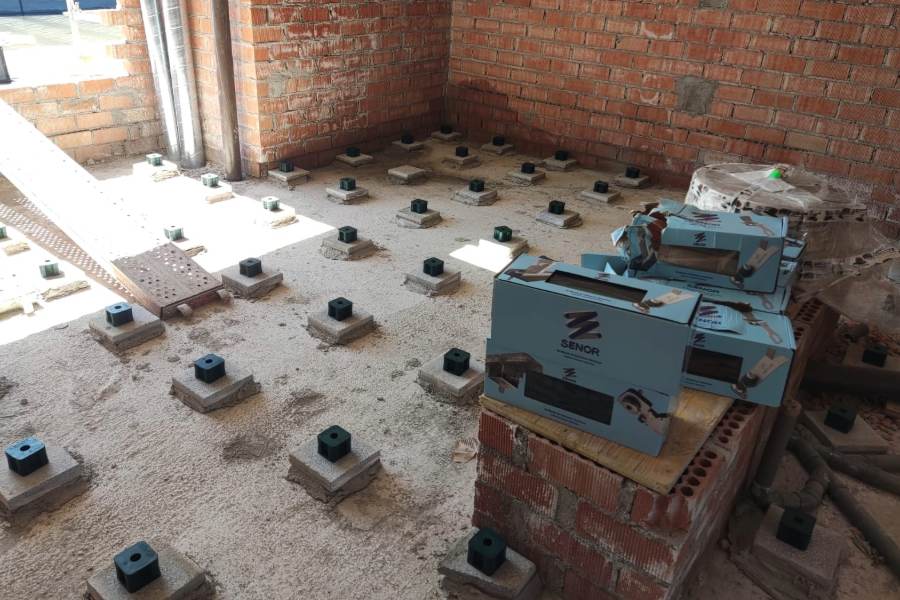

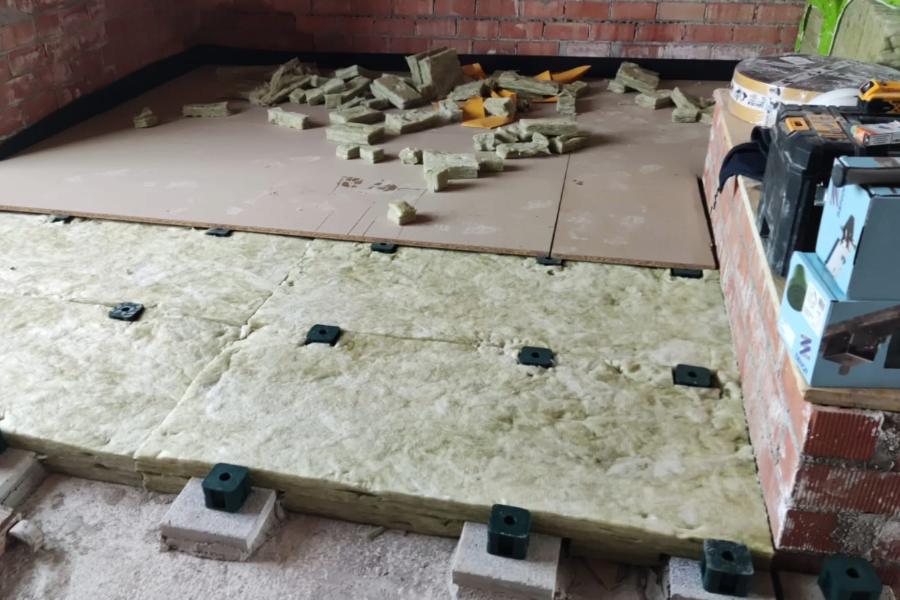

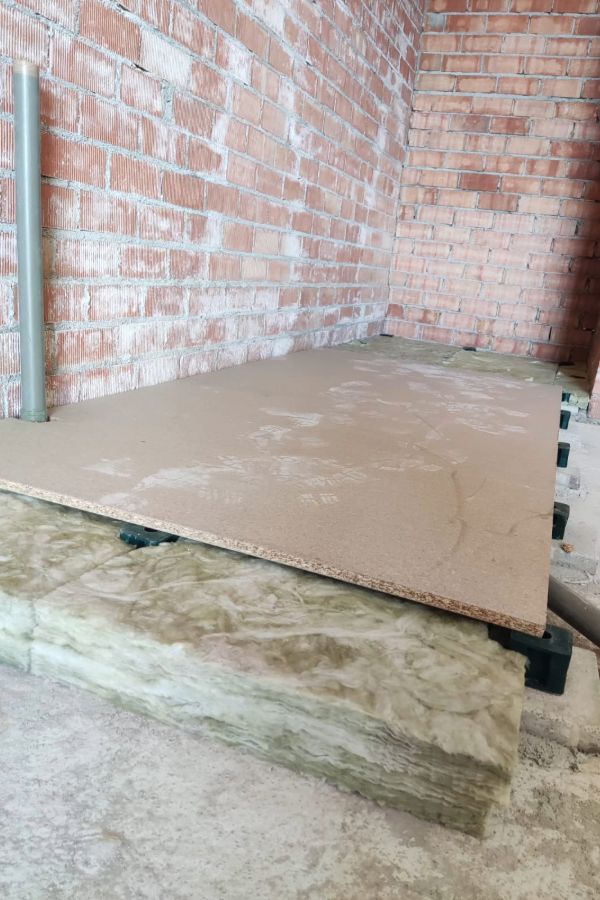

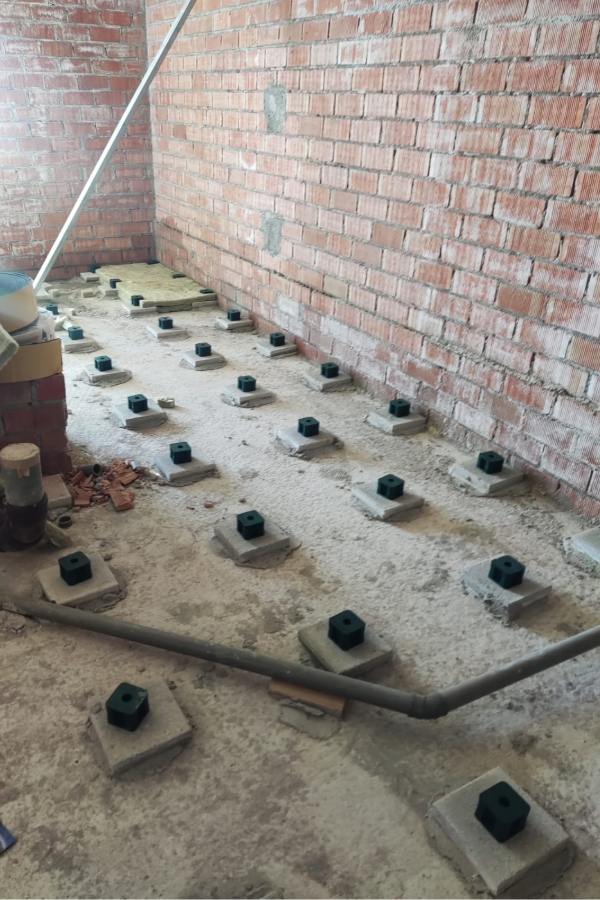

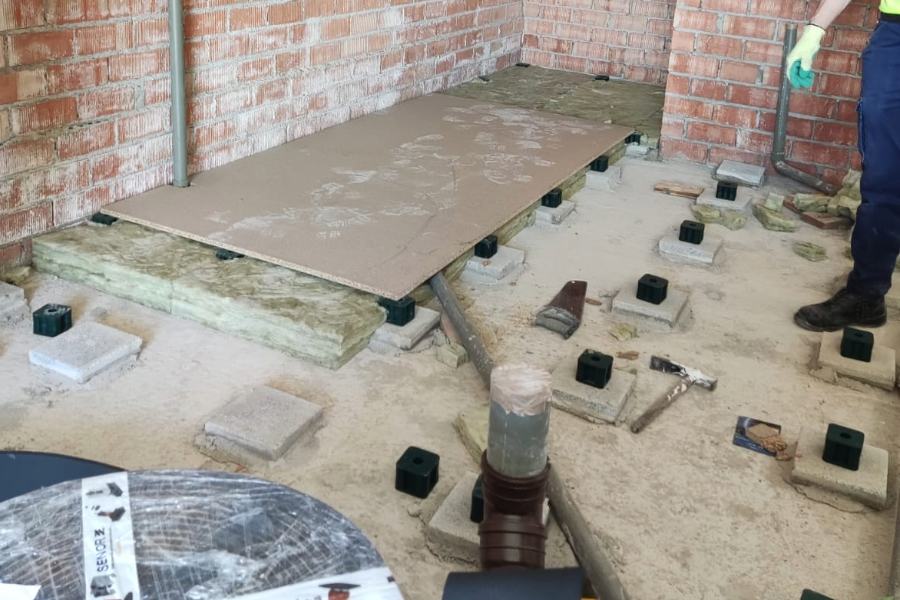

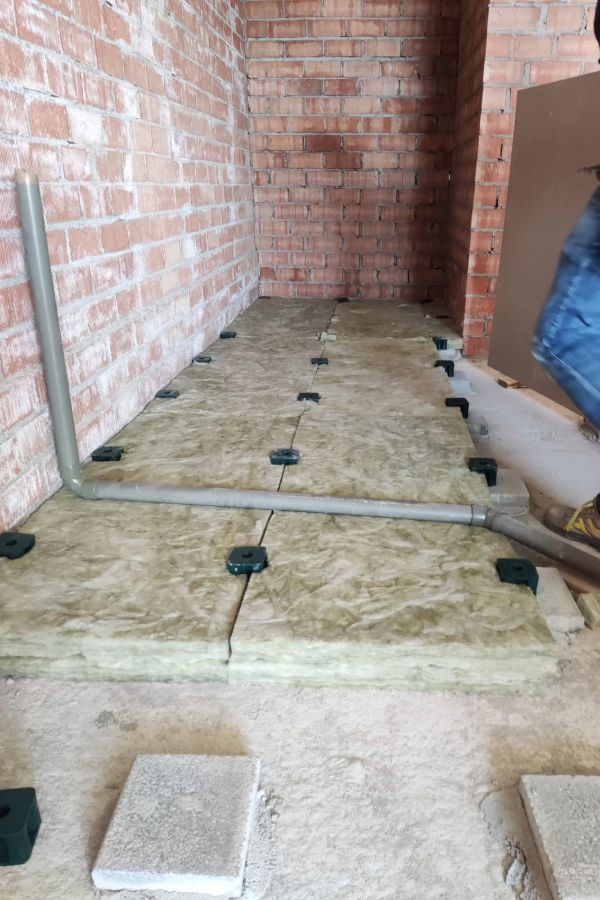

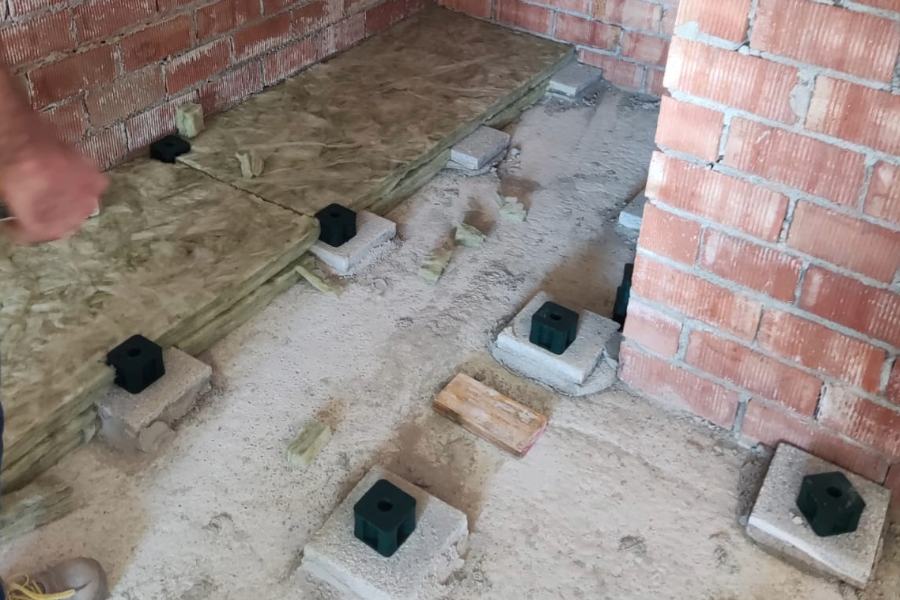

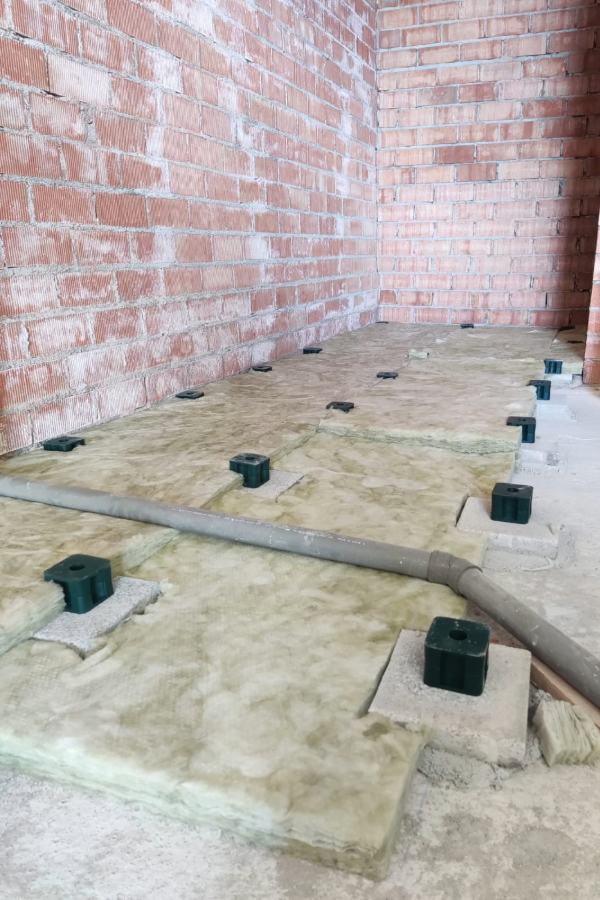

ACTUAL PHOTOS
