The most advanced rubber + steel damper for acoustic ceiling suspension
Model A6/IE

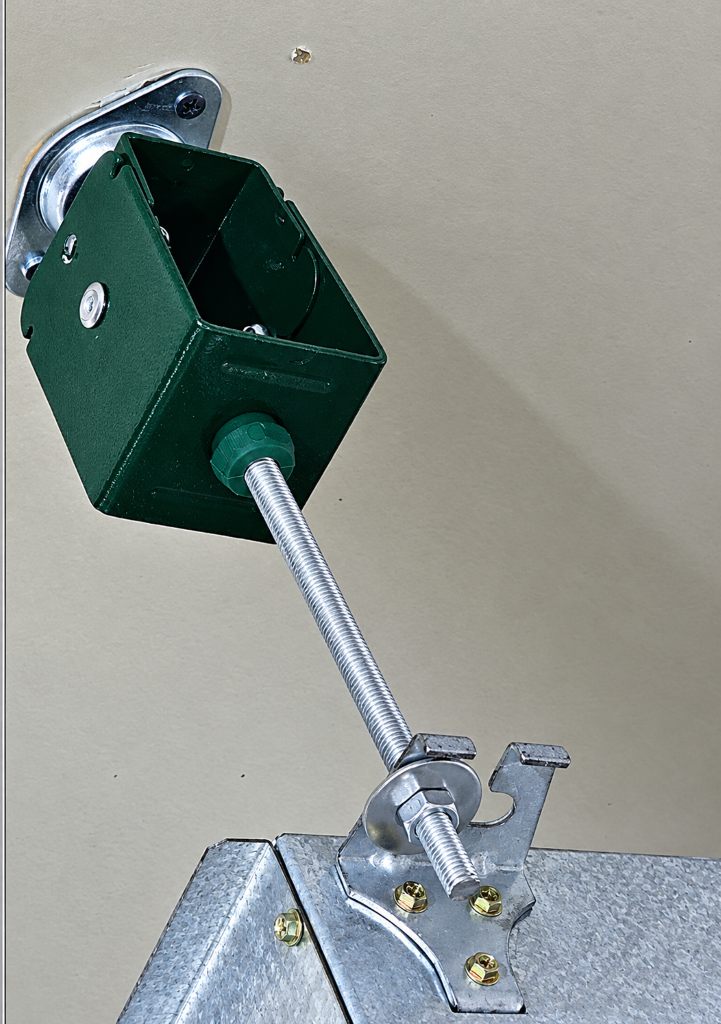

The most advanced direct-to-slab damper for vibration protection with built-in angle corrector.

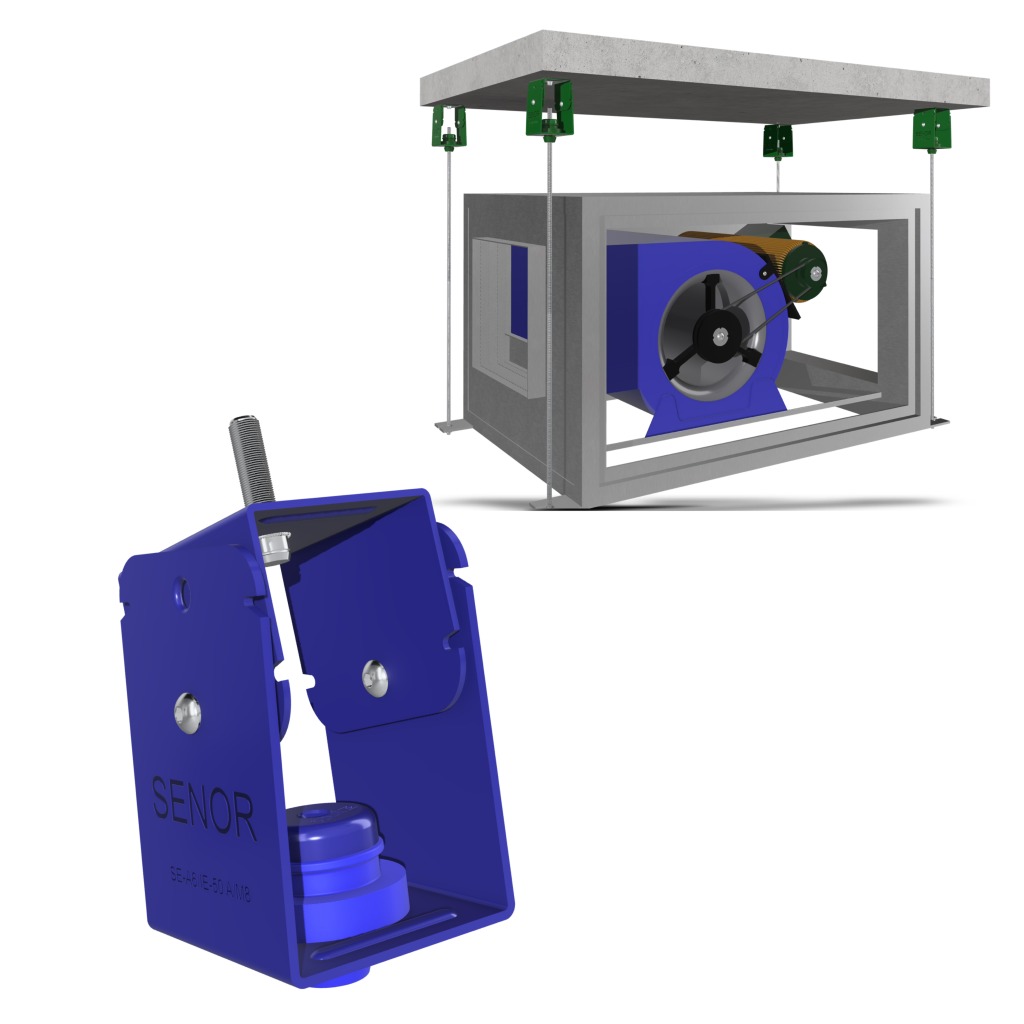

Designed for equipment suspension, with metric output and direct anchoring for maximum space utilisation.
SENOR- A6/IE
Patented

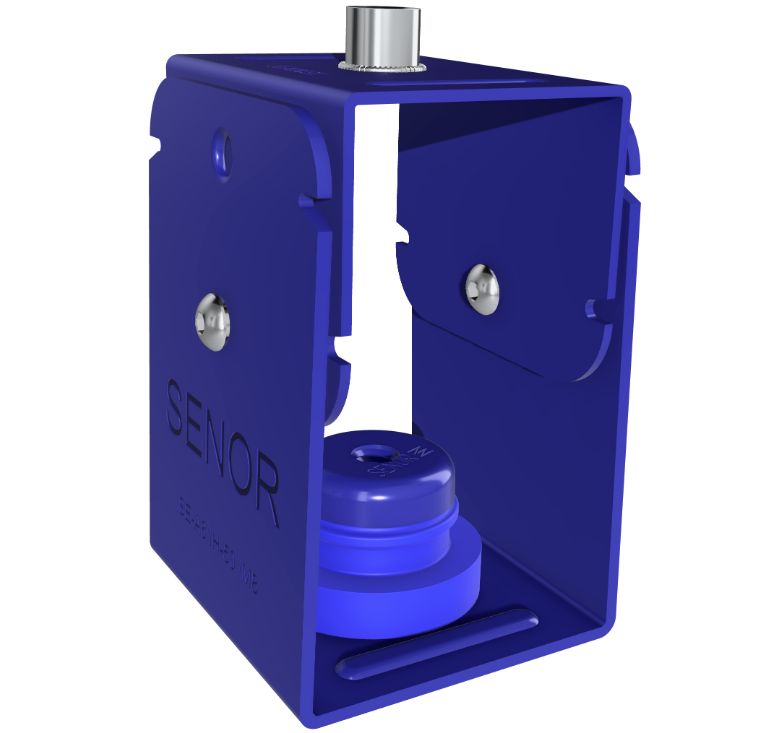

A6/IE incorporates a double swivel ball joint in its metal frame that allows the angle of rotation between the rod and the direct connection to the slab to be adjusted. In addition to ensuring that the compression of the RUBBER is always axial and never torsional, limiting the vector degrees of polymer deformation and thus promoting the good performance of the elastic system.

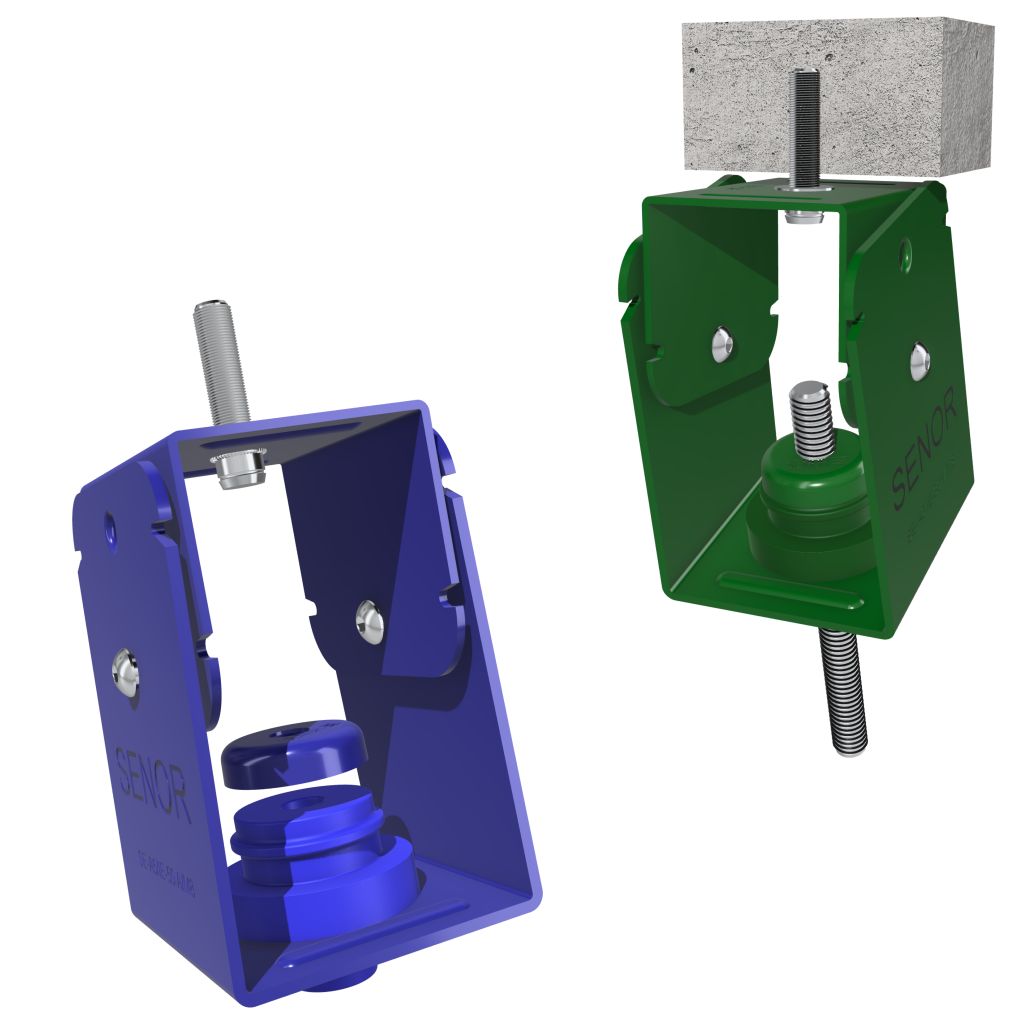

There are two different references depending on load range and colour: Green and Blue
* A6/IE-30 V/M8 (Load range 3 a 25 kg)
* A6/IE 50 A/M8 (Load range 27 a 50 kg)
RUBBER damper with angle corrector
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Incorporates two independent casings so that the piece can be positioned at the desired angle
Simple and easy installation
Load range: 8-30 kg
Load range: 27-50 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-A6/IE-30V/M8
– SE-A6/IE-50A/M8
