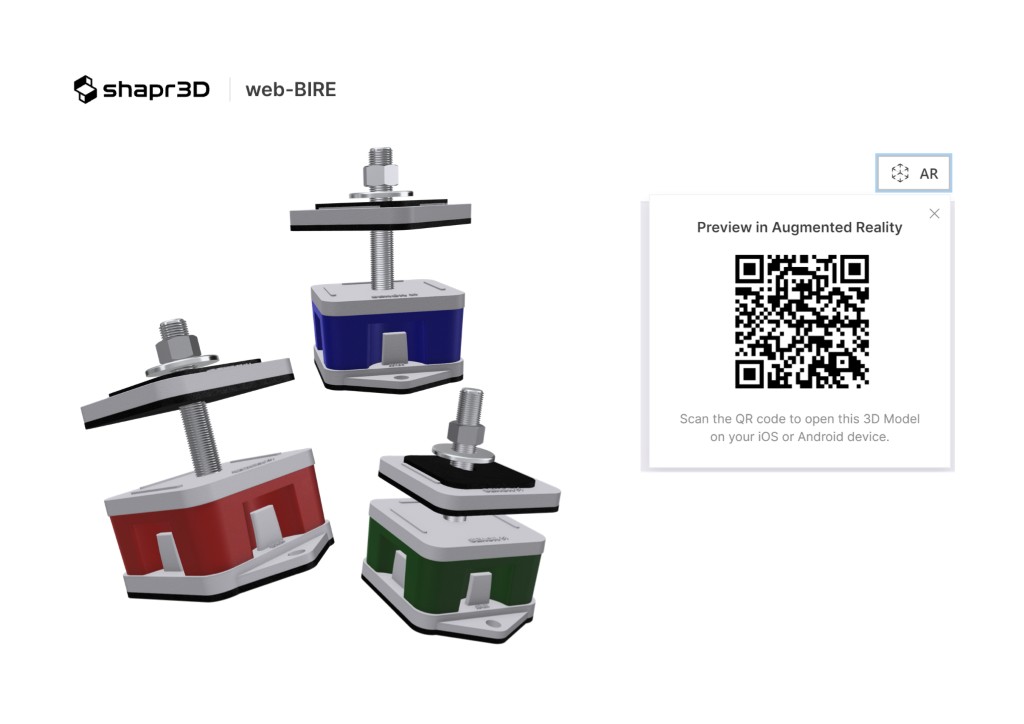

Rubber damper for equipment with floor mounting with fixing base, levelling base and fixing rod
Model BIRE
Designed with an adjustable base at the top that allows for leveling on sloped floors. It has a central rod for securing the equipment at the top with a nut and washer.
SENOR-BIRE
Patented
BIRE are RUBBER damper designed to protect machinery from shock vibrations and impacts in the medium and high frequency range Hz. (Recommended for equipment operating at 1250 rpm or higher).
It has an adjustable upper base, which allows it to be set at different heights for correct leveling of the equipment, and a central shaft that allows complete fastening of the damper and the equipment.
There are three different references depending on load range and color: green, blue, and red.
* BIRE-150 V (Load range 30 – 150 kg)
* BIRE-280 A (Load range 140- 280 kg)
* BIRE-400 R (Load range 250 – 400 kg)
Rubber damper with adjustable upper base and fastening by nut and washer.
Product registered in the Spanish Patents and Trademark Office.
Correction of uneven ground.
Double fastening to the ground for greater safety.
Easy installation.
Available in different sizes: M8, M10 (standard), M12, M14, and M16.
Load range:: 30-150 kg
Load range:: 140-280 kg
Load range:: 250-400 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-BIRE-150 V
– SE-BIRE-280 A
– SE-BIRE-400 R
