SENOR-FTD-MINI 60/TD
Patented
P.T. 202230954
The thinnest wall lining damper for 60 mm profiles

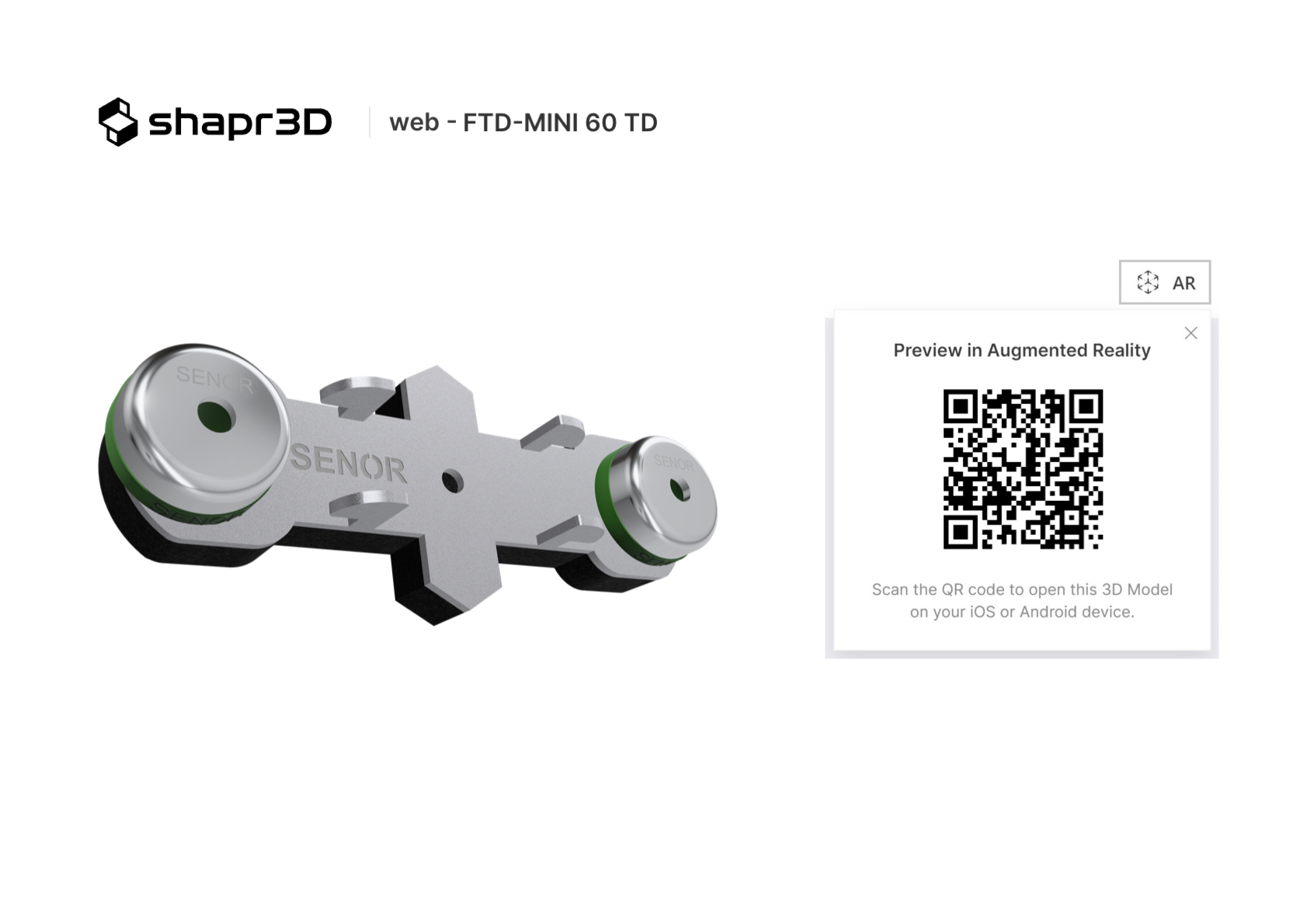

Model FTD-MINI-60/TD
The FTD-MINI-60/TD is a unique damper delivering outstanding acoustic performance for use in acoustic wall linings with TC-60 type profiles. It represents the present and future for limited spaces, achieving airborne noise reductions of over 12 dBA.

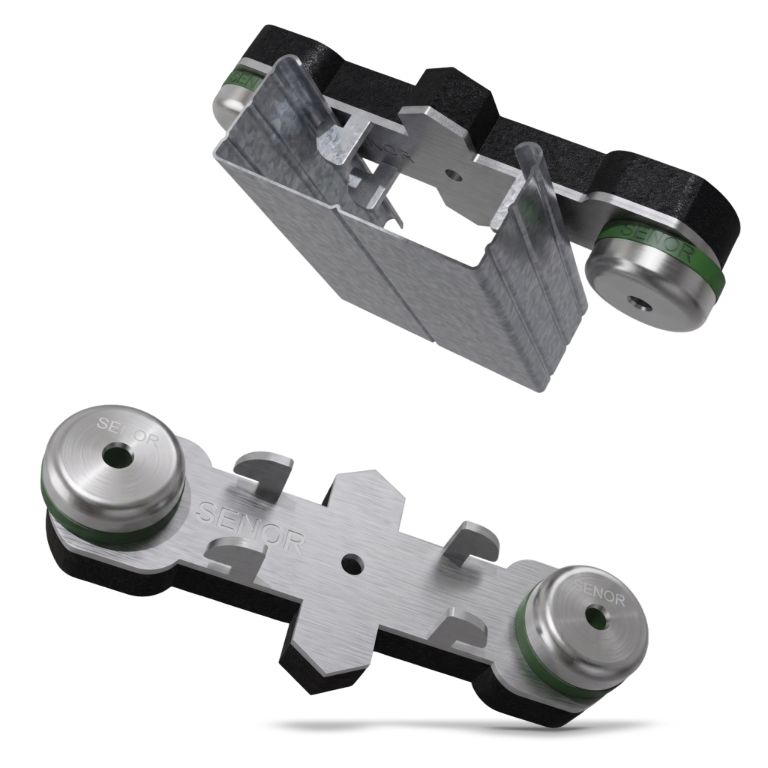

It has the advantage of incorporating the quick-fit system known as CLIP STOP, providing quality, performance and safety for the TC-60-type plasterboard mounting profiles, which are 60 mm wide by 17 mm high.
✓ Available for 60 mm TC-60-type profiles.
✓ s space an issue? The slimmest damper on the market.
* FTD-MINI-60/TD (Load range from 3 to 25 kg)
Insatallation video
THE THINNEST WALL LINING DAMPER FOR VIBRATION PROTECTION USING TC-60 TYPE STEEL PROFILES
Product registered in the Spanish Patents and Trademarks Office
Minimal loss of space when installing acoustic insulation
Quick-lock fastening (clip stop) for ultimate security
Double fastening, fire-resistant thanks to the washers and screws
Provides airborne noise reduction of over 12 dB (system tested in laboratory)
Ultra-fast installation
Provides ELASTICITY to plasterboard systems
Suitable for acoustic ceilings and wall linings
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Breaking point >= 130 kg
Box format:
– SE-FTD MINI-TD/60-C25: 25 uds
Test Report Nº: 110909-620 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2022 and 10140-2:2022
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 15 April 2024
Sample: DANOSA+SENOR DIRECT ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 9 cm

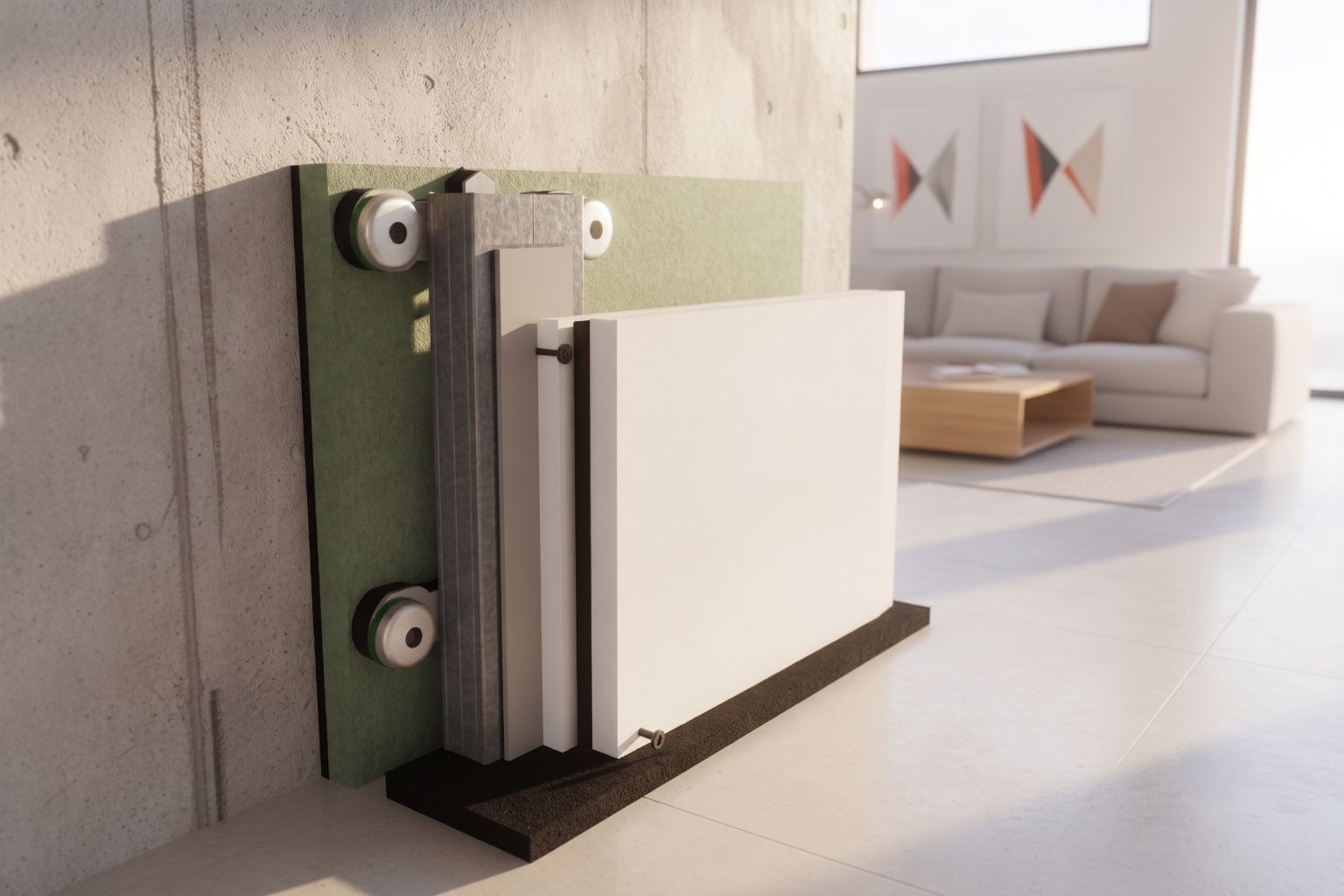

Sample Description: Direct wall lining system comprising: SE-FTD MINI 47 dampers (SENOR) + SE-BEC-8×80 acoustic strip (SENOR) + TC-45/48 profiles (PLACO) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + DANOFON multilayer component (DANOSA) + 12.5 mm Plasterboard (PLACO) + 4 mm M.A.D.4 acoustic membrane (DANOSA) + 12.5 mm Plasterboard (PLACO).
Note: The acoustic results obtained in this test also apply to the FTD-MINI 60/TD product, as both products share the same properties.
Result: An improvement of 12 dB in airborne sound compared to the base wall, which has a rating of 47 dB, resulting in a total soundproofing of 59 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Actual photos
