Rubber damper for equipment with floor mounting with fixing base and levelling base with two stops
Model BIR+PT2
Designed with an adjustable base on the upper part that allows for leveling on sloped floors. It also has two stops that prevent the equipment from moving when placed on its corners.
SENOR-BIR+PT2
Patented
BIR + PT1 are RUBBER damper designed to protect machinery from shock vibrations and impacts in the medium and high frequency range Hz. (Recommended for equipment operating at 1250 rpm or higher).
It has an adjustable upper base, which allows it to be set at different heights for correct leveling of the equipment, and two stops that prevent the equipment from moving when placed on its corners.

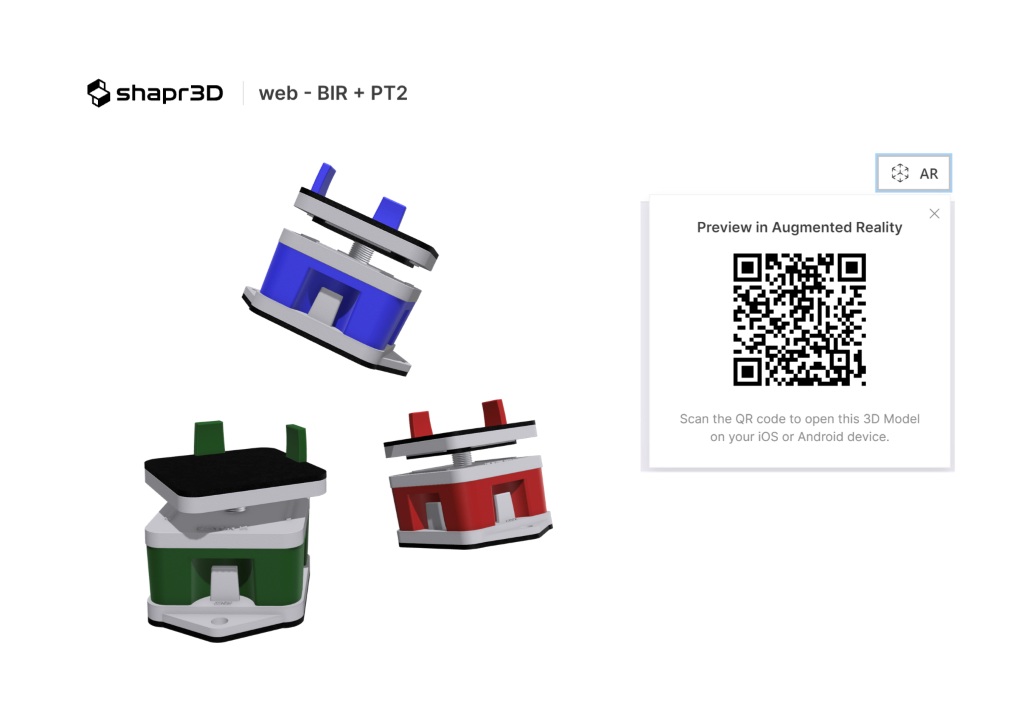

There are 3 references differentiated by load range and color: Green, Blue, and Red.
* BIR-150 V + PT2 (Load range 30 – 150 kg)
* BIR-280 A + PT2 (Load range 140- 280kg)
* BIR-400 R + PT2 (Load range 250 – 400 kg)

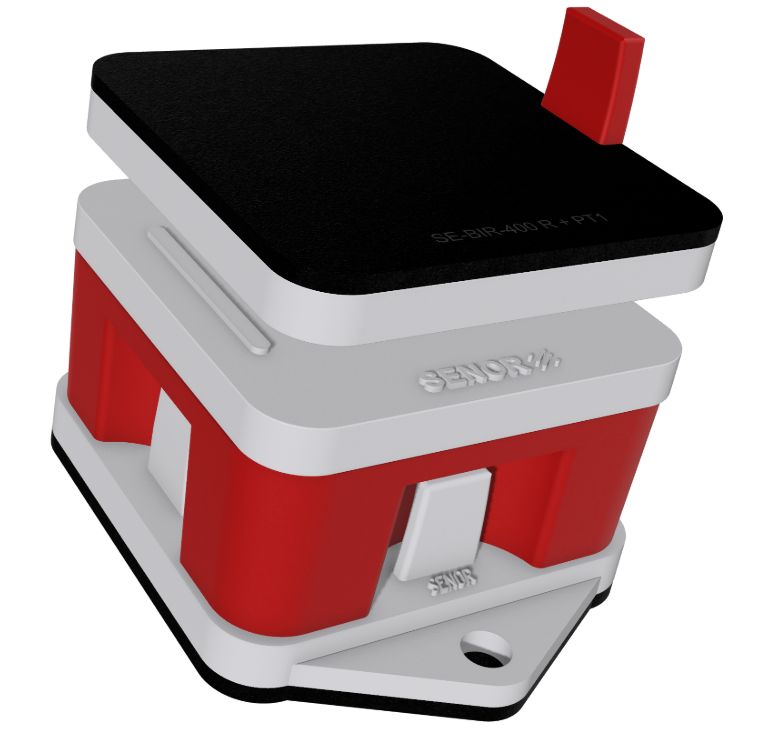

Rubber shock absorber with adjustable upper base and two movement stops
Aqui puedes descargarte su manual de instalación
Manual de instalación BIR + PT2
Producto registrado ante la oficina de patentes y marcas españolas.
Correction of uneven ground
Double fixing to the ground for greater safety
Easy installation
Available in different sizes: M8, M10 (standard), M12, M14, and M16
Load range: 30-150 kg
Load range:140-280 kg
Load range: 250-400 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-BIR-150 V + PT2
– SE-BIR-280 A + PT2
– SE-BIR-400 R + PT2
