Wall Linings and Partitions for Airborne and
Impact Noise in Noisy Activity Premises
SENOR-TAV-500/ 11 R
Video installation of a high-performance acoustic plasterboard partition – cinemas, theaters, pubs, nightclubs, and venues.
Patented

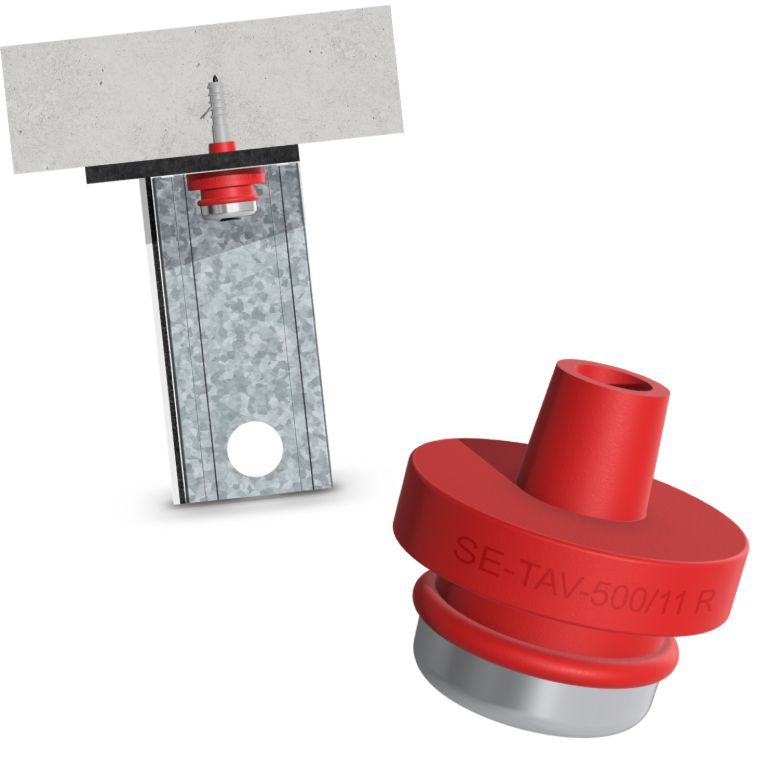

Acoustic Plug designed for the disconnection of the self-supporting structure type C, from the floor slab
Model TAV-500/11 R
We are pleased to introduce the essential acoustic fixing designed to eliminate solid-borne noise pollution. This solution integrates advanced technology featuring a new polymeric component developed by the prestigious German manufacturer KRAIBURG. The material has been precision-engineered to provide greater peace of mind, comfort, and environmental quality in environments where impact noise and vibrations can cause annoyance, impair concentration, or compromise occupant well-being. We have completely redesigned the product to meet contemporary demands for acoustic performance, comfort, and construction quality, delivering an effective solution seamlessly integrated into the fixing system.
Its innovative design incorporates targeted technology to mitigate pollution generated by vibromechanical energy, preventing unnecessary transmission into walls, floor slabs, and other adjacent structural elements. By restricting these transmission paths, the fixing helps break acoustic bridges and reduce structural vibration propagation, fostering cleaner, quieter, and more pleasant spaces. In doing so, it enhances the overall acoustic quality of the environment and delivers a more comfortable experience for building occupants.
The acoustic plug SE-TAV-500/11 R features a PATENTED motion control system that isolates any type of fixing, including the screw, from the rest of the drywall/construction system materials. This controlled separation breaks acoustic bridges and helps eradicate vibromechanical transmission through connection points. As a result, airborne noise has been reduced by more than 16 dBA within a previously tested and certified drywall system—a result that demonstrates its direct contribution to enhancing acoustic comfort and minimizing noise disturbance in the built environment..
The acoustic plug SE-TAV-500/11 R is designed to be placed in top channels. Its function is to improve the acoustic performance of these junctions, promoting adequate separation and reducing the transmission of noise and vibration through the structure. For further information on features, application, and installation conditions, click on “Download technical data sheet”.
- TAV-500/11 R: in upper U-channels.
Installation video
Rubber plug to decouple the screw from the rest of the materials
Product registered in the Spanish Patents and Trademark Office
It avoids vibration transmission between building’s original walls and wall partition or wall lining system
It provides an excellent soundproofing
Together with acoustic rubber strip provides acoustic and thermal sealing to the partition wall or wall lining system.
Together with wall mounts elasticity is obtained using TAV-500/11 and wall mounts for studs
Box format:
– SE-TAV-500/11R-12: 12 units
Test Report Nº: B2021-LACUS-IN-159 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 30 November 2021
Sample: CHOVA+SENOR SELF-SUPPORTING ACOUSTIC WALL LINING – EI120
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 20.2 cm
Sample Description: Self-supporting wall lining system comprising: SE-4800/TDM dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC-10×100 acoustic strip (SENOR) + 48 mm channels and studs (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 25 mm Fireproof Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 25 mm Fireproof Plasterboard (KNAUF)
Note: The soundproofing results obtained in this test are also valid for the TAV/500 11 R product, as both products share the same properties
Result: An improvement of 21 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 70 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Test Report Nº: B2020-LACUS-IN-122-2 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 23 October 2020
Sample: CHOVA+SENOR SELF-SUPPORTING ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 19.5 cm
Sample Description: Self-supporting wall lining system comprising: SE-3802/03 TD1 dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC-10×100 and SE-BEC-6×100 acoustic strips (SENOR) + 48 mm channels and studs (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 15 mm Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 12.5 mm Plasterboard (KNAUF).
Note: The soundproofing results obtained in this test are also valid for the TAV/500 11 R product, as both products share the same properties
Result: An improvement of 17 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 65 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Nº Informe de ensayo: 110924-637 A
Objeto: Ensayo Aislamiento a Ruido Aéreo
Normas: UNE-EN ISO 10140-2:2022
Laboratorio: TECNALIA (Vitoria)
Fecha: 14 – JUNIO – 2024
Muestra: TABIQUE ACÚSTICO CON MÁXIMA ESTANQUEIDAD URSA+SENOR
Dimensiones de la muestra: 3,6 m de largo x 2,8 m de ancho = 10,08 m²
Masa estimada: 41 kg/m²
Espesor total del tabique: 11 cm
Descripción de la muestra: tabique acústico con estructura auto-portante simple formado con amortiguadores SE-TMT-50 R (SENOR) + tapones acústicos SE-TAV-500/11A y 11R (SENOR) + banda acústica SE-BEC (SENOR) en todo el perímetro + canales y montantes de 48 mm (KNAUF) + banda desolidarizadora SE-MONT-BICAPA-40 (SENOR) a ambos lados + lana mineral TERRA PLUS 32 (URSA) + 2 PYL standard de 12,5 mm (KNAUF) a cada lado + lámina acústica M.A.D.4 en uno de los lados entre las placas
Note: The soundproofing results obtained in this test are also valid for the TAV/500 11 R product, as both products share the same properties
Resultado: 42 dB de aislamiento total
Nº Informe de ensayo: 110923-638 A
Objeto: Ensayo Aislamiento a Ruido Aéreo
Normas: UNE-EN ISO 10140-2:2022
Laboratorio: TECNALIA (Vitoria)
Fecha: 19 – JUNIO – 2024
Muestra: TABIQUE ACÚSTICO CON PÉRDIDA DE ESTANQUEIDAD URSA+SENOR
Dimensiones de la muestra: 3,6 m de largo x 2,8 m de ancho = 10,08 m²
Masa estimada: 41 kg/m²
Espesor total del tabique: 11 cm
Descripción de la muestra: tabique acústico con estructura auto-portante simple formado con amortiguadores SE-TMT-50 R (SENOR) + lengüetas SE-BEC (SENOR) de 7 cm + tapones acústicos SE-TAV-500/11A y 11R (SENOR) + banda acústica SE-BEC (SENOR) en laterales y techo + canales y montantes de 48 mm (KNAUF) + banda desolidarizadora SE-MONT-BICAPA-40 (SENOR) a ambos lados + lana mineral TERRA PLUS 32 (URSA) + 2 PYL standard de 12,5 mm (KNAUF) a cada lado + lámina acústica M.A.D.4 en uno de los lados entre las placas
Note: The soundproofing results obtained in this test are also valid for the TAV/500 11 R product, as both products share the same properties
Resultado: 26 dB de aislamiento total
Test report Nº: 086146-001
Objetive: Fire Resistance Test
Quality Standars: EN 1363-1:2020, EN 1364-1:2015 y EN 13501-2:2016
Laboratory: TECNALIA (Azpeitia – Guipúzcoa)
Date: 23 October 2020
Sample: SENOR+CHOVA EI120 SELF-SUPPORTING ACOUSTIC WALL LINING
Samples dimensions: 3 m width x 3 m height
Test duration: 149 minutes. An insulation failure occurs at minute 140 and an integrity failure occurs at minute 148.
Description of the sample: self-supporting acoustic wall lining formed with dampers SE-4800/TDM (SENOR) + dampers SE-TAV-500/11A and 11R (SENOR) + acoustic band SE-BEC-6×100 and SE-BEC- 10×100(SENOR) + 48 mm channels and studs + 4 cm CHOVANAPA absorbent material (CHOVA) + 25 mm fire-retardant PYL (KNAUF) + 4 mm VISCOLAM 65 acoustic plate (CHOVA) + 25 mm fire-retardant PYL (KNAUF)
Field of direct application (changes or variants permitted):
– WIDTH: unlimited
– HEIGHT: up to 1 metre longer than the test sample, that is, up to 4 metres.
– Further permitted variants are listed in the Classification Report.
Note: The soundproofing results obtained in this test are also valid for the TAV/500 11 R product, as both products share the same properties
Result: Fire resistance classification: EI120 E120
Fire resistance test according to EN 1364-1:2015
Qualification fire resistance test according to EN 13501-2:2016
Sample Project
INSTALLATION CERTIFICATION – ACOUSTIC PARTITION
Constructive detail
