Hybrid damper with floor support for semi-industrial machines
Model TBM/IX
SENOR-TBM/IX
Patented
TBM/IX damper units offer enhanced concentrated performance. Their mixed composition provides the best of both worlds: the properties of steel helical springs and the damping power of polymers. The combination of these two components has made it possible to bring a unique damper unit to market, preventing the propagation of waves through the structure and reducing vibrations across the entire range of excitation frequencies.

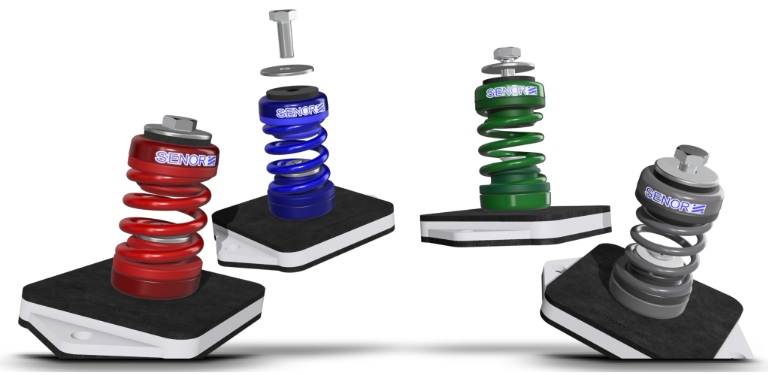

There are four different references differentiated by load range and colour: Grey, Green, Blue and Red
* TBM/IX 20 G/M8 (Load range 3 – 20 kg)
* TBM/IX 45 V/M8 (Load range 15 – 45 kg)
* TBM/IX 75 A/M8(Load range 30- 75 kg)
* TBM/IX 120 R/M8 (Load range 60 – 120 kg)

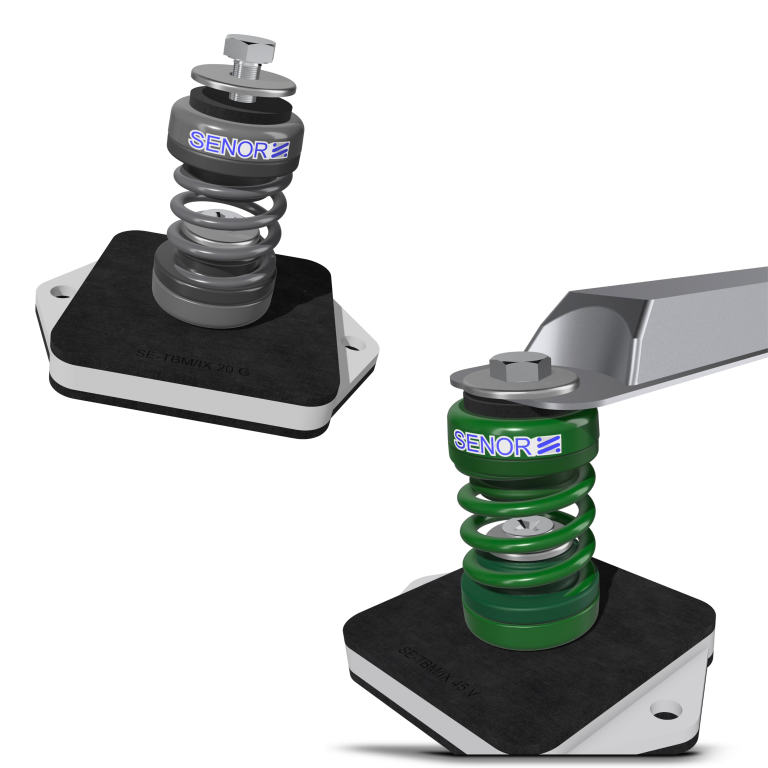

Damper for semi-industrial machines with floor support.
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Its hybrid spring+rubber system covers a wider frequency range.
Quick and easy installation without additional accessories.
Load range: 3-20 kg
Load range: 15-45 kg
Load range: 30-75 kg
Load range: 60-120kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TBM/IX 20 G/M8
– SE-TBM/IX 45 V/M8
– SE-TBM/IX 75 A/M8
–SE-TBM/IX 120 R/M8
