Rubber damper for equipment with floor mounting with fixing base and levelling base with lateral side stop
Model BIR+PT1
Designed with an adjustable base on the upper part that allows for leveling on sloped floors. It also has a stop that prevents the equipment from moving sideways.
SENOR-BIR+PT1
Patented
BIR + PT1 are RUBBER damper designed to protect machinery from shock vibrations and impacts in the medium and high frequency range Hz. (Recommended for equipment operating at 1250 rpm or higher).
It has an adjustable upper base, which allows it to adapt to different heights for correct leveling of the equipment, and a stop that prevents lateral displacement.

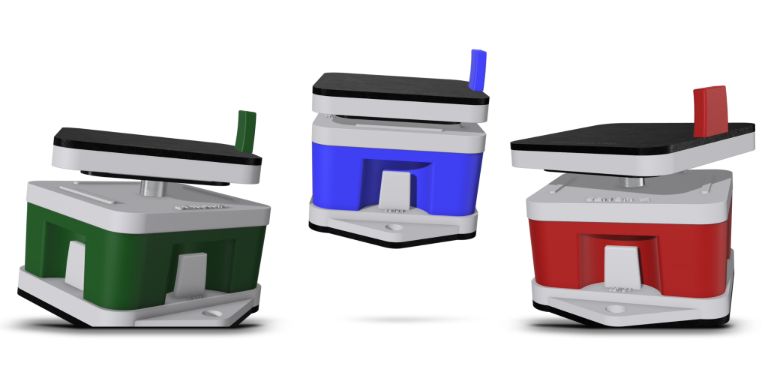

There are 3 references differentiated by load range and color: Green, Blue, and Red.
* BIR-150 V + PT1 (Load range 30 – 150 kg)
* BIR-280 A + PT1(Load range 140- 280kg)
* BIR-400 R + PT1 (Load range 250 – 400 kg)
Rubber damper with adjustable upper base and movement stop
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Correction of uneven ground
Double floor mounting for greater safety
Easy installation
Available in different sizes: M8, M10 (standard), M12, M14, and M16
Load range: 30-150 kg
Load range:140-280 kg
Load range:250-400 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-BIR-150 V + PT1
– SE-BIR-280 A + PT1
– SE-BIR-400 R + PT1
