Patented

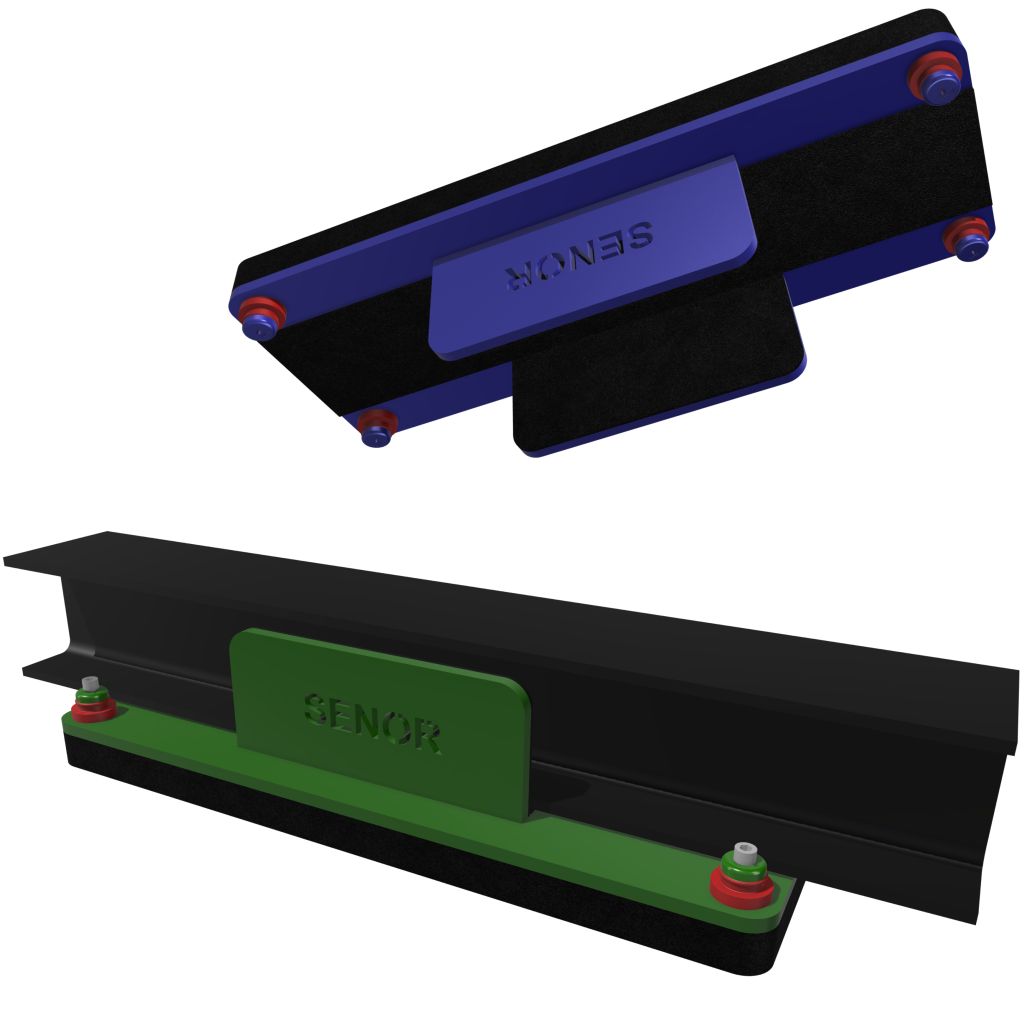

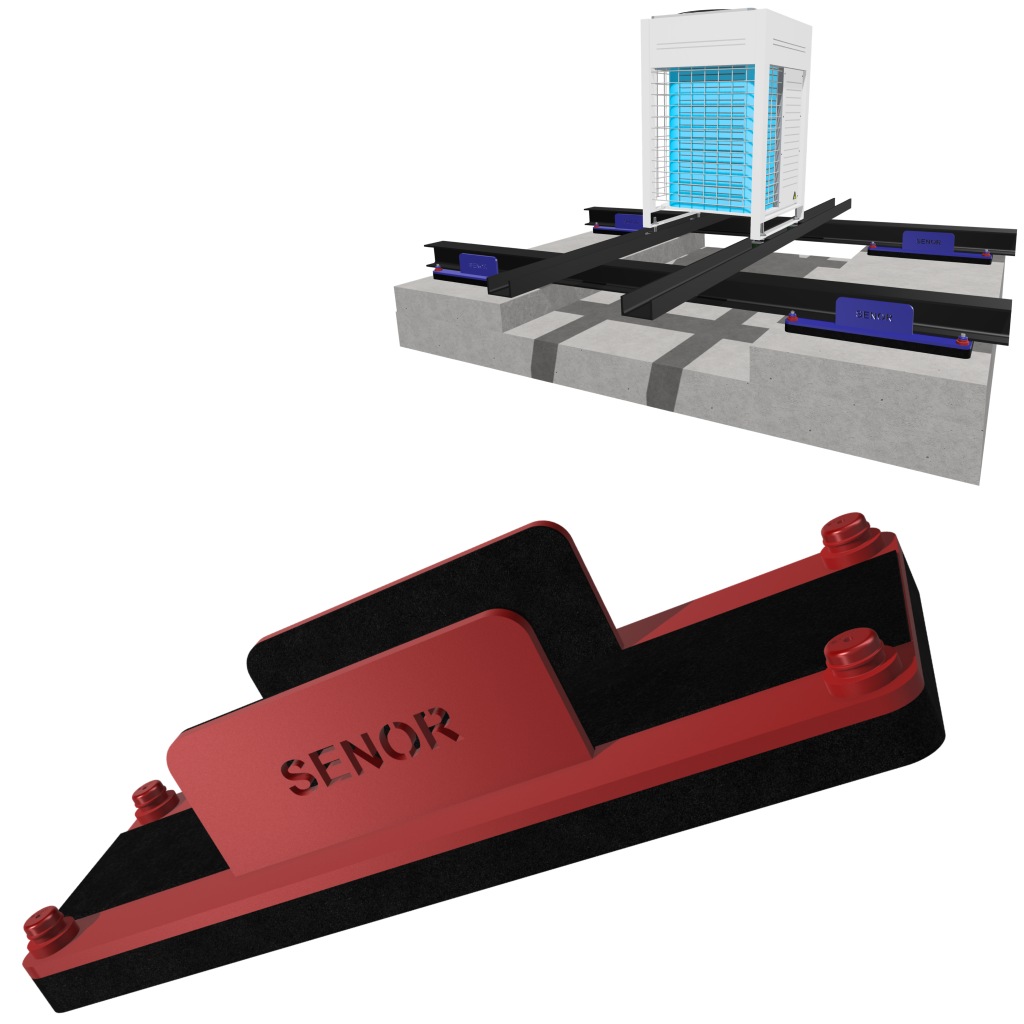

PFT-1000 ADAPTA are isolators made of cutting-edge carbon steel plates and KRAIBURG-TPE polymers. They enable the decoupling and isolation of all types of auxiliary structures from the architectural areas of a building.

This range offers great versatility as it can be custom-made to meet the specific requirements of the context in which it is to be integrated. It features attachment or fastening flaps to ensure the secure attachment of the element to be contained.

✓EPDM SHEET CR-140/BEC-10; provides a perfect seat with the original wall whilst offering a high degree of vibration insulation in the medium frequency range (Hz).

✓ Polymer: KRAIBURG-TPE (Testing system in accordance with standard UNE-EN ISO 10846-1:2009)

✓Resonance frequency: 7-15 Hz.

There are currently several standard variants: Green, Blue and Red

* PFT-1000/ADAPTA 450 V (Load range 100 – 450 kg)

* PFT-1000/ADAPTA 800 A (Load range 350 – 800 kg)

* PFT-1000/ADAPTA 1400 R (Load range 800 – 1400 kg)

These are the standard variants, but they can be manufactured to the dimensions and weights required by the customer.
