Most advanced hybrid damper for suspending equipment with structure
Model TAV-6000
THE DIRECT DAMPER DESIGNED TO ERADICATE SOLID-BORNE CONTAMINATION TO THE EXISTING FLOOR SLAB
You will be amazed by its performance!
Ideal for suspending air conditioning equipment and metal structures.
SAY NO TO NOISE!
SENOR-TAV-6000
Patented

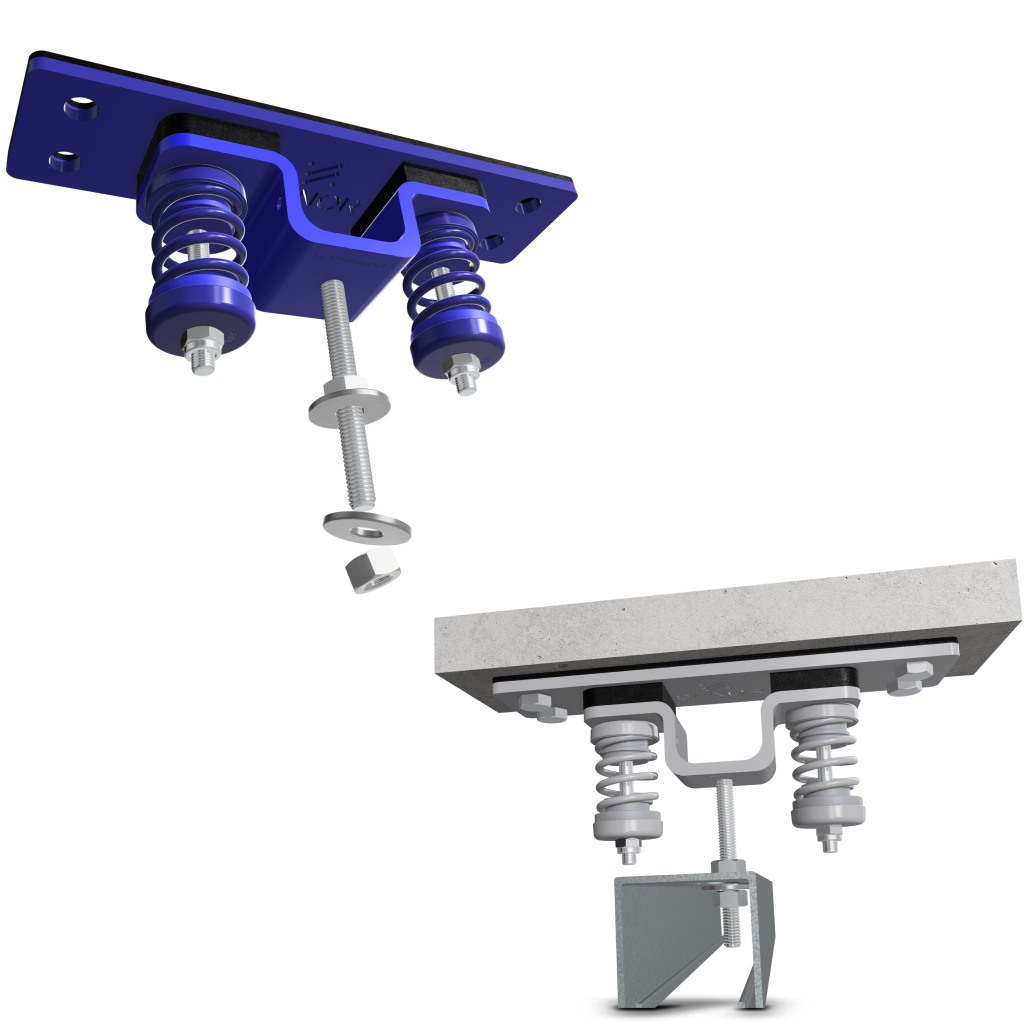

TAV-6000 is a unique insulator that stands out for its simplicity. Manufactured with two metal springs in accordance with DIN 2095-UNE EN 10270, with EPOXY treatment and combined at their ends by renewed polymers that provide greater performance in the vibratory field and give the system a high degree of insulation against vibrations in the medium/high frequency range (Hz).
The steel coil provides a high degree of vibration isolation in the low/medium frequency range (Hz). It also incorporates a PATENTED motion and translation control system, with incredible, TESTED results.

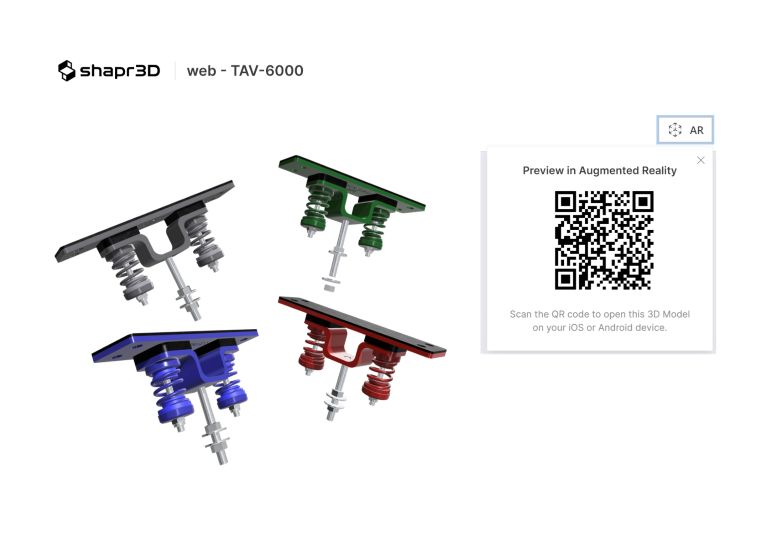

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
* TAV-6000/40 G (Load range 6 a 40kg)
* TAV-6000/90 V (Load range 30 a 90kg)
* TAV-6000/150 A (Load range 60 a 150kg)
* TAV-6000/240 R (Load range 120 a 240kg)
High-performance RUBBER and SPRING damper
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Easy installation
Adjustable to different heights
Hybrid system
Load range: 6-40 kg
Load range: 30-90 kg
Load range: 60-150 kg
Load range: 120-240 kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TAV-6000/40 G
– SE-TAV-6000/90 V
– SE-TAV-6000/150 A
– SE-TAV-6000/240 R
