The most advanced rubber + steel damper for the suspension of acoustic ceilings


Modell A6/HC

RUBBER DAMPER WITH DOUBLE METRIC OUTPUT AND ANGLE CORRECTION OPTION

It is a different and renewed high performance RUBBER damper,. Manufactured with the most advanced technology and designed for the installation of acoustic suspended ceilings using galvanised steel profiles or similar.

IMPERFECTIONS IN THE STRUCTURE ARE NO LONGER A PROBLEM!

click_and_collect_icon

Click and move

Patented

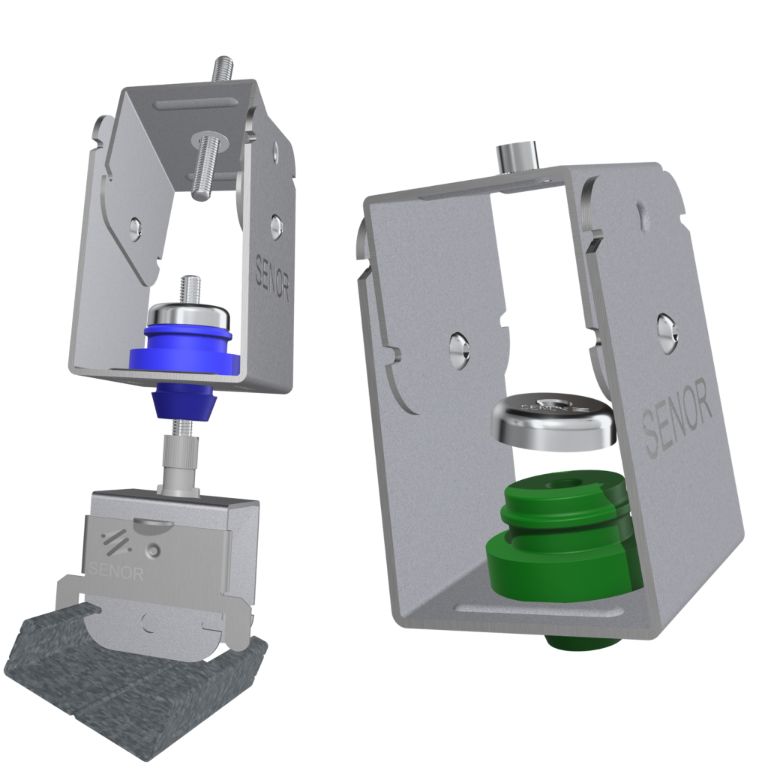

A6/HC incorporates a double rotating option in its metallic frame and allows the angle of rotation to be adjusted between the two independent rods. In addition, it guarantees that the compression of the RUBBER is always axial and never torsional, limiting the vectorial degrees of deformation of the polymer and thus favouring the good performance of the elastic system.

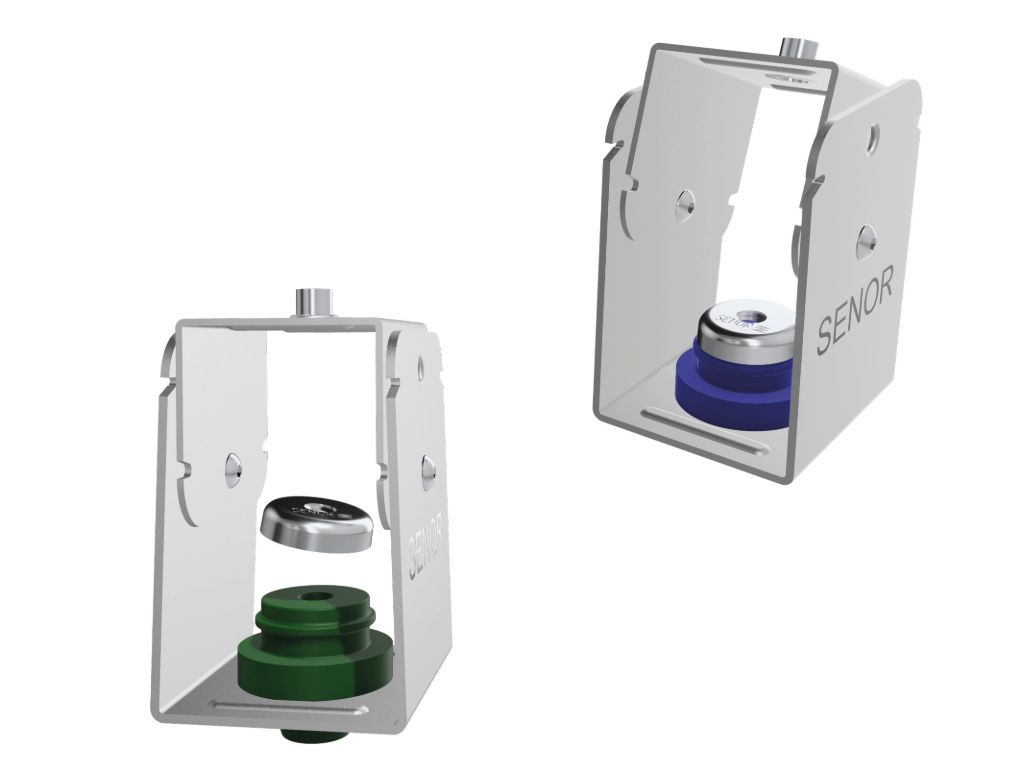

There are 2 references differentiated by load range and colour: Green and Blue.

✓ A6/HC 30 V (Load range from 3 up to 25 kg)

✓ A6/HC 50 A (Load range from 20 up to 45 kg)

Rubber hanger for acoustic ceilings

descargar Data Sheet A6/HC


Here you can download the installation manual

descargar Installation manual A6/HC

Product registered in the Spanish Patents and Trademarks Office

It has two locking holes to place the hanger in the angle you need

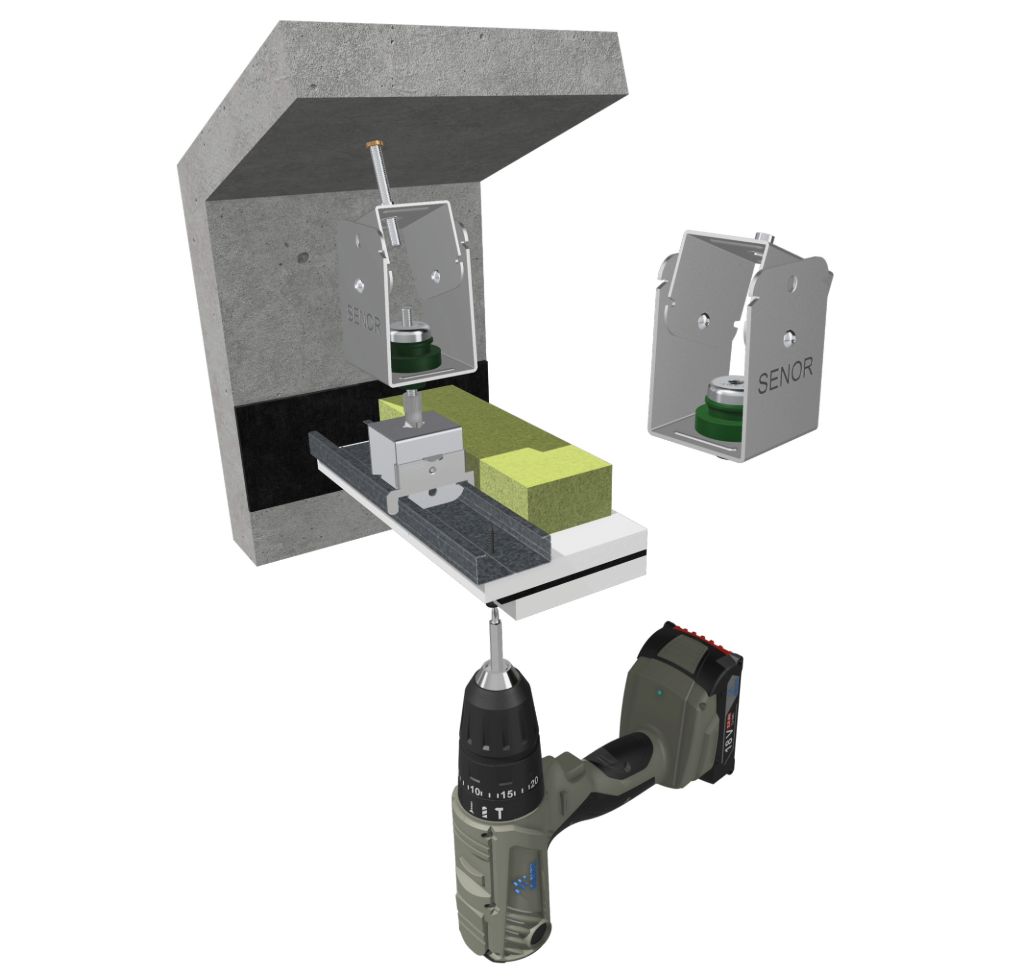

Easy installation in the ceiling channel

Without screws

Fast levelling

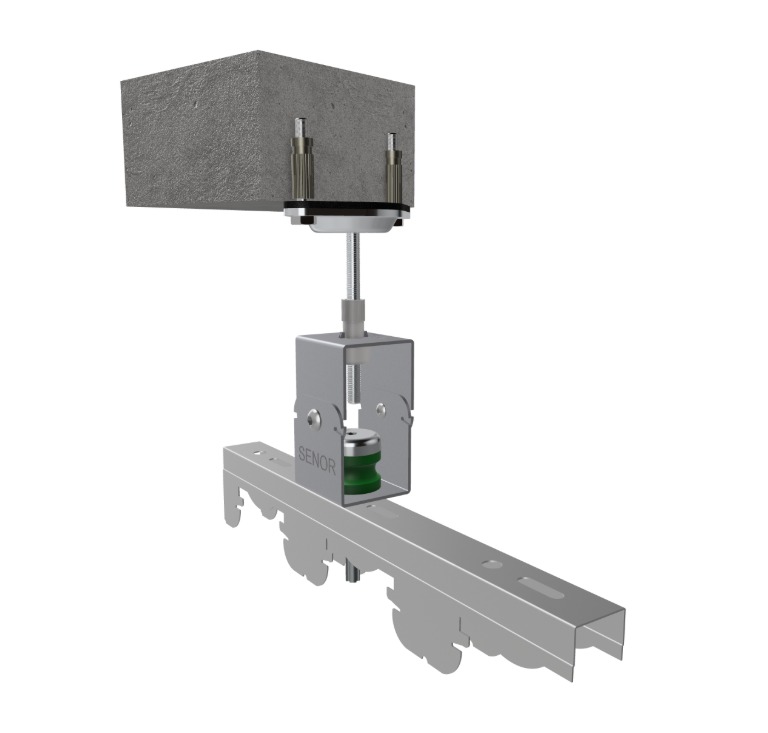

Constructive detail

With our interactive video you can ask us what you need, we will answer you as soon as possible!


Sample project

—–

Need more help?

WE WILL BE IN TOUCH WITH YOU AS SOON AS POSSIBLE

    Allowed Files: PDF, DOC, DOCX, ODT
    Maximum File Size: 2MB

    This site is protected by reCAPTCHA and the Privacy Policy and Terms of Service of Google.

    Related products

    CERTIFICATE ISO 9001

    SENOR guarantees through its international certificate that we comply with quality standards, being an organization with an effective quality management system, identifying areas for improvement and taking measures to progress in them. Our goal is to provide the best service to our customers.

    +

    Designed for acoustic ceiling
