Acoustic insulator for the floating suspension of suspended ceilings or partition walls built with C-type profiles
Model TP-80
LATEST-GENERATION DAMPERS WITH AN EXCLUSIVE DESIGN FOR SUPPORTING ACOUSTIC PARTITION WALLS OR ACOUSTIC WALL LININGS.
Acoustic support designed to secure and decouple horizontal floor profiles (channels) in plasterboard structures, ensuring efficient, vibration-free installation on uneven floors. Insulator suitable for channels 70 mm wide or wider.
Available in three models to accommodate loads between 35 and 400 kg thanks to KRAIBURG-TPE polymer
THE DEFINTIVE DAMPER FOR WALL LININGS OR HEAVY PARTITION WALLS!
SENOR-TP-80
Patented
The TP-80 incorporates two PATENTED movement and translation control stops in its base. Its trapezoidal design, with four inward-facing notches forming an X-shape, exponentially improves its internal elasticity, delivering superior acoustic performance and ensuring perfect settlement on the ground
Special acoustic insulator for supporting partition walls. It features a 0.8 mm thick metal plate at the top to secure the channel to the insulator using screws, rivets or a nail gun.
Designed for channels 70 mm wide or wider. For 48 mm channels, the TMT-50R is recommended

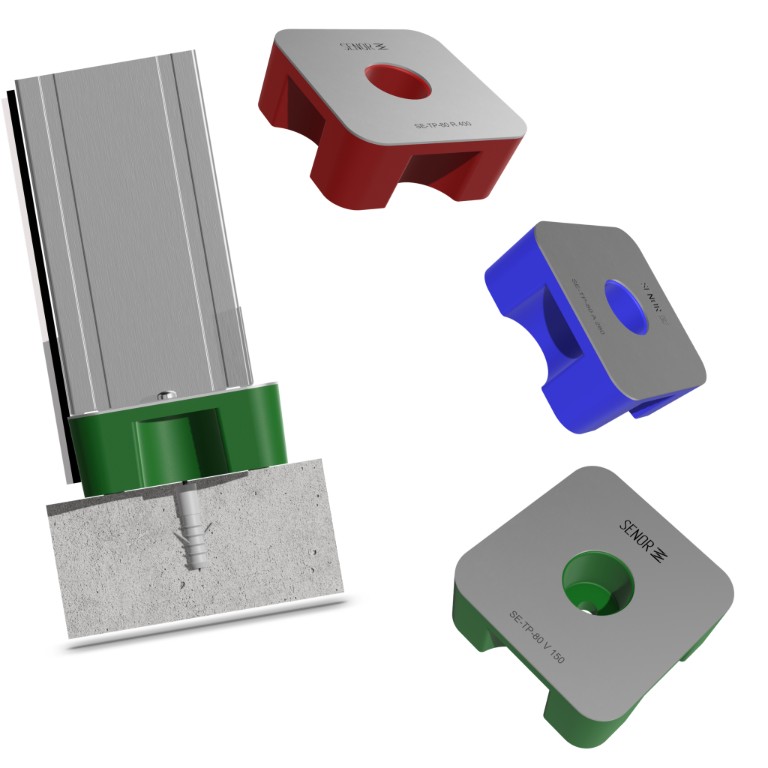

There are 3 references differentiated by load range and colour: Green, Blue and Red
* TP-80 V 150 (Load range 35 – 200 kg)
* TP-80 A 280 (Load range150 – 280 kg)
* TP-80 R 400 (Load range 270 – 400 kg)
Acoustic support for securing and decoupling the structural profiles of acoustic wall linings and partitions
Product registered in the Spanish Patents and Trademarks Office
Its design ensures a perfect fit on the ground
Features two movement control stops at the base
Quick and easy to install
Load range: 35-200 kg
Load range: 150-280 kg
Load range: 270-400 kg
Resonance Frequency: 7 – 15 Hz
Box format:
– SE-TP-80/V 150-50: 50 units
– SE-TP-80/V 150-16: 16 units
– SE-TP-80/A 280-50: 50 units
– SE-TP-80/A 280-16: 16 units
– SE-TP-80/R 400-50: 50 units
– SE-TP-80/R 400-16: 16 units

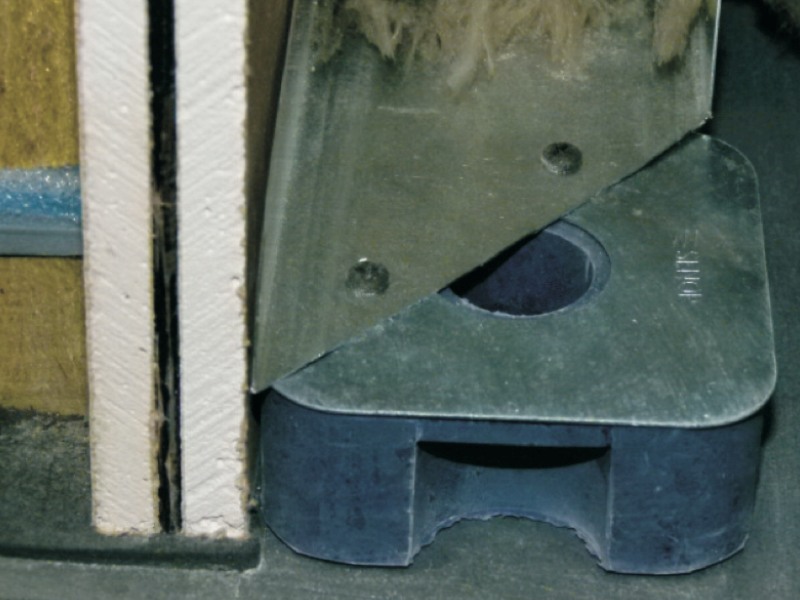

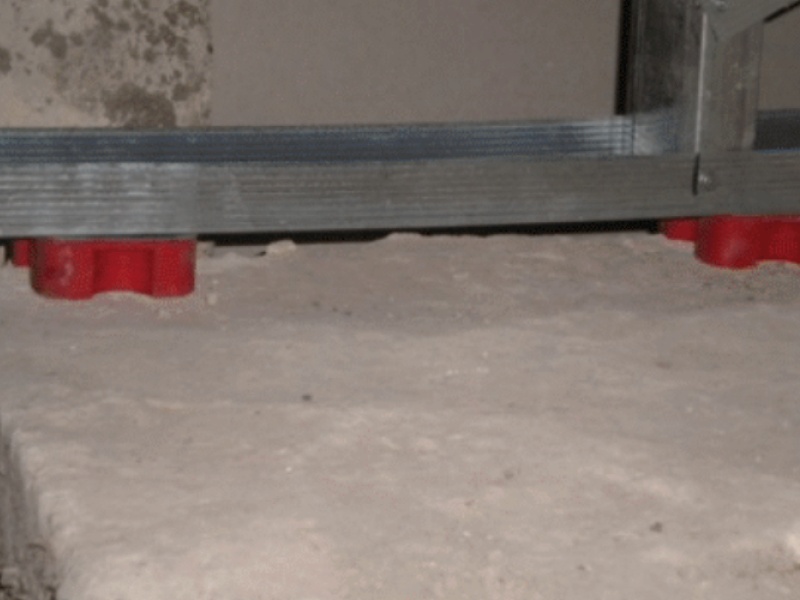

ACTUAL PHOTOS
