Damper with two stops and hybrid system for semi-industrial machines with floor support
Model TBM/IX + PT2

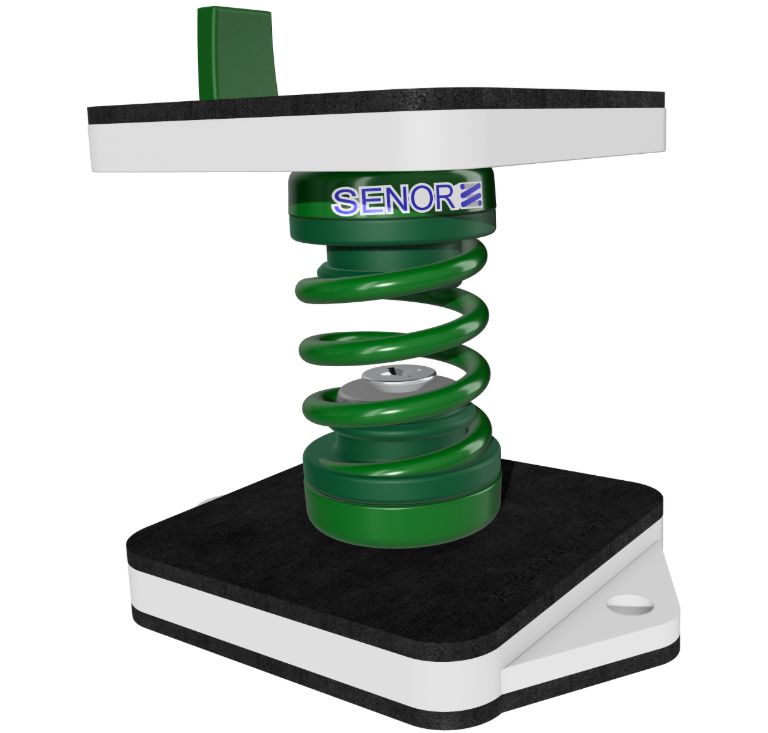

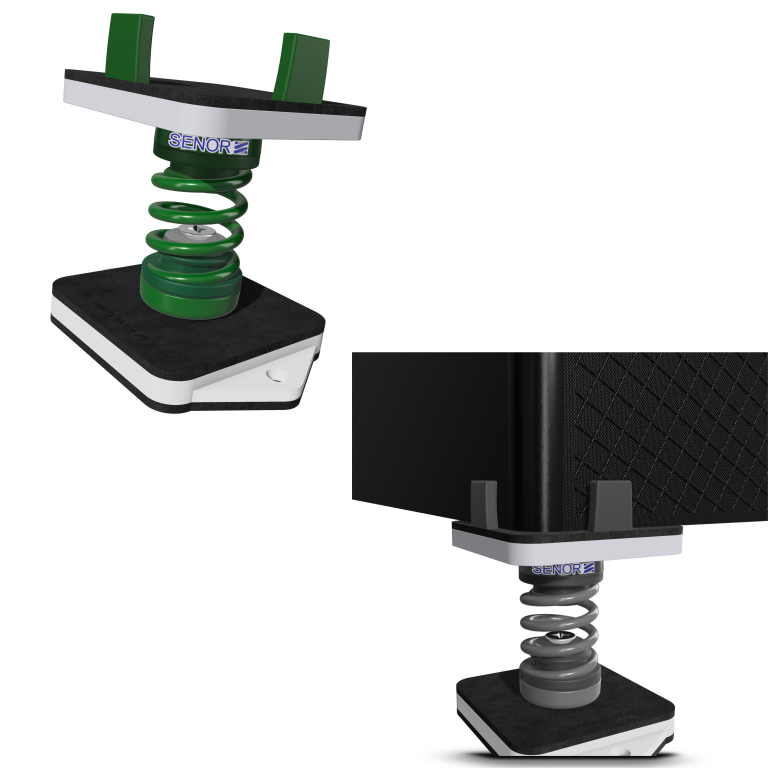

Designed with a platform consisting of two stops that allow the equipment to be secured without the need for screws.
SENOR-TBM/IX + PT2
Patented
The TBM/IX + PT2 are dampers with concentrated higher performance. Their mixed composition provides us with the best of the properties of ‘steel helical springs’ and the damping of polymer power. The juxtaposition of these two components allows us to market a unique damper that prevents the propagation of waves through the structure and reduces vibrations across the entire excitation frequency range.

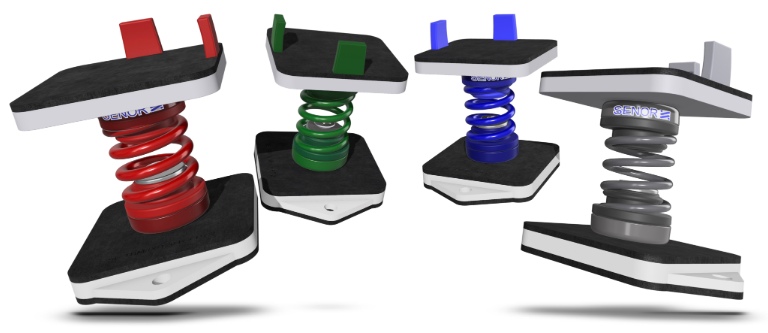

There are four different references that differ in load range and colour: grey, green, blue and red.
* TBM/IX 20 G + PT2 (Load range 3 – 20 kg)
* TBM/IX 45 V + PT2 (Load range 15 – 45 kg)
* TBM/IX 75 A + PT2 (Load range 30- 75 kg)
* TBM/IX 120 R + PT2 (Load range 60 – 120 kg)
Here you can download the installation manual
Installation manual TBM/IX + PT2
Product registered in the Spanish Patents and Trademark Office.
Its hybrid spring + rubber system covers a wider frequency range.
Quick and easy installation without additional accessories.
Load range: 3-20 kg
Load range: 15-45 kg
Load range: 30-75 kg
Load range: 60-120kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TBM/IX 20 G + PT2
– SE-TBM/IX 45 V+ PT2
– SE-TBM/IX 75 A+ PT2
–SE-TBM/IX 120 R+ PT2

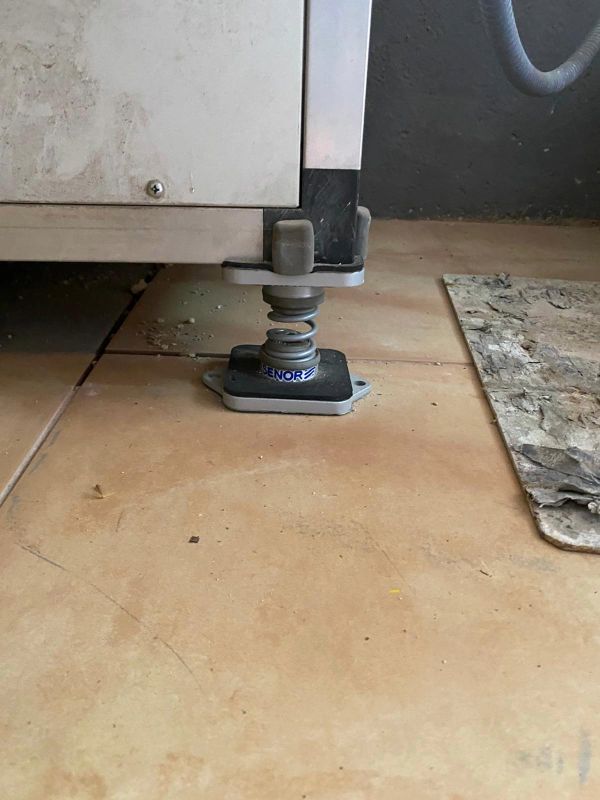

ACTUAL PHOTOS
