Rubber damper for equipment with floor mounting, with fixing base and lateral side stop
Model BI+PT1
Designed with a TOP on the upper part that prevents lateral displacement of the equipment resting on it.
SENOR-BI+PT1
Patented
BI + PT1 are RUBBER dampers designed to protect machinery from shock vibrations and impacts in the medium and high frequency range Hz. (Recommended for equipment operating at 1250 rpm or higher).
It has a safety stopper on its upper base that allows the equipment to rest on it and prevents it from moving sideways.

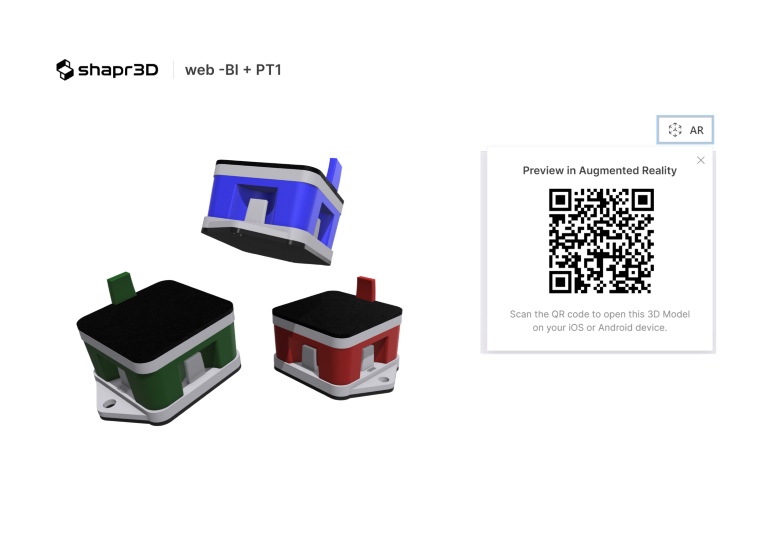

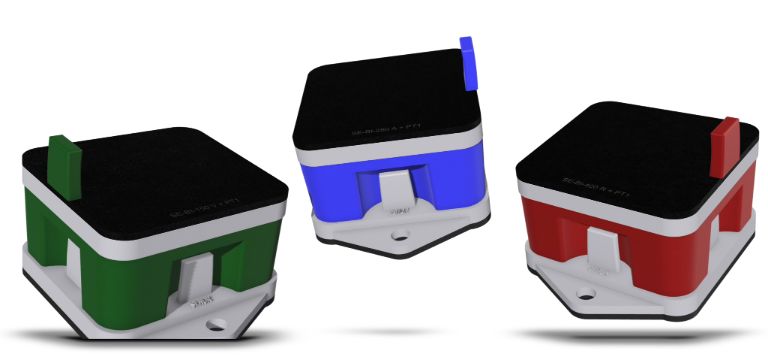

There are 3 references differentiated by load range and colour: Green, Blue and Red.

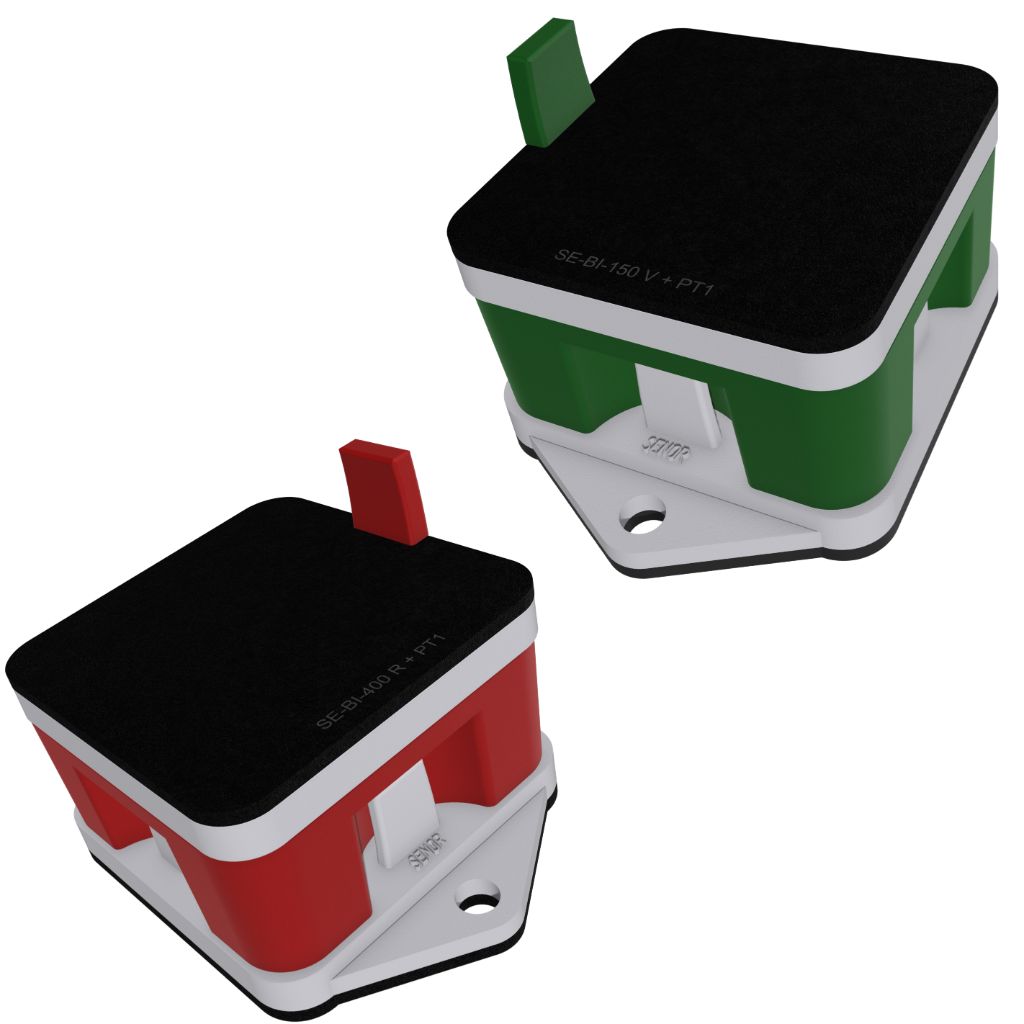

* BI-150 V + PT1 (Load range 30 – 150 kg)
* BI-280 A + PT1 (Load range 140- 280kg)
* BI-400 R + PT1 (Load range 250 – 400 kg)
Rubber damper with stopper
Product registered in the Spanish Patents and Trademark Office.
Double floor fixing for greater safety
Easy installation
Available in different sizes: M8, M10 (standard), M12, M14 and M16
Load range: 30-150 kg
Load range: : 140-280 kg
Load range: 250-400 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-BI-150 V + PT1
– SE-BI-280 A + PT1
– SE-BI-400 R + PT1

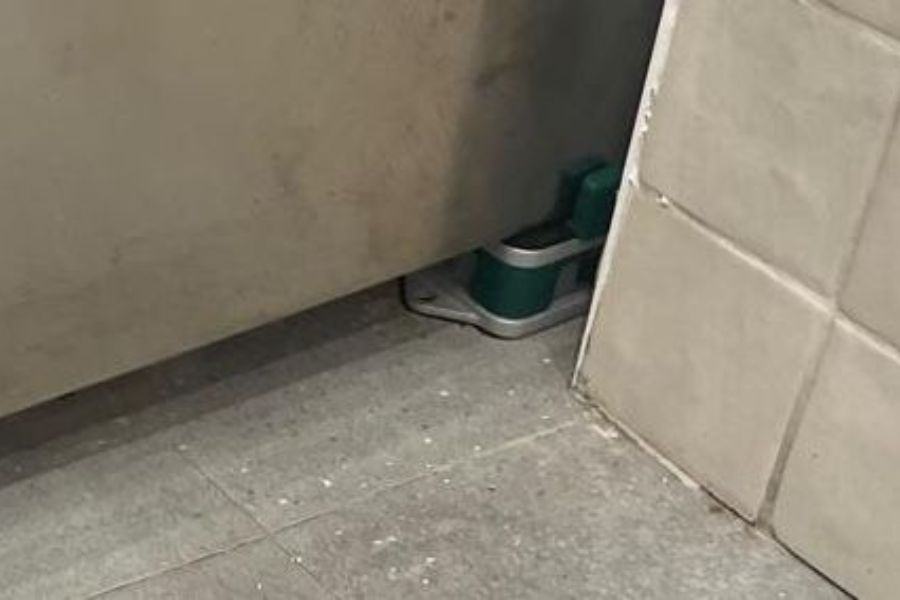

ACTUAL PHOTOS
