The most advanced rubber + steel damper for acoustic ceiling suspension

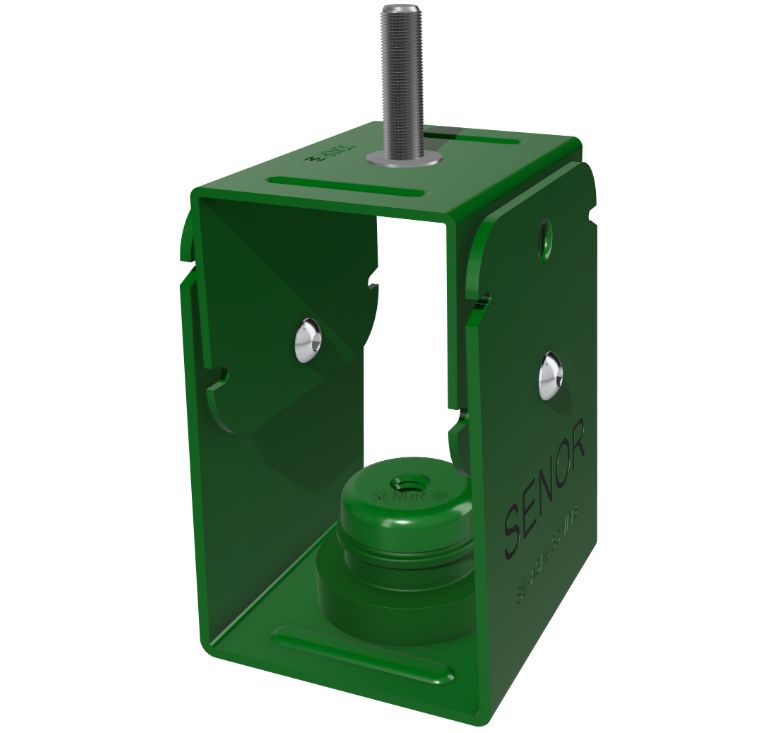

Model A6/IH
Rubber damper with double metric outlet and angle corrector manufactured using renewed polymers that provide greater performance in the acoustic field.

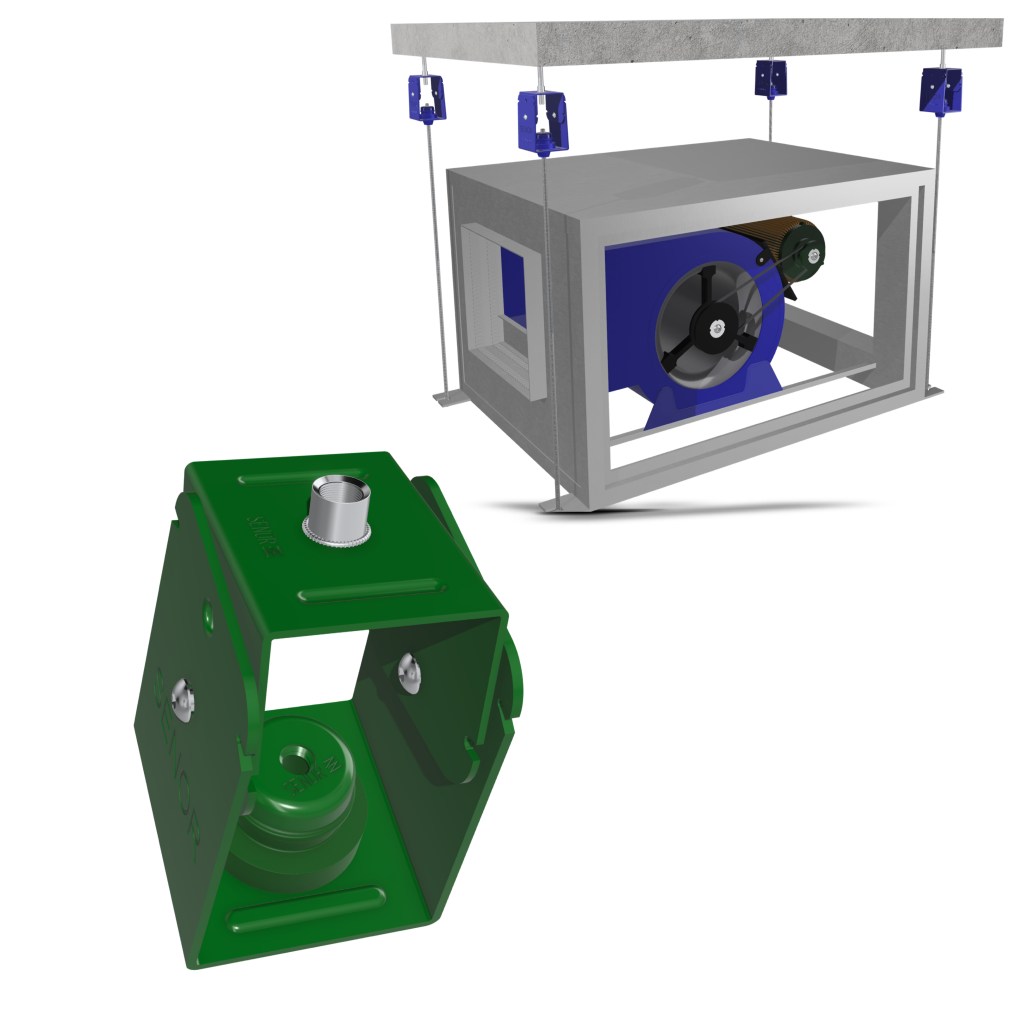

Designed for the suspension of equipment attached directly to the floor slab.
SENOR-A6/IH
Patented
A6/IH incorporates a double swivel ball joint in its metal frame that allows the angle of rotation between the two independent rods to be adjusted. In addition to ensuring that the compression of the RUBBER is always axial and never torsional, limiting the vector degrees of polymer deformation and thus promoting the good performance of the elastic system.

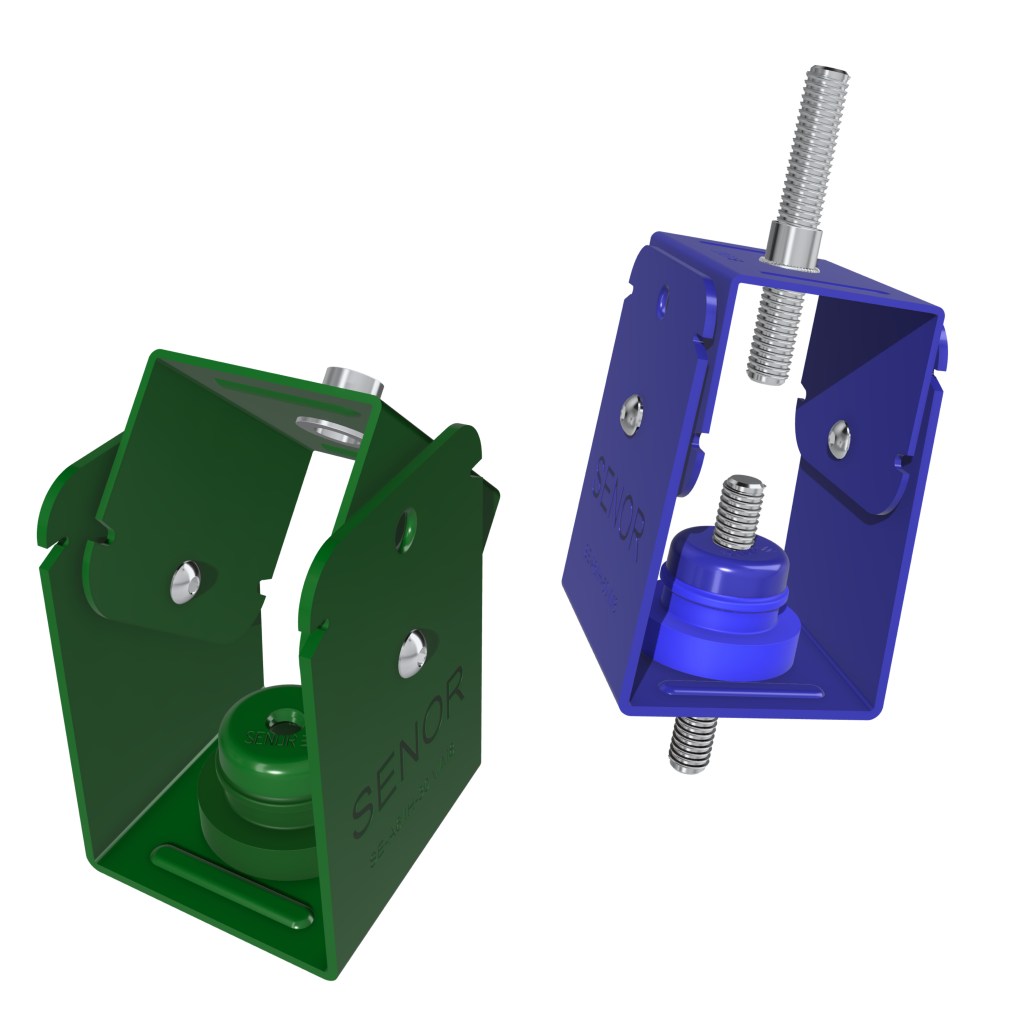

There are two different references depending on load range and colour: green and blue.
* A6/IH-30 V/M8 (Load range 8 a 30 kg)
* A6/IH 50 A/M8 (Load range 27 a 50 kg)
Rubber shock absorber with angle corrector and double metric outlet.
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Incorporates two independent casings so that the part can be positioned at the desired angle
Simple and easy installation.
Load range:8-30 kg
Load range: 27-50 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-A6/IH-30V/M8
– SE-A6/IH-50A/M8
