SENOR-4360/47 DS
Patented
U.9902534
The advanced rubber + steel damper for the suspension of acoustic ceilings for TC-47 profiles or similar
Model 4360/47 DS
The 4360/47 DS model is a rubber damper manufactured with a new, more advanced technology and renewed raw materials that provide significant improvements in the vibro-mechanical field.
Its direct attachment to 45/48 mm ceiling profiles (TC-45/47 type PLADUR, F-530 PLACO y MAESTRA 4717 KNAUF or similar) makes it unique. This type of acoustic isolator is designed to eradicate and attenuate the transmission of vibrations produced by equipment with rotating and repetitive hits above 20Hz.
Our commitment to SAFETY can give you a peace of mind. For this reason, the 4360/47 DS model incorporates the most advanced locking device on the market.

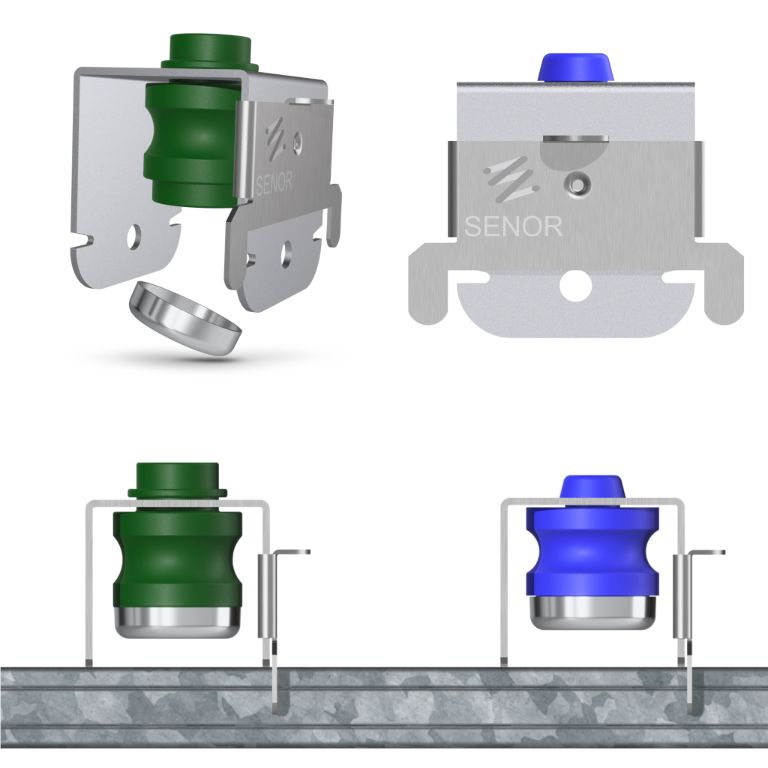

There are 2 products differentiated by load range and colour: Green and Blue
✓ 4360/47 V DS (Load range from 8 up to 30 kg)
✓ 4360/47 A DS (Load range from 27 up to 50 kg)
Installation video
It is a unique rubber + steel anti-vibration hanger that is incorporated with a locking device (DS) that incorportaes the suspension of false acoustic ceilings direct to the TC- 45/48 ceiling channel.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Here you can download the installation manual
Installation manual 4360/47 DS
Product registered in the Spanish Patents and Trademark Office
Easy and fast installation
Locking device to avoid deformations of the ceiling channels due to overweight
Easy positioning in the ceiling channel
No extra tools are needed for the installation
Load Range: 8-30 kg
Load Range: 27-50 kg
Resonance frequency: 7 – 15 Hz
Breaking point: >= 200 kg
Box format:
– SE-4360/47 ADS-M6/30: 30 units
– SE-4360/47 ADS-M6/100: 100 units
– SE-4360/47 VDS-M6/30: 30 units
– SE-4360/47 VDS-M6/100: 100 units
* Available in M8
* Available with double locking device (DS2)
Sample project
CEILING TREATMENT OF ACOUSTIC CEILING UNDER SLAB
Calculation of acoustic supports for the design of CEILING solution using RUBBER shock absorbers with locking device “DS”.
