Acoustic mount anchored to the ground, adptable to any structure
Model PLM SUELO
MAXIMUN PERFORMANCE AND SAFETY!
Adaptable to all types of structural profile.
For additional information, please contact our Technical Department.
SENOR-PLM SUELO
Patented
PLM SUELO are mounts made from the latest generation of carbon steel. They permit the decoupling and insulation of all types of auxiliary structures from the architectural areas of a building.
This range offers a great versatility as it can be made to measure according to the requirements of the context in which it is to be integrated.
✓EPDM SHEET CR-140/BEC-10; ensures a perfect fit with the original wall, while providing a high degree of vibration insulation in the medium frequency range (Hz).
✓Polymer: KRAIBURG-TPE (Testing system in accordance with standard UNE-EN ISO 10846-1:2009)
✓ Resonance frequency: 7-15 Hz.
Currently, there are several standard colors available: Green, Blue, and Red.
* PLM/PSC 120 V (Load range 50 – 120 kg)
* PLM/PSC 150 A (Load range 80 – 150 kg)
* PLM/PSC 180 R (Load range 100 – 180 kg)
* PLM/PST400 V (Load range 150 – 400 kg)
* PLM/PST 600 A (Load range 300 – 600 kg)
* PLM/PST 800 R (Load range 500 – 800 kg)
These are the standard colors, but custom sizes and weights can be manufactured to meet the customer’s specific requirements.

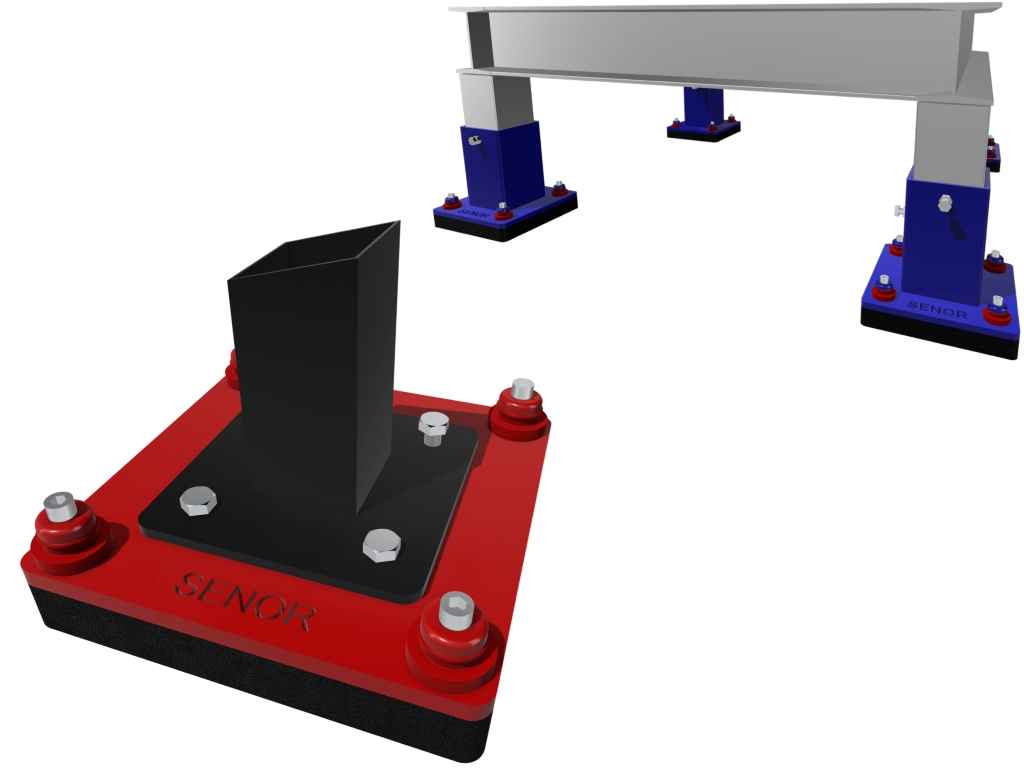

Acoustic mount with floor anchoring, adaptable to any type of profile and manufactured for different load ranges
Product registered in the Spanish Patents and Trademark Office.
Total separation of the fixing screws

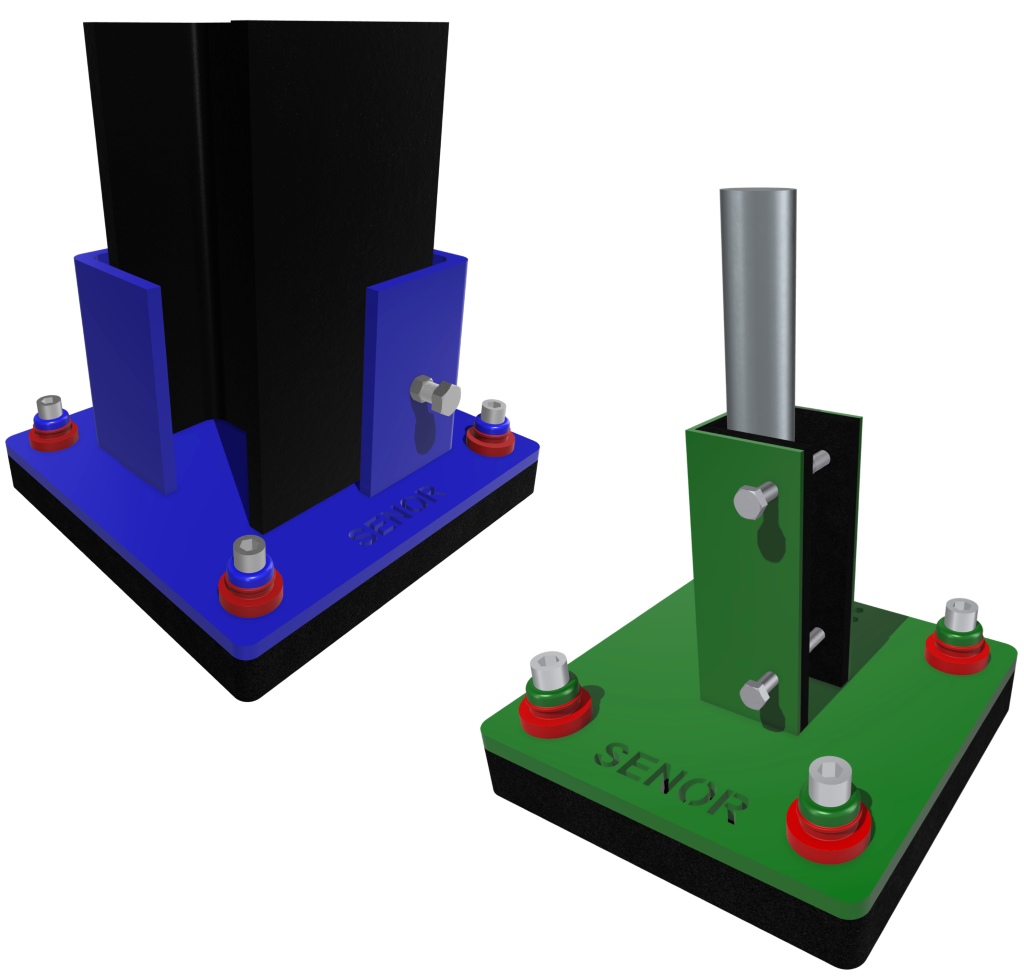

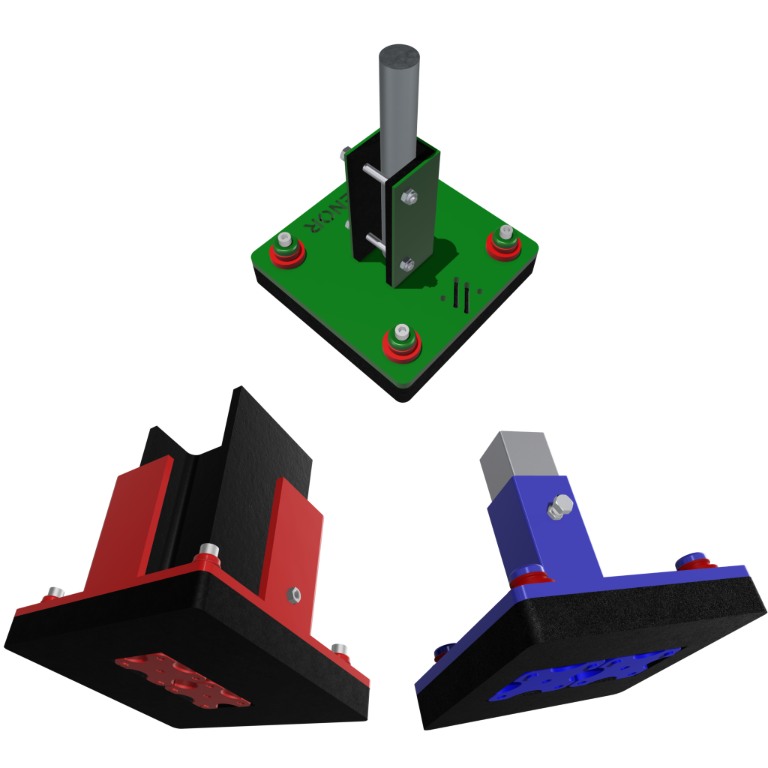

Adaptable to all types of profiles and different load ranges
Load Range: 50-120 kg
Load Range: 80-150 kg
Load Range: 100-180 kg
Load Range: 150-400 kg
Load Range: 300-600 kg
Load Range:500-800 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-PLM VERTICAL 120 V
– SE-PLM VERTICAL 150 A
– SE-PLM VERTICAL 180 R
– SE-PLM VERTICAL 400 V
– SE-PLM VERTICAL 600 A
– SE-PLM VERTICAL 800 R

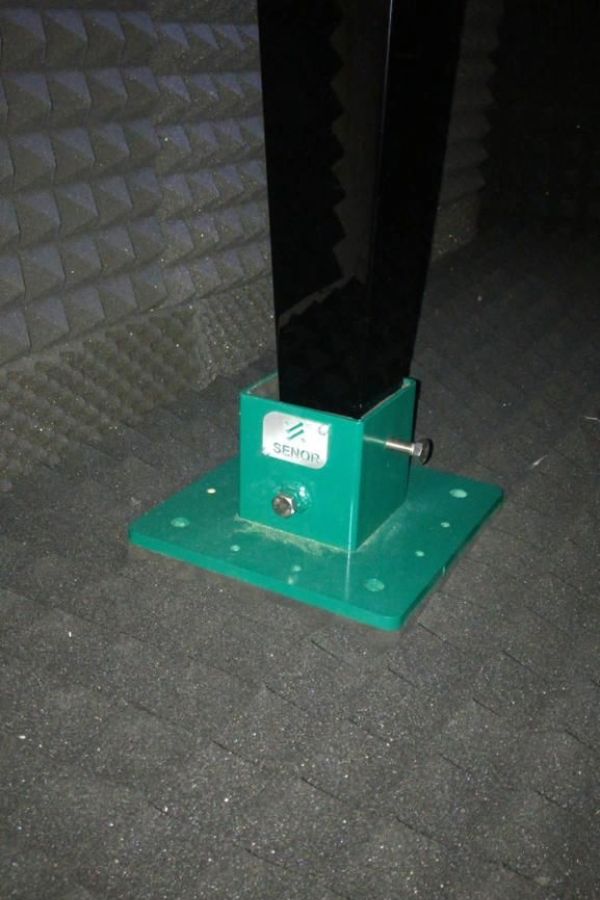

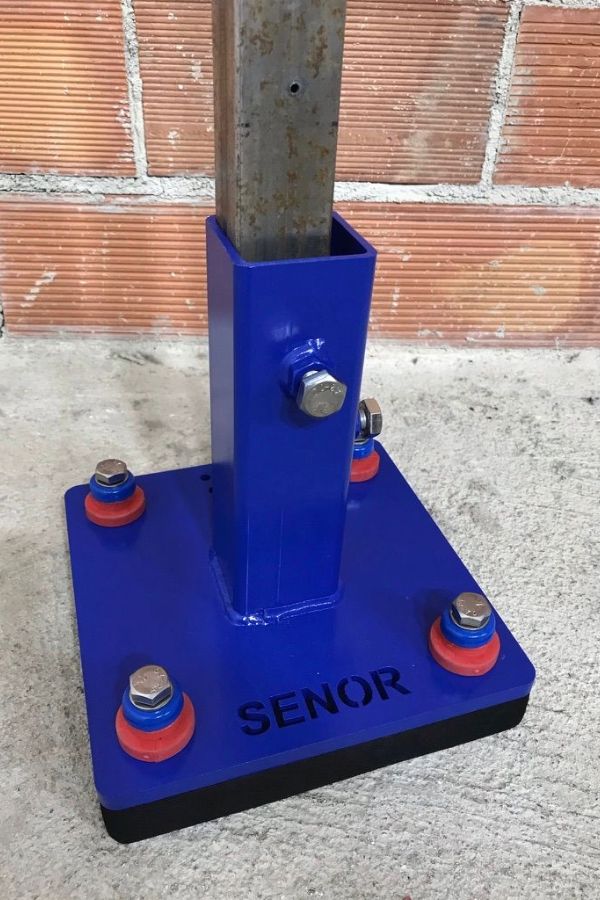

ACTUAL PHOTOS
