The ultra-fast ceiling damper with double locking device
Model F/RAPID/GM 47 DS2
AN ANTI-VIBRATION RUBBER HANGER WITH DIRECT FIXING TO THE CEILING CHANNEL AND WITH A DOUBLE SAFETY LOCKING DEVICE (DS2)
IMPOSSIBLE TO GIVE MORE SECURITY!
It is a unique and RENEWED anti-vibration hanger. An ultra-fast and very professional suspension for suspending acoustic false ceilings using a TC47 profile. Excellent suspension for protection from vibrations and shock waves.
PATENTED SYSTEM!
P.T. 201531555 (1)
Click and move
Patented
P.T. 201531555 (1)

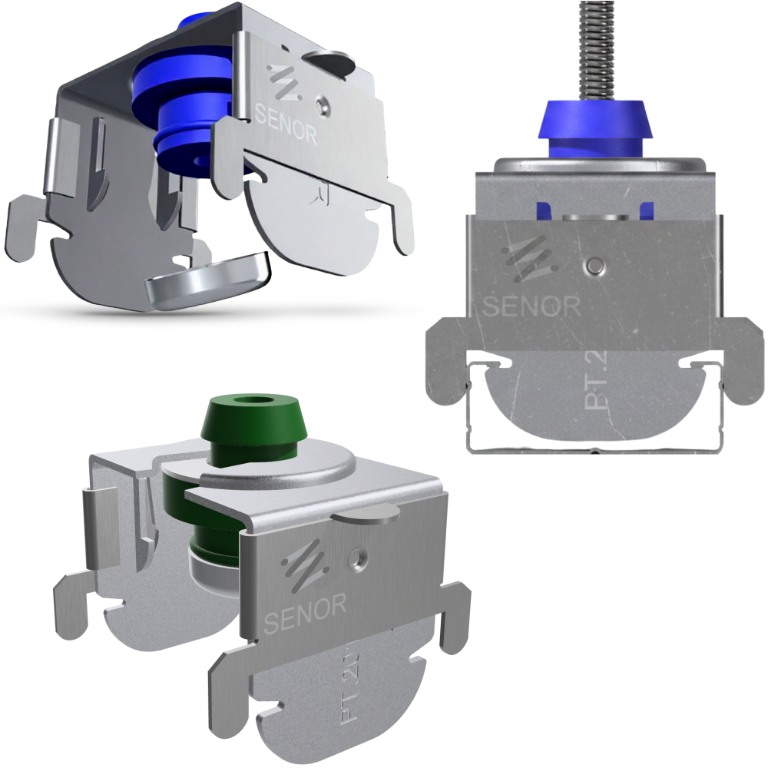

The F/RAPID/GM 47 DS2 is the fastest and safest anti-vibration rubber hanger, incorporating the most advanced double-locking device of this moment (DS2). Its internal RUBBER component incorporates an exclusive design, obtaining acoustic improvements to airborne noise of more than 22 dBA with already tested results. This makes it unique for the suspension of acoustic false ceilings using a TC45/48 profile.
There are 2 products differentiated by load range and colour: Green and Blue
* F/RAPID/GM 47 V DS2 (Load range 3 to 25 kg)
* F/RAPID/GM 47 A DS2 (Load range 20 to 45 kg)
✓ DS2 for both products, the breaking load is above >250 kg at a time.
✓ CN for both products, the breaking load is above 250 kg at a time.
✓ Available metrics: M6 and M8

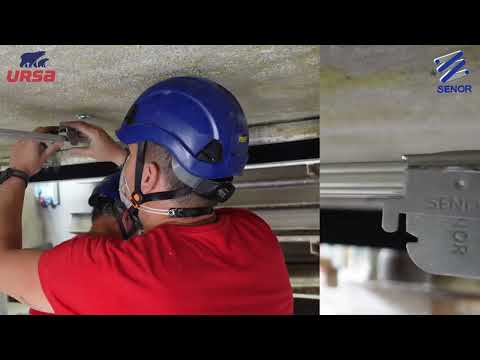

Installation video
AN ANTI-VIBRATION RUBBER HANGER WITH DIRECT FIXING TO THE CEILING CHANNEL AND WITH A DOUBLE SAFETY LOCKING DEVICE (DS2)
Data Sheet F/RAPID/GM 47 V DS2
Data Sheet F/RAPID/GM 47 A DS2
Here you can download the installation manual
Installation manual FRAPID GM 47 DS2
Product registered in the Spanish Patents and Trademarks Office
Unique hanger with double locking device (DS)
Easy and fast installation
It turns into a connector just by removing the polymer (rubber) inside its metal frame.
Its 1.5 mm thickness provides more security than the common channel intersection connectors
It can be slided along the metal channel to be placed exactly at the intended point
Load Range: 3-25 kg
Load Range: 20-45 kg
Resonance frequency: 7 – 15 Hz
Breaking point: >= 240 kg
Box format:
– SE-F/RAPID/GM 47 A/DS2-M6: 50 units
– SE-F/RAPID/GM 47 A/DS2-M8: 50 units
– SE-F/RAPID/GM 47 V/DS2-M6: 50 units
– SE-F/RAPID/GM 47 V/DS2-M8: 50 units
Test Reports Nº: 21/25271-1590 M1 and 21/25271-1591 M3
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-2:2011, 10140-1:2016
Laboratory: APPLUS (Tarragona, SPAIN)
Date: 7 and 8 July 2021
Sample: URSA+DANOSA+SENOR SUSPENDED ACOUSTIC CEILING
Standardised Base Floor: Reinforced concrete slab
Standardised Base Thickness and Weight: 14 cm and 350 kg/m²
Total Acoustic Ceiling Thickness: 13.25 cm + 14.90 cm
Sample Description: Suspended acoustic ceiling system comprising: SE-F-RAPID/GM47/DS dampers (SENOR) + SE-F-RAPID/GM47/DS channel intersection connector (profile-connecting piece) (SENOR) + SE-BEC-10×80 acoustic strip (SENOR) + TC-45/48 profiles (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + URSA TERRA PLUS 32 rockwool + 12.5 mm Plasterboard (KNAUF) + 4 mm M.A.D.4 acoustic membrane (DANOSA) + 12.5 mm Plasterboard (KNAUF).
TEST 1 (21/25271-1590 M1) – Single layer of plasterboard: An improvement of 18 dB in airborne sound compared to the base floor, which has a rating of 48 dB, resulting in a total soundproofing of 65 dB.
TEST 2 (21/25271-1591 M3) – Double layer of plasterboard + bituminous membrane between boards: An improvement of 22 dB in airborne sound compared to the base floor, which has a rating of 48 dB, resulting in a total soundproofing of 70 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS AND 1 DRYWALL –
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS AND 2 DRYWALL –
Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample Project
ACOUSTIC CEILING TREATMENT UNDER FLOOR UNDER HOUSING
Ceiling insulation project in a home. It is recommended to use the SE-F-RAPID 47 GM DS2. This project indicates the total amount of shock absorbers required, their behavior and their modulation.
ACTUAL PHOTOS
