Model TBF
DAMPER DESIGNED FOR SEMI-INDUSTRIAL MACHINES WITH ANTI-TILT SYSTEM AND ANGLE MOUNTING
Clica y mueve
Patented
TBF HYBRID third generation dampers with higher concentrated performance. This new product range incorporates one of the most advanced technologies in safety. “Independent stainless-steel axle”. It allows to restrict degrees of freedom and to improve the axial compression of the helical system. Also, it favours better seating with the polymers at its edges and prevents the air-conditioning unit from coming loose due to adverse weather conditions.
✓ Independent locking anti-tilt shaft allows for restricted degrees of freedom.
✓ Low vibration transmissibility
✓ Incorporates movement stop to solve the free oscillation of the system, avoiding abrupt displacements and increasing the durability of the spring.

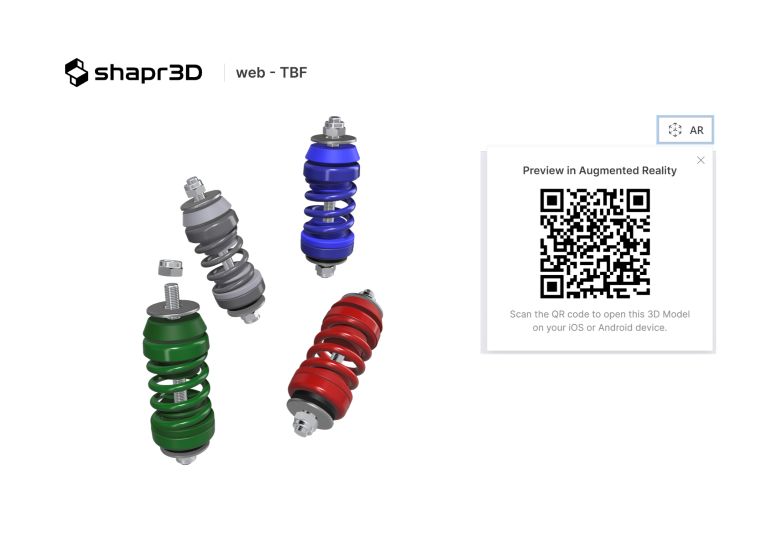

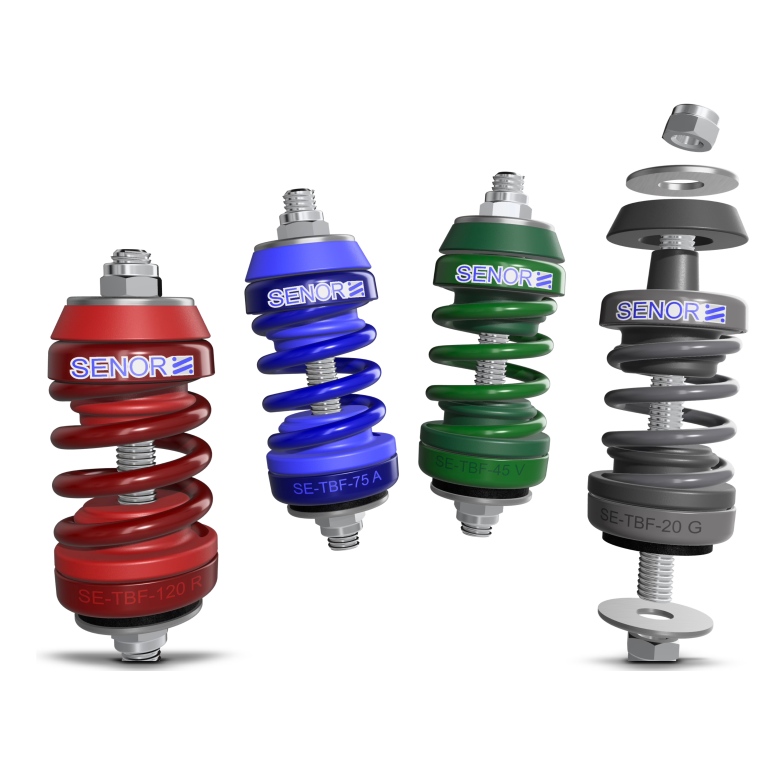

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
* TBF-20 G (Load range 3 – 20 kg)
* TBF-45 V (Load range 15 – 45 kg)
* TBF-75 A (Load range 30- 75 kg)
* TBF-120 R (Load range 60 – 120 kg)
Promotional video

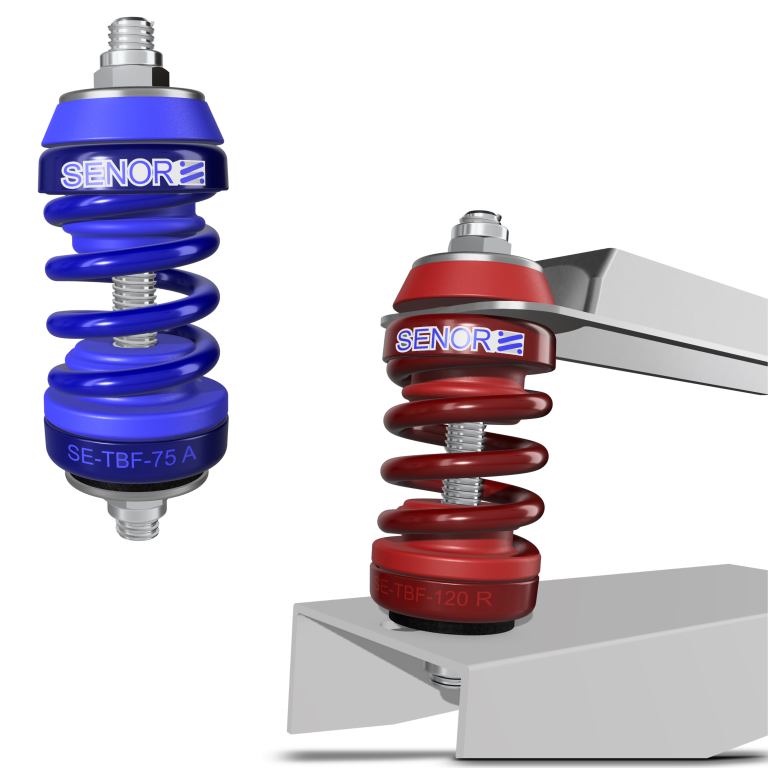

Damper for semi-industrial machines with anti-tilt system and angle attachment
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
It has an anti-tilt axle that restricts degrees of freedom and provides greater safety
Hybrid spring+rubber system covers a wider range of frequencies
Quick and easy installation without additional accessories
Load range: 3-20 kg
Load range: 15-45 kg
Load range: 30-75 kg
Load range: 60-120 kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TBF-20 G
– SE-TBF-45 V
– SE-TBF-75-A
– SE-TBF-120-R

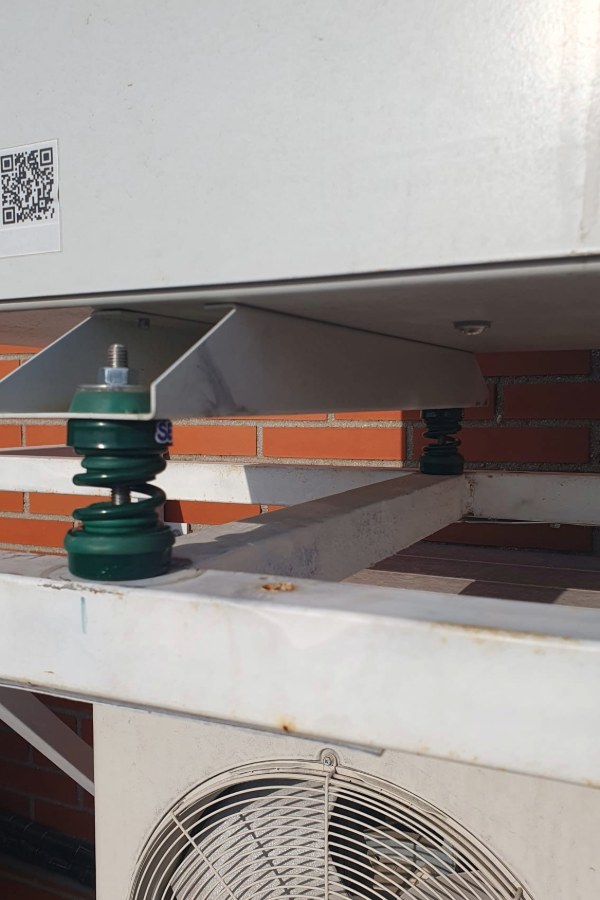

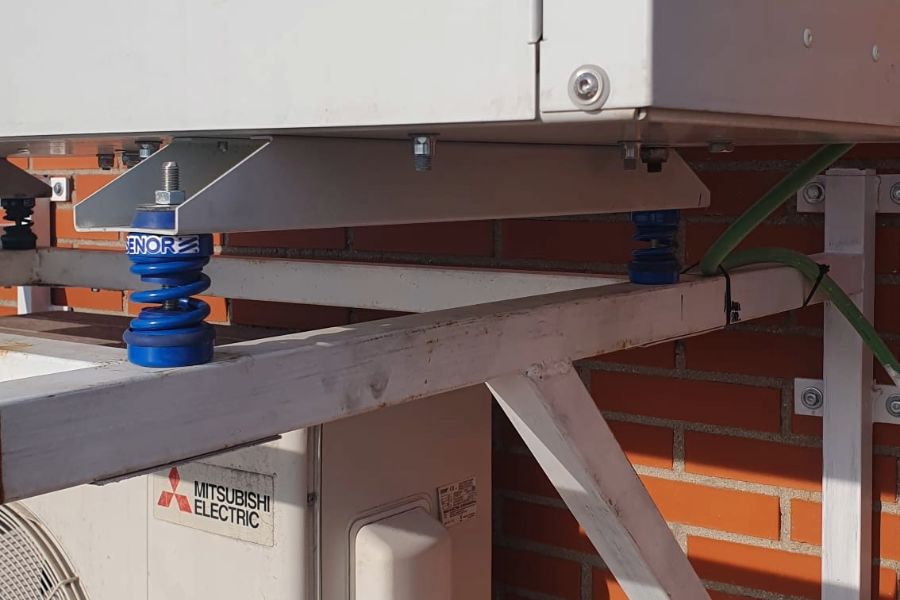

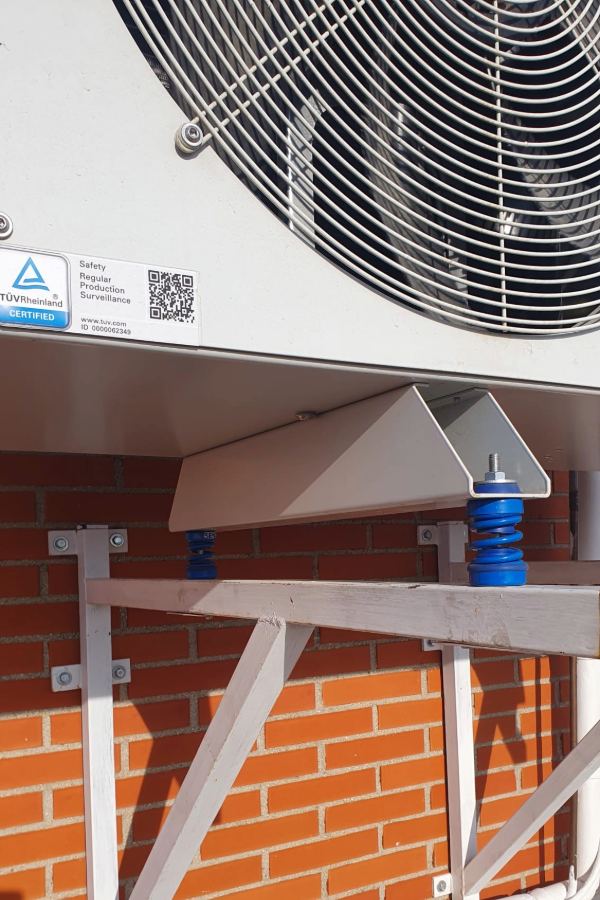

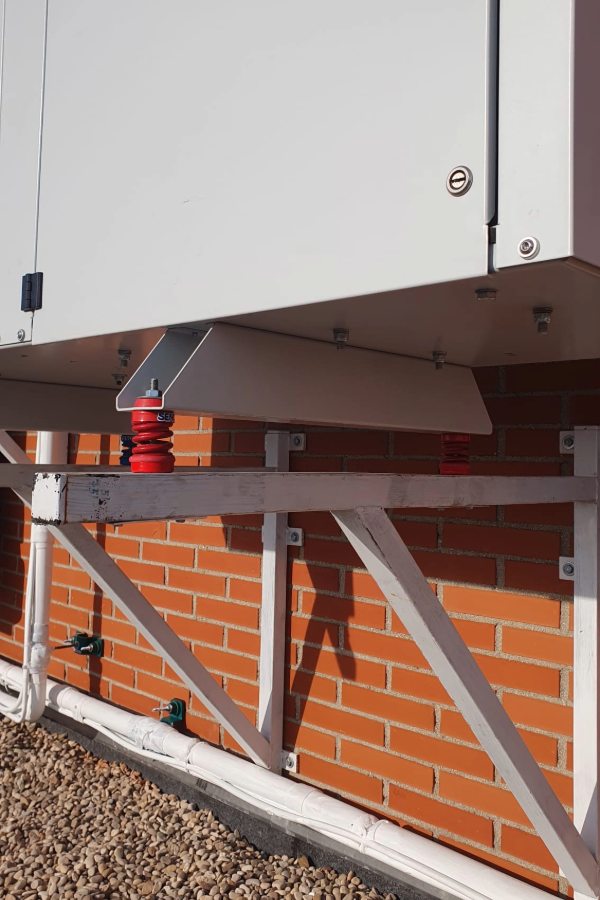

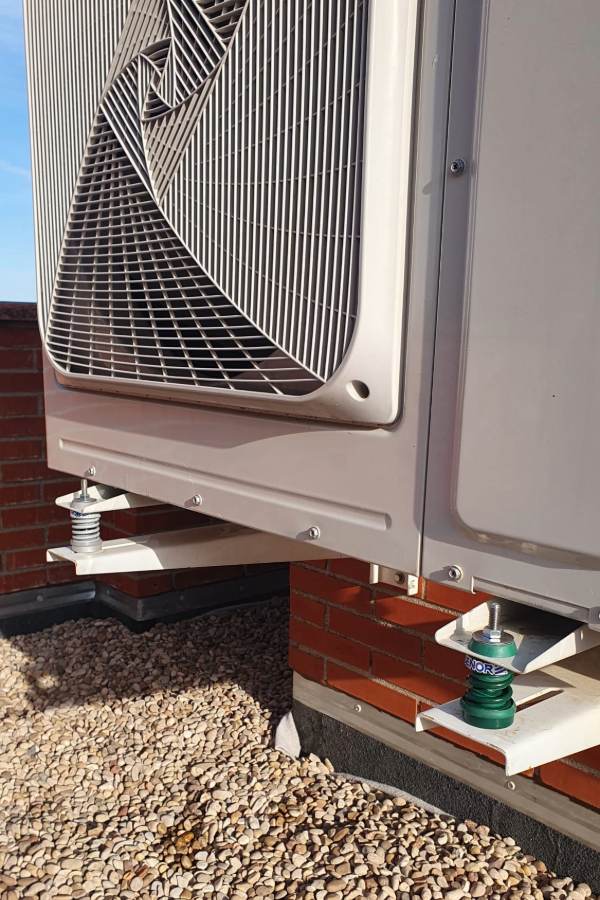

ACTUAL PHOTOS
