Model BF

RUBBER DAMPER ON BRACKET FOR AIR-CONDITIONING AND HEATING MACHINES

click_and_collect_icon

Clica y mueve

Patented


BF a different and renewed, high-performance rubber damper. Manufactured with the most advanced technology and designed for the suspension of air conditioning and heating machines in the exterior of buildings.
This type of damper is designed to eradicate and attenuate the transmission of vibrations produced by shocks, impacts and vibro-mechanical energies from equipment working above the threshold of the audible field (1200 rpm or 20 Hz).


✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).

✓ Ergonomic design favours better and correct axial compression.

✓ Resonance frequency: 7 – 15 Hz

✓ Available metric: M8

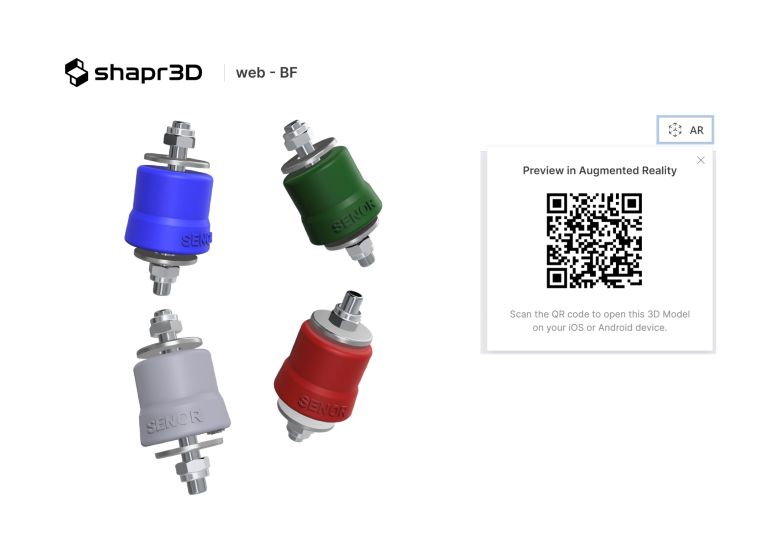

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.

* BF-25 (Load range 5 – 25 kg)

* BF-35 (Load range 25 – 35 kg)

* BF-45 (Load range 35 – 45 kg)

* BF-60 (Load range 45 – 60 kg)

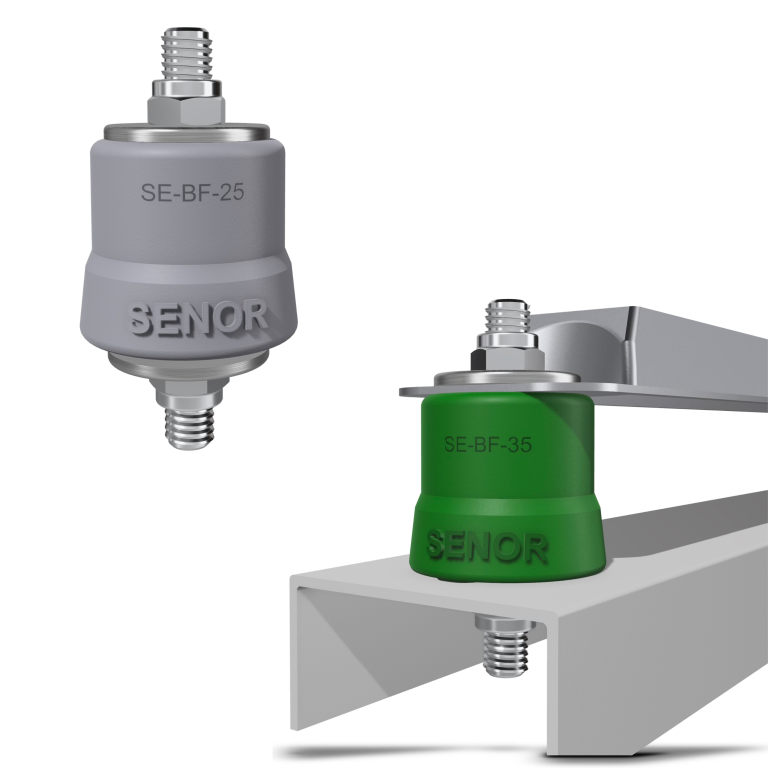

RUBBER damper for equipment on brackets

descargar Data Sheet BF-25

descargar Data Sheet BF-60


Here you can download the installation manual

descargar Installation manual BF

Product registered in the Spanish Patents and Trademark Office.

Designed with different load ranges for a better adaptation to the weight to be supported

Excellent acoustic results >95%

Quick and easy installation without additional accessories

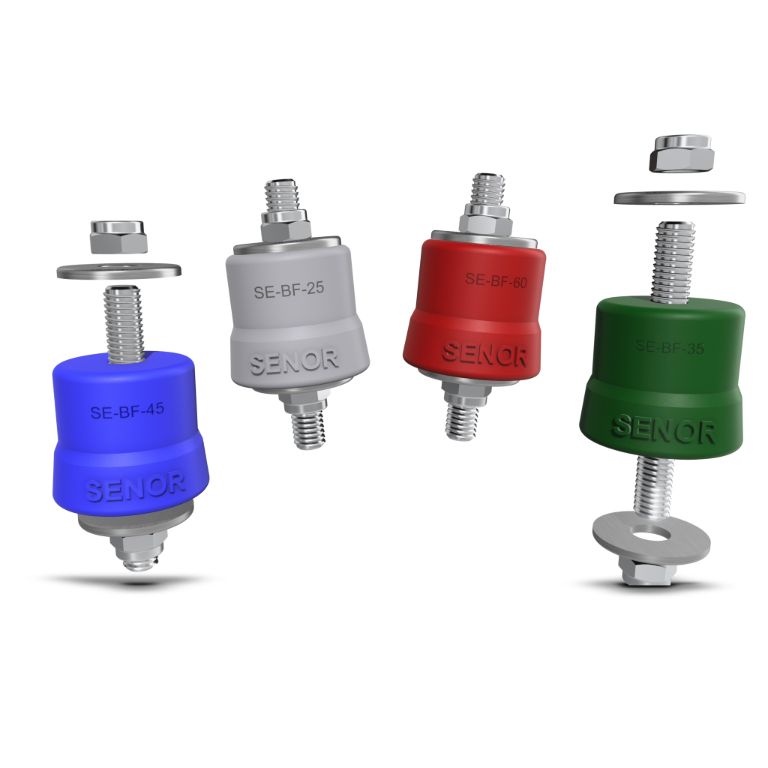

SE-BF-25

SE-BF-35

SE-BF-45

SE-BF-60
