Model TS-80
RUBBER MOUNT WITH RESTRAINT SYSTEM FOR ACOUSTIC FLOORS OR INERTIA BASES
Designed to withstand loads from 35 to 400 kg and made of the polymer: KRAIBURG-TPE – TC/GPN
(Test system according to UNE-EN ISO 10846-1:2009).
– Resonance frequency: 7-15 Hz
This model is a RUBBER wall mount for acoustic floors devised to provide quality to any given acoustic system and to eradicate sound frequencies and vibrations.
THE ULTIMATE MOUNT FOR CONCRETE SLAB FLOORS!
Click and move
Patented

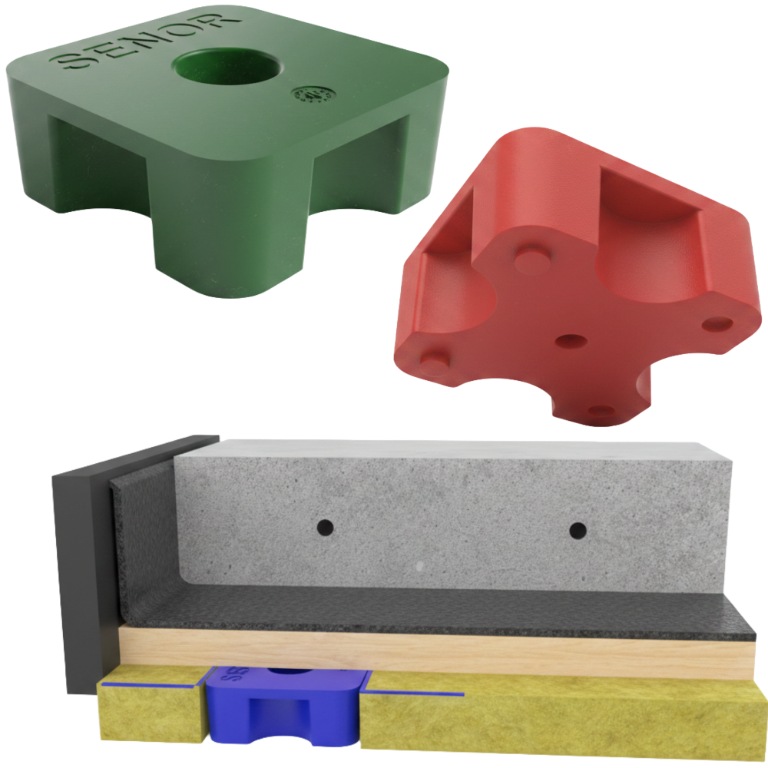

TS-80 incorporates a PATENTED movement with 2 translation control stops in its base. Its trapezoidal design, with four indentations towards its interior forming an X-shaped figure, exponentially improves its internal elasticity, providing greater performance in the acoustic field and favouring perfect seating on the ground, obtaining acoustic improvements to impact noise of more than 37 dB with results already tested.
There are 3 different models depending on load range and colour: Green, Blue and Red
✓ TS-80 V 150 (Load range from 35 – 200 kg)
✓ TS-80 A 280 (Load range from 150 – 280 kg)
✓ TS-80 R 400 (Load range from 270 – 400 kg)
Recommended to be used together with concrete mortar slabs over 50 millimeters thick.
Installation video
RUBBER mount for concrete floors.
Here you can download the installation manual
Product registered in the Spanish Patents and Trademarks Office
Its design provides an excellent stability to the whole system
It incorporates two PATENTED movement and translation control stops
Easy and fast installation
Excellent result in impact noise soundproofing
Load Range: 35-200 kg
Load Range: 150-280 kg
Load Range: 270-400 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-TS-80 V 150/50: 50 units
– SE-TS-80 V 150/16: 16 units
– SE-TS-80 A 280/50: 50 units
– SE-TS-80 A 280/16: 16 units
– SE-TS-80 R 400/50: 50 units
– SE-TS-80 R 400/16: 16 uds
Test Report Nº: B2022-LACUS-IN-176 A
Purpose: Airborne Soundproofing Test AND Impact Noise Insulation Test
Standards: UNE-EN ISO 10140-1:2022, 10140-2:2022 and 10140-3:2022
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 15 June 2022
Sample: CHOVA+SENOR CONCRETE ACOUSTIC FLOOR
Standardised Base Floor: Reinforced concrete slab
Standardised Base Thickness and Weight: 15 cm and 375 kg/m²
Total Acoustic Floor Thickness: 12.6 cm
Sample Description: Concrete acoustic flooring system comprising: SE-TS-80 V 150 dampers (SENOR) + SE-BEC-15×170 acoustic strip (SENOR)
+ 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 16 mm MDF board + CHOVACUSTIC 65 FIELTEX multilayer component (CHOVA) + 6 cm reinforced concrete
Result: An improvement of 13 dB in airborne sound compared to the base floor, which has a rating of 59 dB, resulting in a total soundproofing of 72 dB.
Result: Reduction of 37 dB in impact noise compared to the base floor, which has a rating of 76 dB, achieving a total soundproofing of 36 dB.
Laboratory measurement of airborne sound insulation and impact sound insulation improvement – WITH DAMPERS –
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample project
SOUNDPROOFING SOLUTION FOR IMPACT NOISE FLOOR

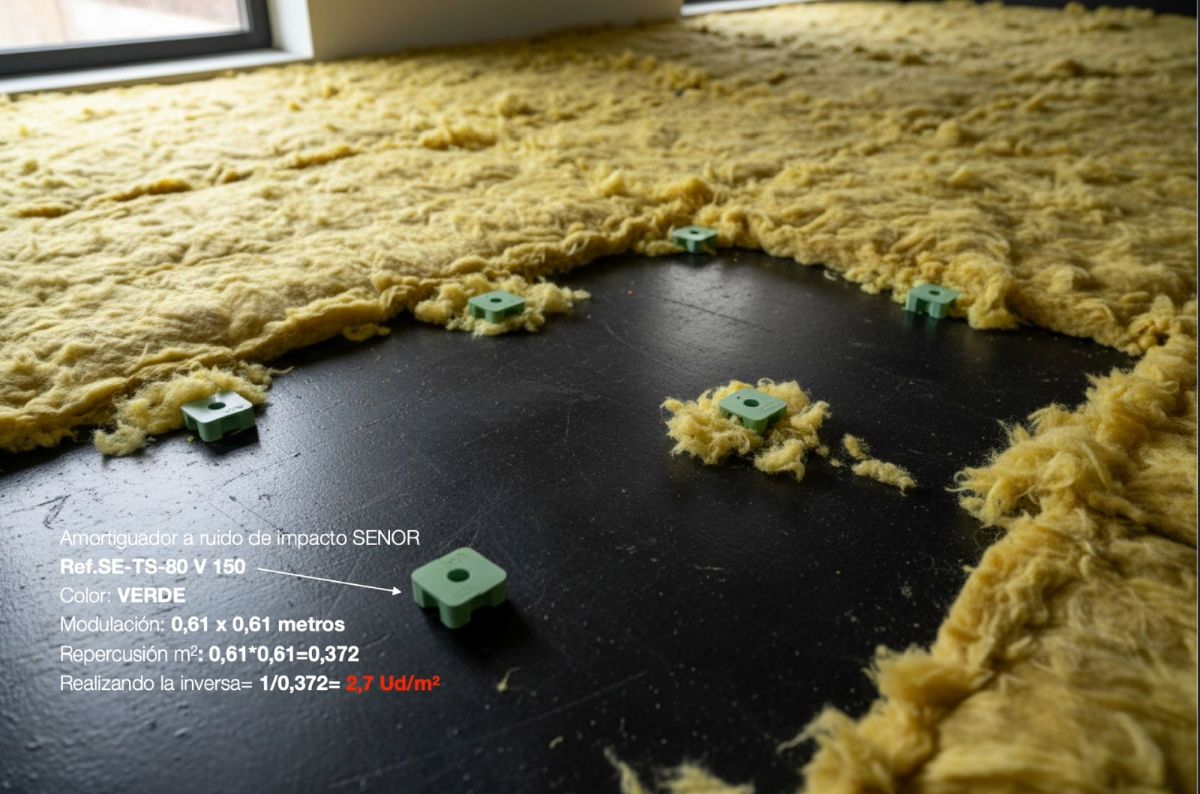

Soundproofing treatment for impact noise floor. It is recommended the Ref.SE-TS 80 V 150 under existing slab
