The most advanced hybrid damper for suspension of acoustic wall
Model 4800/TDM
ACOUSTIC Wall lining system, WILL IT MEET THE FIRE RESISTANCE STANDARD EI120?
SENOR can firmly says that it is the first manufacturer of antivibration systems in achieving and offering solutions to install ACOUSTIC WALL LINING SYSTEMS which meet the fire resistance standard (EI60, EI90 and EI120).
SENOR HAS DO IT AGAIN!
It is a HYBRID mount with steel bracket of 1.5 mm thickness for acoustic wall lining systems.
Click and move
Patented
The 4800/TDM is designed to eradicate and attenuate the transmission of vibrations produced by shocks, impacts or vibro-mechanical energies from equipment that generates noise pollution below the threshold of the audible field of 20Hz.
There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
✓ 4800/15-TDM (Load range from 3 – 15 kg)
✓ 4800/30-TDM (Load range from 15 – 30 kg)
✓ 4800/50-TDM (Load range from 30 – 50 kg)
✓ 4800/75-TDM (Load range from 50 – 75 kg)

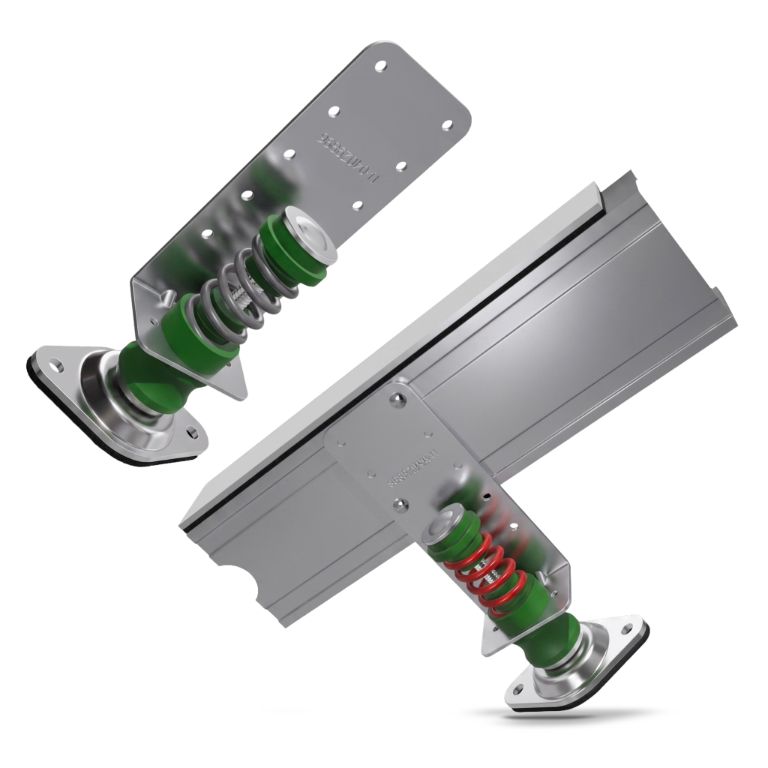

Hybrid wall mount for acoustic wall lining system
Here you can download the installation manual
Product registered in the Spanish Patents and Trademarks Office
Double fixation to the wall
Steel bracket of 1,5 mm thickness
Excellent soundproofing results thanks to the hybrid combination
Load Range: 3-15 kg
Load Range: 15-30 kg
Load Range: 30-50 kg
Load Range: 50-75 kg
Resonance frequency: 3 – 7 Hz
Box format:
– SE-4800/15-TDM/30: 30 units
– SE-4800/30-TDM/30: 30 units
– SE-4800/50-TDM/30: 30 units
– SE-4800/75-TDM/30: 30 units
Test Report Nº: B2021-LACUS-IN-159 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 30 November 2021
Sample: CHOVA+SENOR SELF-SUPPORTING ACOUSTIC WALL LINING – EI120
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 20.2 cm
Sample Description: Self-supporting wall lining system comprising: SE-4800/TDM dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC-10×100 acoustic strip (SENOR) + 48 mm channels and studs (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 25 mm Fireproof Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 25 mm Plasterboard (KNAUF)
Result: An improvement of 21 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 70 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Test report Nº: 086146-001
Objetive: Ensayo de Resistencia al Fuego
Quality Standars: EN 1363-1:2020, EN 1364-1:2015 y EN 13501-2:2016
Laboratory: TECNALIA (Azpeitia – Guipúzcoa)
Date: 23 October 2020
Sample: SENOR+CHOVA EI120 SELF-SUPPORTING ACOUSTIC WALL LINING
Samples dimensions: 3 m width x 3 m height
Test duration: 149 minutes. An insulation failure occurs at minute 140 and an integrity failure occurs at minute 148.
Description of the sample: self-supporting acoustic wall lining formed with dampers SE-4800/TDM (SENOR) + dampers SE-TAV-500/11A and 11R (SENOR) + acoustic band SE-BEC-6×100 and SE-BEC- 10×100(SENOR) + 48 mm channels and studs + 4 cm CHOVANAPA absorbent material (CHOVA) + 25 mm fire-retardant PYL (KNAUF) + 4 mm VISCOLAM 65 acoustic plate (CHOVA) + 25 mm PYL (KNAUF)
Field of direct application (changes or variants permitted):
– WIDTH: unlimited
– HEIGHT: up to 1 metre longer than the test sample, that is, up to 4 metres.
– Further permitted variants are listed in the Classification Report.
Result: Fire resistance classification: EI120 E120
Fire resistance test according to EN 1364-1:2015
Qualification fire resistance test according to EN 13501-2:2016
Sample Project
FLOATING TRANSFER FOR PREMISES WITH EMISSION <90dBA WITH MUSIC
