Model TAV/4000
POLYMERIC DAMPER DESIGNED FOR RIGID CONNECTIONS / PIPES
Clica y mueve
Patented
TAV/4000 is a polymeric insulator, which allows us to carry out acoustic insulation of possible rigid connections that may exist in ceilings, floors or walls.
It has a threaded hole where rods, clamps, etc. can be inserted.
✓ Available in M8, M10, M12, M14 and M16.

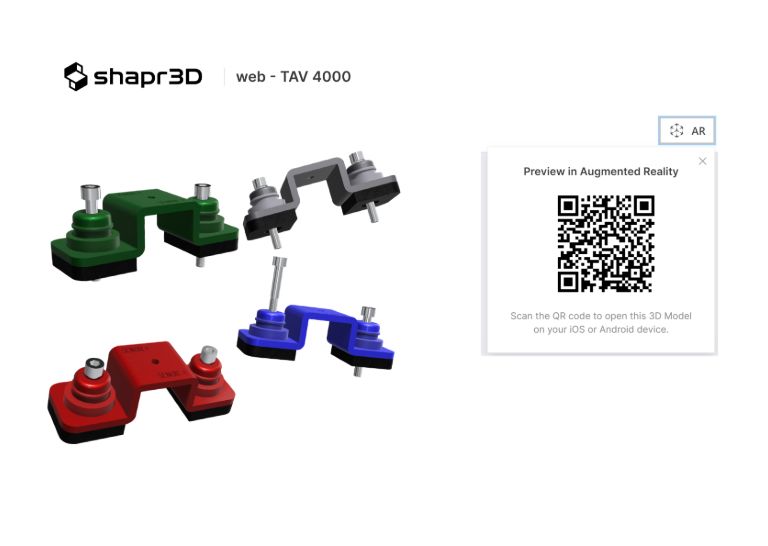

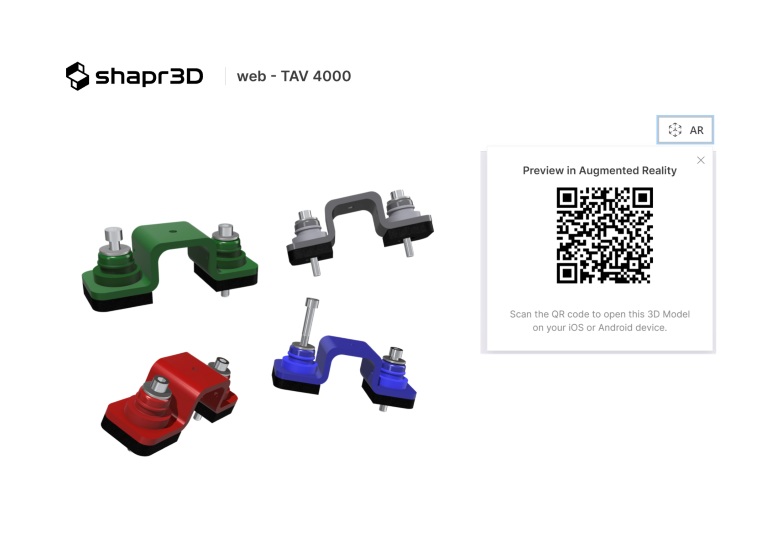

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
* TAV/4000 G (Load range 3 – 20 kg)
* TAV/4000 V (Load range 15 – 35 kg)
* TAV/4000 A (Load range 30- 45 kg)
* TAV/4000 R (Load range 40 – 60 kg)
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Easy installation
Available for various metrics: M8, M10 (standard), M12, M14 and M16
Ideal for acoustic insulation of pipes and loudspeakers
Double fixing for added safety and security
Load range: 3-20 kg
Load range: 15-35 kg
Load range: 30-45 kg
Load range: 40-60 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-TAV/4000 G
– SE-TAV/4000 V
– SE-TAV/4000 A
– SE-TAV/4000 R

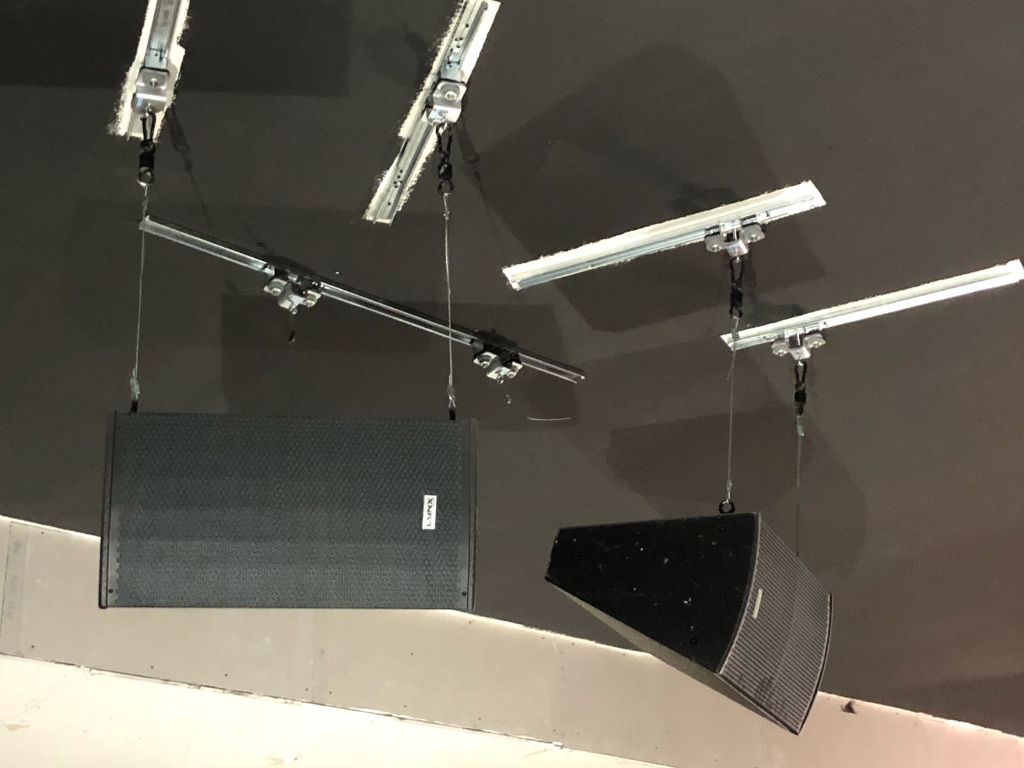

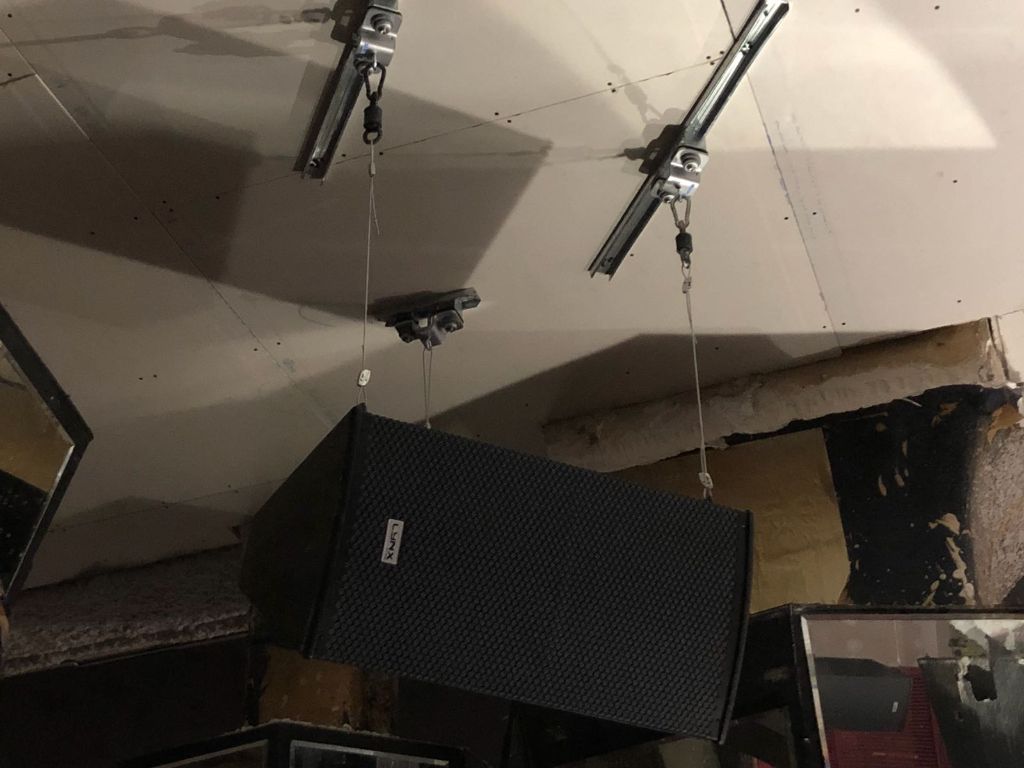

ACTUAL PHOTOS
