![](https://senor.es/wp-content/uploads/2022/01/patentado.png)
Patented

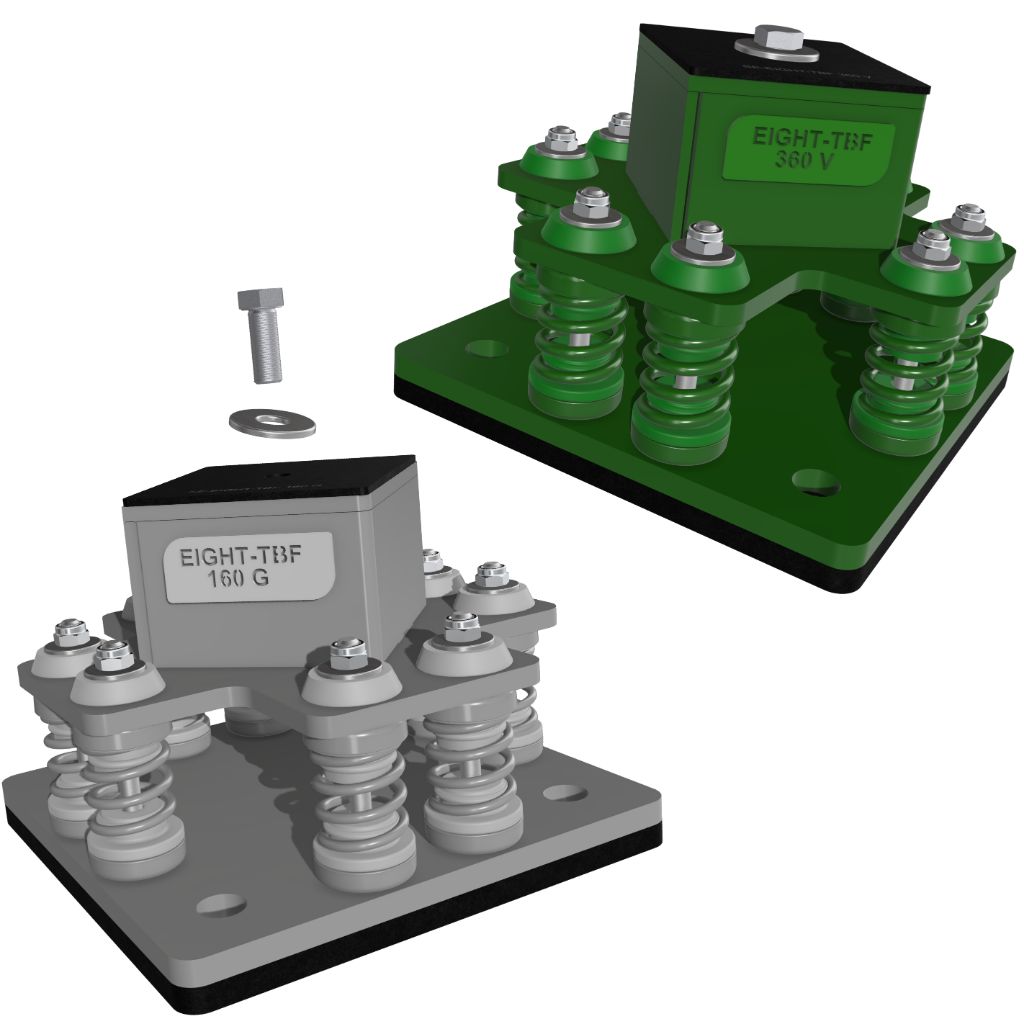

EIGHT-TBF‘s are anti-tilt dampers designed to protect machinery against impact vibrations and shocks in the low, medium and high frequency Hz range
Designed to be mounted on the floor to provide performance and safety. It is designed to be used for heavy-duty precision machinery.

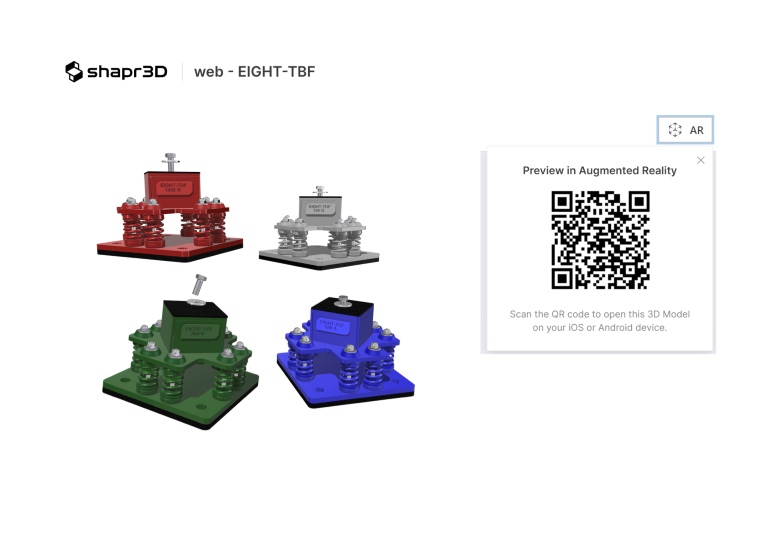

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
– EIGHT-TBF 160 G (Load range 60 – 160 kg)
– EIGHT-TBF 360 V (Load range 125 – 360 kg)
– EIGHT-TBF 600 A (Load range 285 – 600 kg)
– EIGHT-TBF 1000 R (Load range 525 – 1000 kg)
Anti-tilt damper for heavy-duty machines
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
This hybrid system (rubber+spring) is able to attenuate from high to low frequencies.
DAMPER with anti-tilt axle. Allows unidirectional movement in the vertical direction of movement.
Capable of supporting up to 1000 kg
![](https://senor.es/wp-content/uploads/2024/07/soporte-antivibratorio-maquinas-industriales-EIGHT-TBF.png)
![](https://senor.es/wp-content/uploads/2024/05/ICONO-KG.png)
Load range: 60-160 kg
Load range: 125-360 kg
Load range: 285-600 kg
Load range: 525-1000 kg
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FRECUENCIA.png)
Resonance Frequency: 3 – 7 Hz
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FORMATO-CAJA.png)
References:
– SE-EIGHT-TBF 160 G
– SE-EIGHT-TBF 360 V
– SE-EIGHT-TBF 600 A
– SE-EIGHT-TBF 1000 R
ACTUAL PHOTOS
To help you
![](https://senor.es/wp-content/uploads/2024/07/aislador-suelo-SE-EIGHT-TBF-1.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-suelo-SE-EIGHT-TBF-2.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-suelo-SE-EIGHT-TBF-3.jpg)
