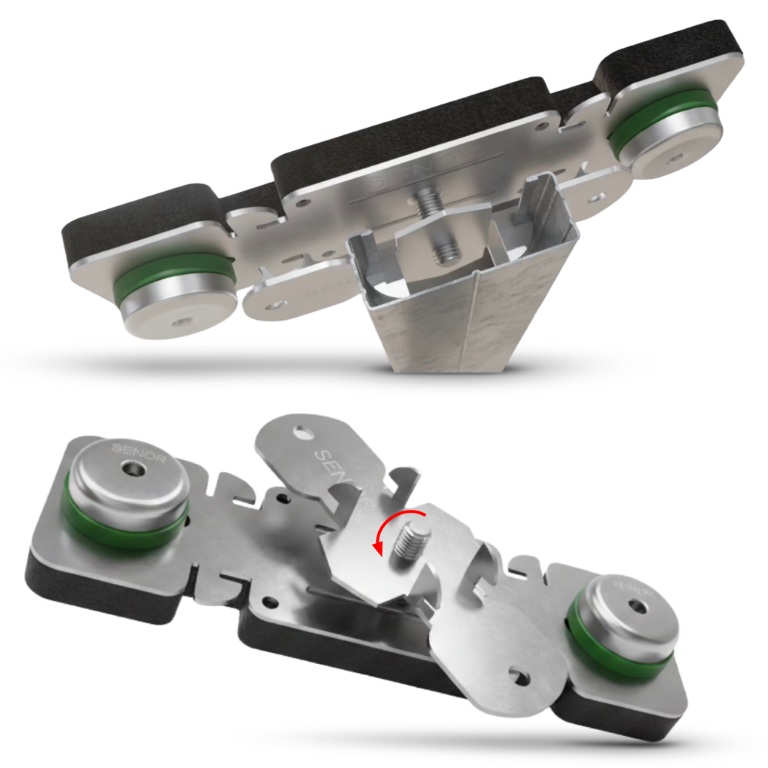

Model FTD-NIVEL 47
THE THINNEST RUBBER VIBRATION-DAMPENING MOUNT WITH ADJUSTABLE FIXING TO TC47 or SIMILAR STEEL PROFILES
UNEVEN CEILINGS ARE NO LONGER A PROBLEM!
Click and move
Patented
P.T. SPAIN – 201531558 (6)
P.T. FRANCE – 16/59682
The FTD-NIVEL 47 is a very thin damper for reduced spaces with a levelling system and direct fixing to the 45/48 mm wall channel. It builds acoustic walls with the minimum effort, obtaining acoustic improvements to airborne noise of more than 12 dB with proven results.
✓ Available for WALL profiles from 45 to 48 millimeters.
✓ Leveling system (Nivel-47) for a fast installation.
✓ FTD-NIVEL 47 (Load range from 3 up to 25 kg)
There are several references depending on the length required:
- SE-FTD NIVEL 47 (standard): with 2,5 cm screw and adjustment of 0 – 20 mm
- SE-FTD NIVEL 47 T50: with 5 cm screw and adjustment of 0 – 45 mm
- SE-FTD NIVEL 47 T80: with 8 cm screw and adjustment of 0 – 75 mm
- SE-FTD NIVEL 47 T160: with 16 cm screw and adjustment of 0 – 155 mm
Installation video
Promotional video
Rubber mount for walls with leveling system
Here you can download the installation manual
Installation manual FTD-NIVEL 47
Product registered in the Spanish Patents and Trademarks Office
The leveller accesory levels the unevennes at crooked original walls
Soundproofing is possible wasting the minimum loss of space required.
Ease and speed of installation
Double fixing to the wall (resistant in case of fire thanks to the cups and screws).
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-FTD NIVEL 47: 50 units
– SE-FTD NIVEL 47 – C15: 15 units
– SE-FTD NIVEL 47 T50: 40 units
– SE-FTD NIVEL 47 T80: 30 units
– SE-FTD NIVEL 47 T160: 40 units
Test Report Nº: B2020-LACUS-IN-122-4 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 30 October 2020
Sample: CHOVA+SENOR DIRECT ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 6.2 cm
Sample Description: Direct wall lining system comprising: SE-FTD OMEGA dampers (SENOR) + SE-BEC-10×100 acoustic strip (SENOR) + omega profiles (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 15 mm Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 12.5 mm Plasterboard (KNAUF).
Note: For the FTD-NIVEL 47 product, the acoustic results obtained in this test is also valid, as both products share the same base structure (metal+EPDM) and polymers.
Result: An improvement of 13 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 61 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Construction detail
