The Slimmest Damper for Wall Lining using TC-45/48 Steel Profiles

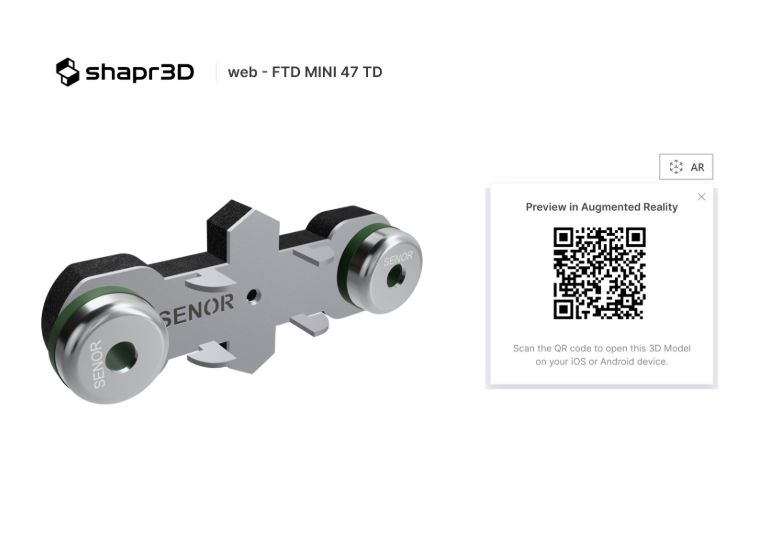

Model FTD-MINI-47/TD
THE SLIMMEST ANTIVIBRATION DAMPER FOR WALL LINING USING TC-45/48 STEEL PROFILES
DOES NOISES BOTHER YOU? WE HAVE THE SOLUTION FOR YOU
FTD-MINI-47/TD is an excellent and the thinnest anti-vibration mount on the market, it is the present and future solution for small spaces. This new product is capable of improving airborne noise by more than 12 dBA.
WITH ALREADY TESTED RESULTS!
PATENTED SYSTEM!
Clica y mueve
Patented
P.T. 202230954
The FTD-MINI-47/TD is a unique damper delivering outstanding acoustic performance for acoustic wall lining applications with TC-47 profiles. It is the present and the future solution to soundproofing small spaces, obtaining better acoustic enhancement to airborne noise of more than 12 dBA.

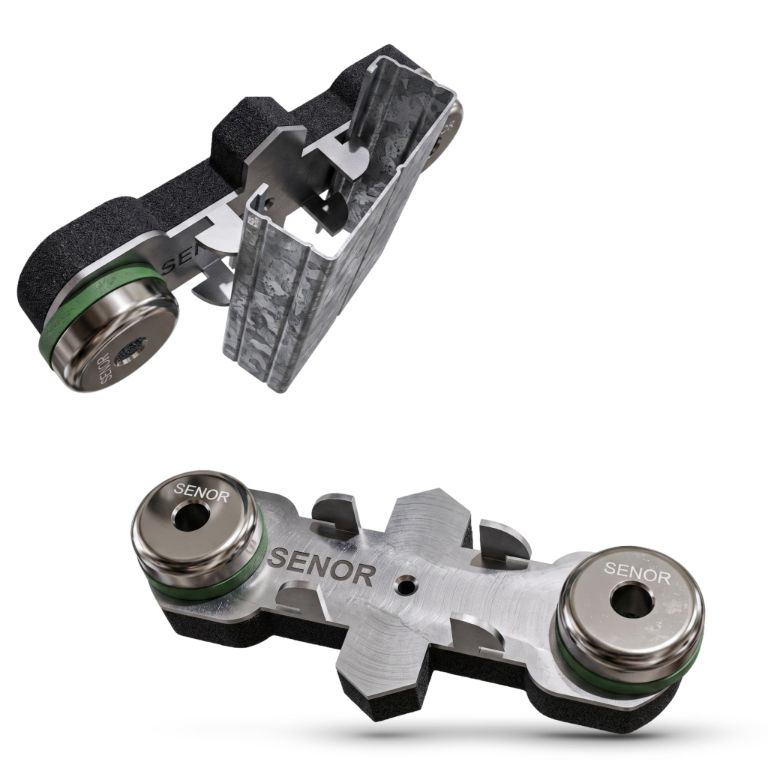

It also has a major advantage due to it´s quick catch; called CLIP STOP, providing quality, performance and safety to TC-45/48 mm wide and 17 mm high metal channel profiles that are used for plasterboard applications.
✓ Available for profiles TC-45/48 – 45 to 48 millimetres.
✓ Is space an issue? It is the thinnest antivibration hanger on the market.
* FTD-MINI-47/TD (Load range from 3 a 25 kg)
Installation video
THE SLIMMEST ANTIVIBRATION DAMPER FOR WALL LINING USING TC-45/48 STEEL PROFILES
Here you can download the installation manual
Installation manual FTD-MINI-47/TD
Product registered in the Spanish Patents and Trademarks Office
Minimum loss of space during installation
Quick locking fixation (clip stop) for infinite security
Double fixing, fire resistant thanks to the metal cup and screws
Offers acoustic improvements to airborne noise of more than 12 dB (system tested in a laboratory)
Ultra-fast installation
Provides ELASTICITY to plasterboard installations
Compatible with acoustic ceilings and wall insulations
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Breaking point >= 130 kg
Box format:
– SE-FTD MINI-TD/47: 75 units
– SE-FTD MINI-TD/47-C25: 25 units
Test Report Nº: 110909-620 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2022 and 10140-2:2022
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 15 April 2024
Sample: DANOSA+SENOR DIRECT ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 9 cm

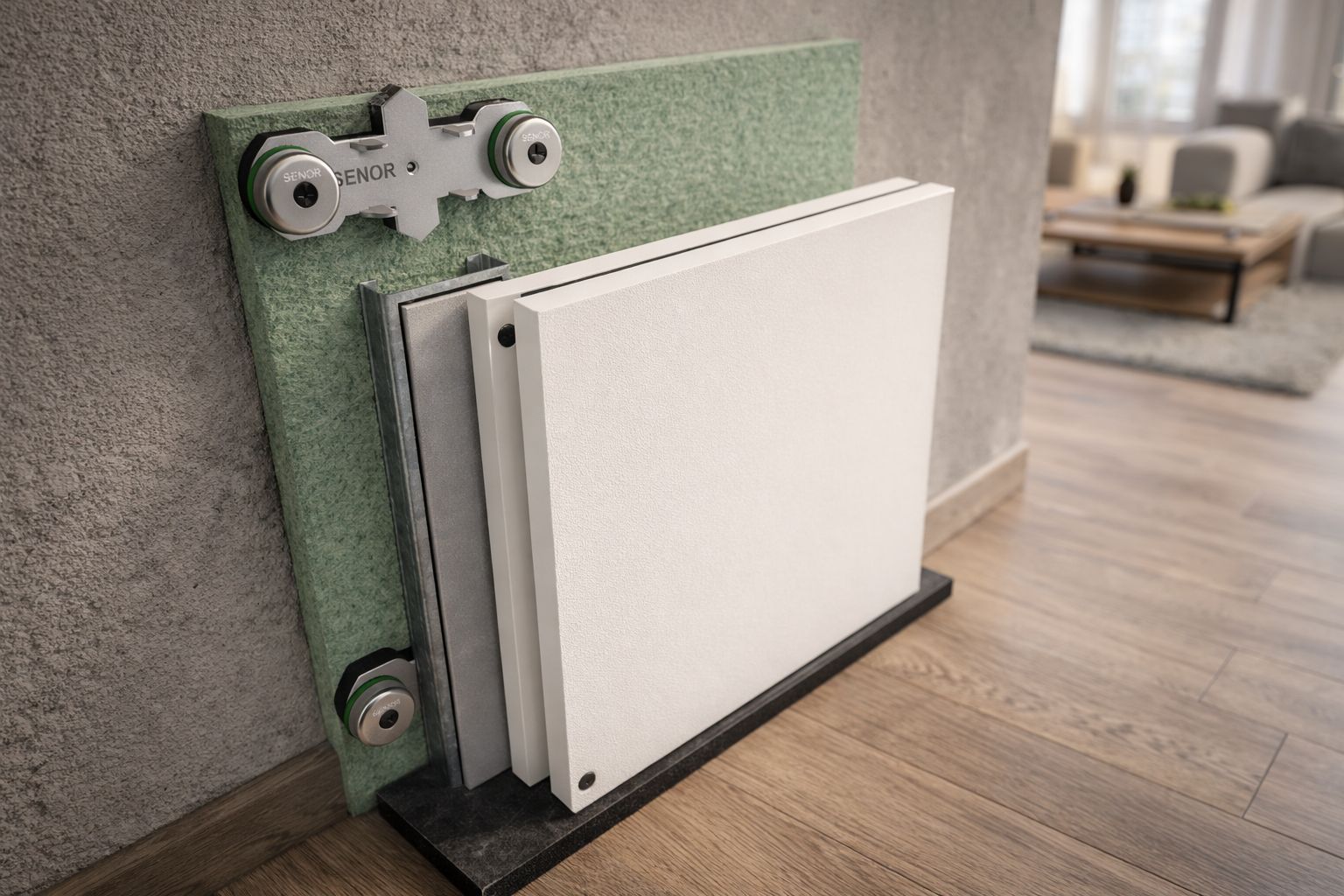

Sample Description: Direct wall lining system comprising: SE-FTD MINI 47 dampers (SENOR) + SE-BEC-8×80 acoustic strip (SENOR) + TC-45/48 profiles (PLACO) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + DANOFON multilayer component (DANOSA) + 12.5 mm Plasterboard (PLACO) + 4 mm M.A.D.4 acoustic membrane (DANOSA) + 12.5 mm Plasterboard (PLACO).
Result: An improvement of 12 dB in airborne sound compared to the base wall, which has a rating of 47 dB, resulting in a total soundproofing of 59 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Actual photos
