Model TCM
HYBRID DAMPER FOR SUSPENDED MACHINES
It is a different and renewed, high-performance HYBRID damper. Manufactured with the most advanced technology and designed for direct attachment of the equipment without using extra accessories.
ACCESSORIES ARE A THING OF THE PAST!
Clica y mueve
Patented
TCM is a damper for direct attachment to machines without the need to use tools such as nuts and washers. The TCM incorporates an ultra-fast levelling system thanks to its levelling cup (CN), reducing the cost of installation. This type of acoustic isolator is designed to eradicate and attenuate the transmission of vibrations produced by equipment with rotating and repetitive strokes above 400 rpm.
✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).
✓ Spring: steel spiral manufactured according to DIN 2095 -UNE EN 10270, with EPOXI treatment.
✓ Resonance frequency: 3 – 7 Hz
✓ Available metric: M8

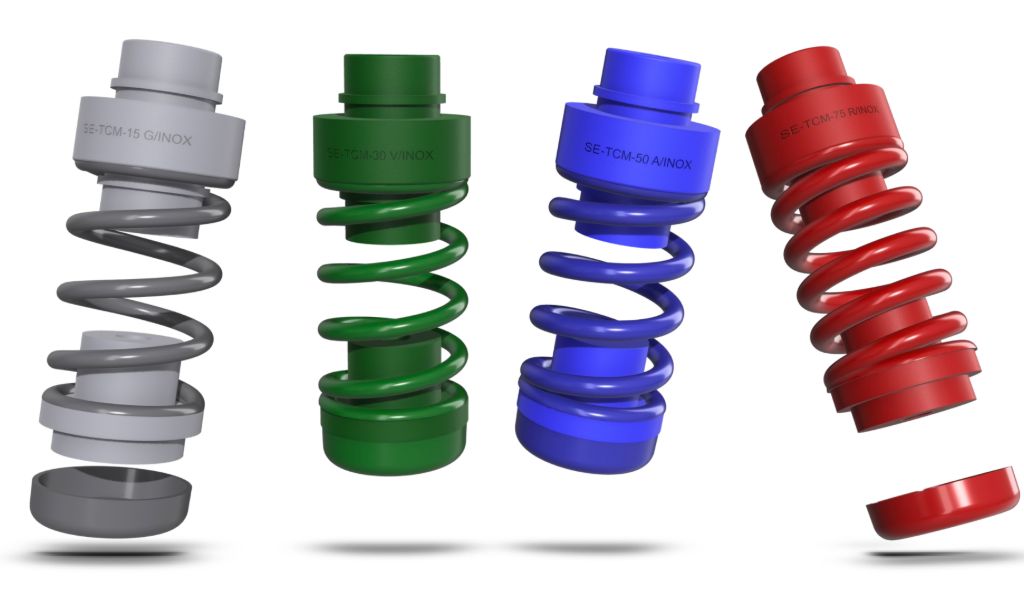

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
– TCM-15 G/INOX/M8 (Load range 3 – 15 kg)
– TCM-30 V/INOX/M8 (Load range 15 – 30 kg)
– TCM-50 A/INOX/M8 (Load range 30 – 50 kg)
– TCM-75 R/INOX/M8 (Load range 50 – 75 kg)
It is a different and renewed, high-performance HYBRID damper. Manufactured with the most advanced technology and designed for a direct fixing of the equipment without using extra accessories thanks to its levelling device (CN).
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Hybrid system to cover a wider range of frequencies
Quick and easy installation
Reduced installation costs
Load range: 3-15 kg
Load range: 15-30 kg
Load range: 30-50 kg
Load range: 50-75 kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TCM-15 G/INOX/M8
– SE-TCM-30 V/INOX/M8
– SE-TCM-50 A/INOX/M8
– SE-TCM-75 R/INOX/M8
ACTUAL PHOTOS
To help you
Need more help?
WE WILL BE IN TOUCH WITH YOU AS SOON AS POSSIBLE

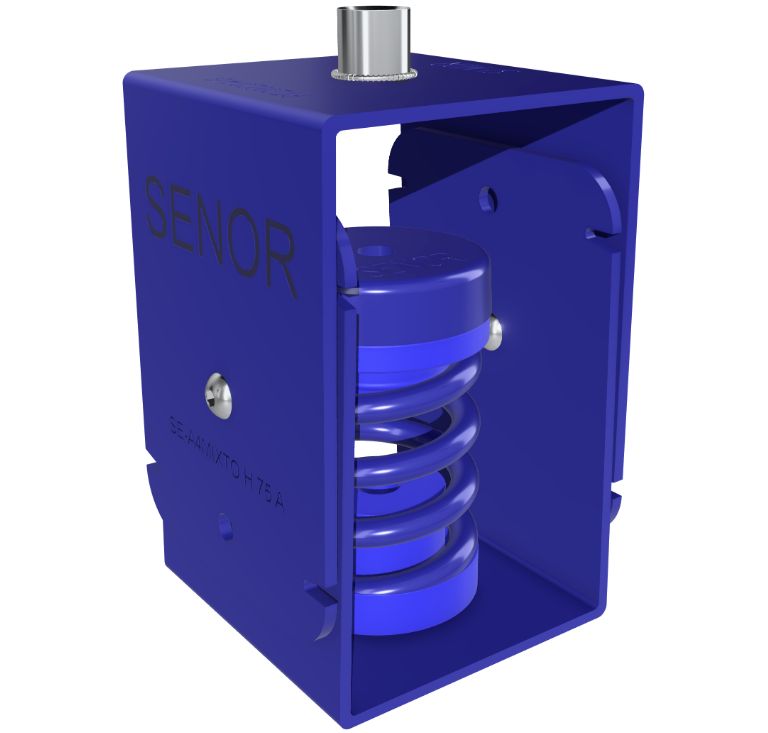

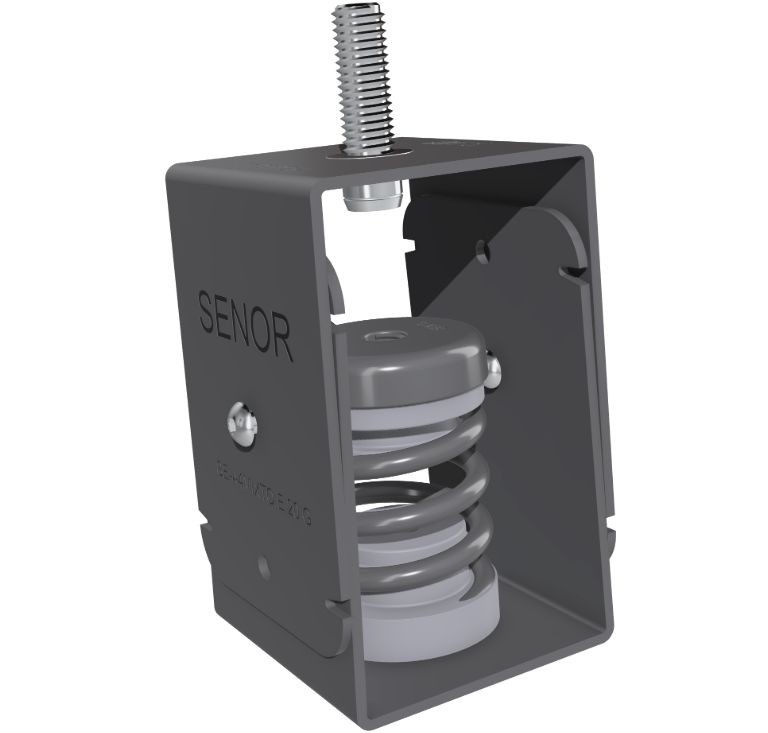

Related products
