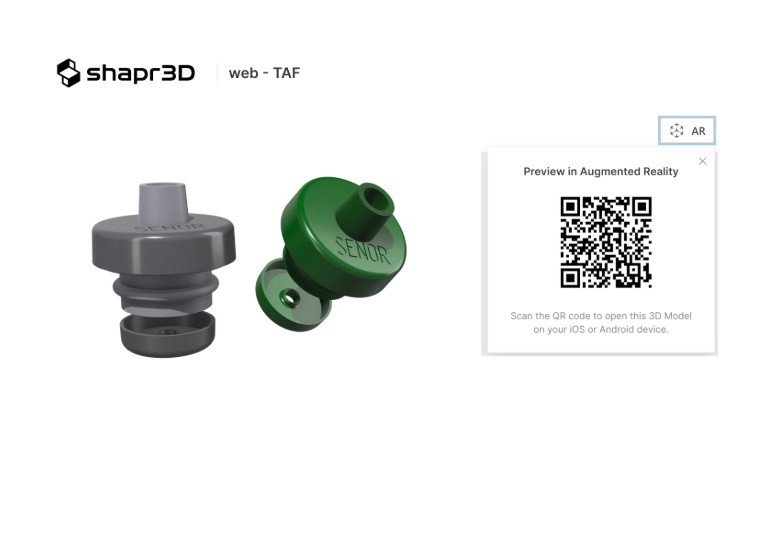

Model TAF
RUBBER DAMPER FOR MACHINES HANGED UNDER CONCRETE SLABS.
It is a different and renewed, high-performance RUBBER damper. Manufactured with the most advanced technology and designed for a direct fixing of the equipment without using extra accessories.
ACCESSORIES ARE A THING OF THE PAST!
Clica y mueve
Patented
TAF is a damper for direct attachment to machines without the need to use tools such as nuts and washers. The TAF incorporates an ultra-fast levelling system thanks to its levelling cup (CN), thus reducing installation costs. These products are designed to eradicate and attenuate the transmission of vibrations produced by shocks, impacts and vibro-mechanical energies coming from equipment working above the threshold of the audible field (1200 rpm or 20 Hz), obtaining a degree of isolation of more than 95%.
✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).
✓ Resonance frequency: 7-15 Hz
✓ Available metric: M8
There are 2 references differentiated by load range and colour: Grey and Green.
* TAF 10 G (Load range 3 – 10 kg)
* TAF 20 V (Load range 8 – 20 kg)
It is a different and renewed, high-performance RUBBER damper. Manufactured with the most advanced technology and designed for a direct fixing of the equipment without using extra accessories thanks to its levelling device (CN).
Here you can download the installation manual
Product registered in the Spanish Patents and Trademark Office.
Installation without the need for accessories (nuts and washers)
Excellent acoustic results >95%
Quick and easy levelling thanks to its CN
Reduced installation COSTS
Load range: 3-10 kg
Load range: 8-20 kg
Resonance Frequency: 7 – 15 Hz
References:
– SE-TAF-10 G/M8
– SE-TAF-20 V/M8
