Model
TAV-8000/INOX
HYBRID DAMPER WITH MORE EFFECTIVE ANTI-TILT SYSTEM FOR VIBRATION PROTECTION OF FLOOR-MOUNTED MACHINES
Clica y mueve
Patented
TAV-8000/INOX is a high-performance hybrid damper, manufactured with more advanced technology and renewed raw materials. It has a hybrid system, which is the result of combining the most advanced polymer with a helical steel spiral.
✓ Helical spring: Manufactured using a steel spiral according to DIN 2095-UNE EN 10270, with a rustproof finish and metallic red EPOXI coating.
✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).

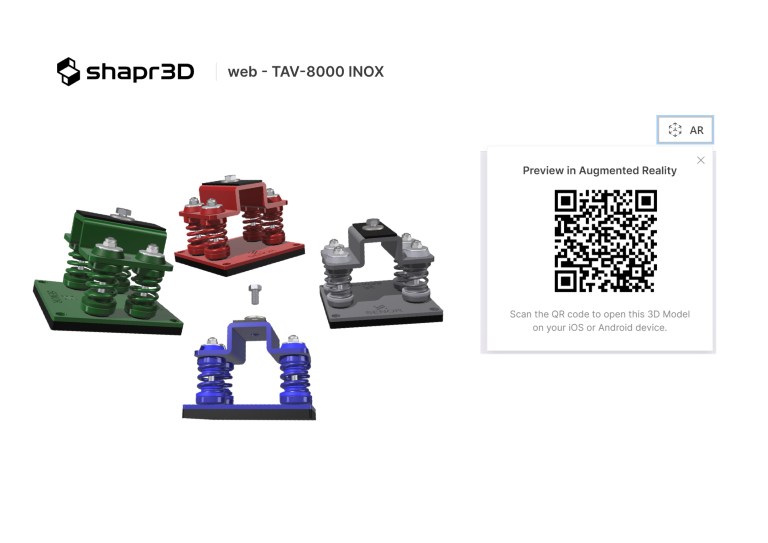

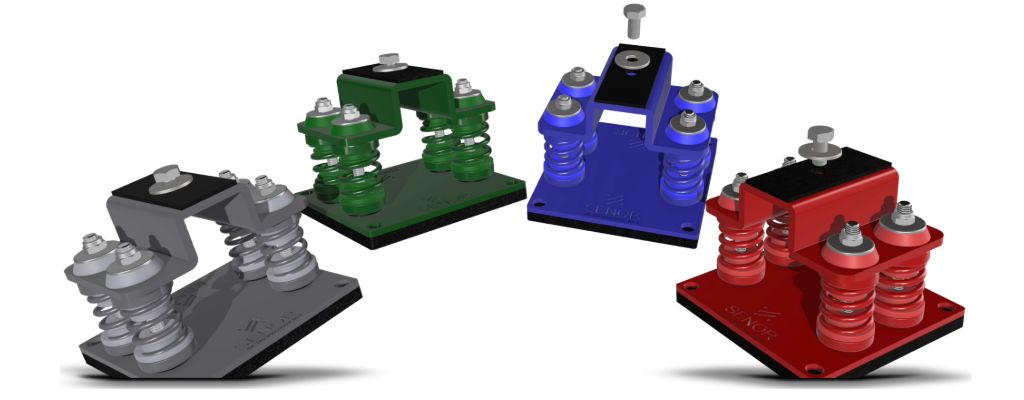

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
– TAV-8000/INOX 80G (Load range 12 – 80 kg)
– TAV-8000/INOX 180 V (Load range 60 – 180 kg)
– TAV-8000/INOX 300 A (Load range 120 – 300 kg)
– TAV-8000/INOX 480 R (Load range 240 – 480 kg)
Hybrid damper with anti-tilt for floor-mounted equipment
Data Sheet TAV-8000/INOX 300 A
Data Sheet TAV-8000/INOX 480 R
Here you can download the installation manual
Installation manual TAV-8000/INOX
Product registered in the Spanish Patents and Trademark Office.
Hybrid rubber+spring system to cover a wider range of frequencies
Quick and easy installation
Available in M10, M12 (standard), M14 and M16
Load range: 12-80 kg
Load range: 60-180 kg
Load range: 120-300 kg
Load range: 240-480 kg
Resonance Frequency: 3 – 7 Hz
References:
– SE-TAV-8000/INOX 80 G
– SE-TAV-8000/INOX 180 V
– SE-TAV-8000/INOX 300 A
– SE-TAV-8000/INOX 480 R
