Patented
TAV-4000/INOX is a high-performance hybrid damper, manufactured with more advanced technology and renewed raw materials. It has a hybrid system, which is the result of combining the most advanced polymer with a helical steel spiral.
✓ Helical spring: Manufactured using a steel spiral according to DIN 2095-UNE EN 10270, with a rustproof finish and metallic red EPOXI coating.
✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).

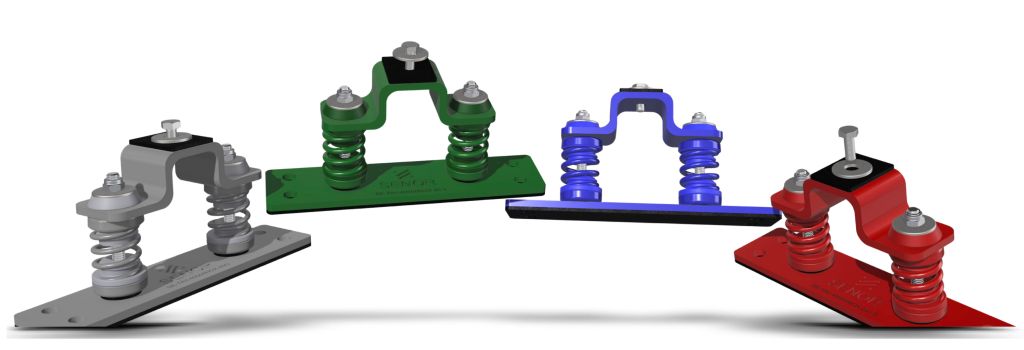

There are 4 references differentiated by load range and colour:
– TAV-4000/INOX 40G (Load range 6 – 40 kg)
– TAV-4000/INOX 90 V (Load range 30 – 90 kg)
– TAV-4000/INOX 150 A (Load range 60 – 150 kg)
– TAV-4000/INOX 240 R (Load range 120 – 240 kg)
Hybrid damper with anti-tilt system for floor- mounted equipment
Here you can download the installation manual
Installation manual TAV-4000/INOX
Product registered in the Spanish Patents and Trademark Office.
Hybrid rubber+spring system to cover a wider range of frequencies
Quick and easy installation
Available in M8, M10, M12 (standard), M14 and M16
![](https://senor.es/wp-content/uploads/2024/07/soporte-antivibratorio-motor-TAV4000-INOX.png)
![](https://senor.es/wp-content/uploads/2024/05/ICONO-KG.png)
Load range: 6-40 kg
Load range: 30-90 kg
Load range: 60-150 kg
Load range: 120-240 kg
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FRECUENCIA.png)
Resonance Frequency: 3 – 7 Hz
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FORMATO-CAJA.png)
References:
– SE-TAV-4000/INOX 40 G
– SE-TAV-4000/INOX 90 V
– SE-TAV-4000/INOX 150 A
– SE-TAV-4000/INOX 240 R
Need more help?
WE WILL BE IN TOUCH WITH YOU AS SOON AS POSSIBLE
Related products
CERTIFICATE ISO 9001
SENOR guarantees through its international certificate that we comply with quality standards, being an organization with an effective quality management system, identifying areas for improvement and taking measures to progress in them. Our goal is to provide the best service to our customers.
![](https://senor.es/wp-content/uploads/2022/01/veritas_03.png)
![](https://senor.es/wp-content/uploads/2023/09/maquina-pesad.png)
For Industrial Machines
![](https://senor.es/wp-content/uploads/2022/11/db-icono.001.png)
Degree of Insulation:
> 95%
