Patented

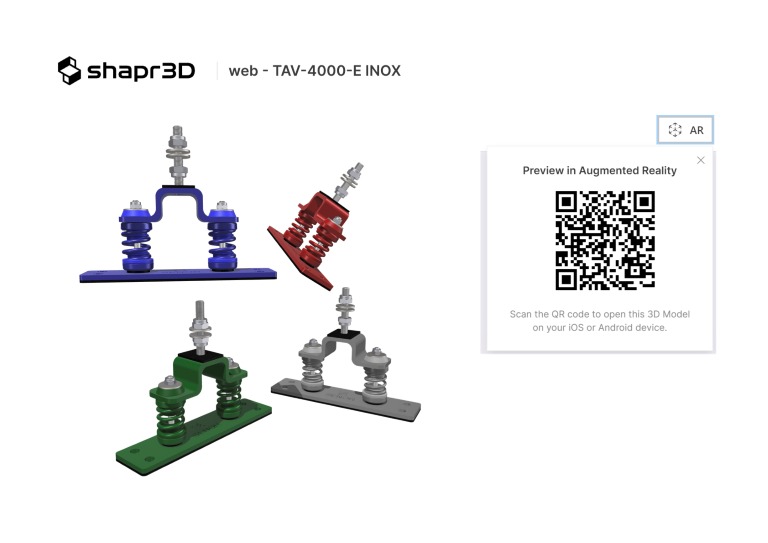

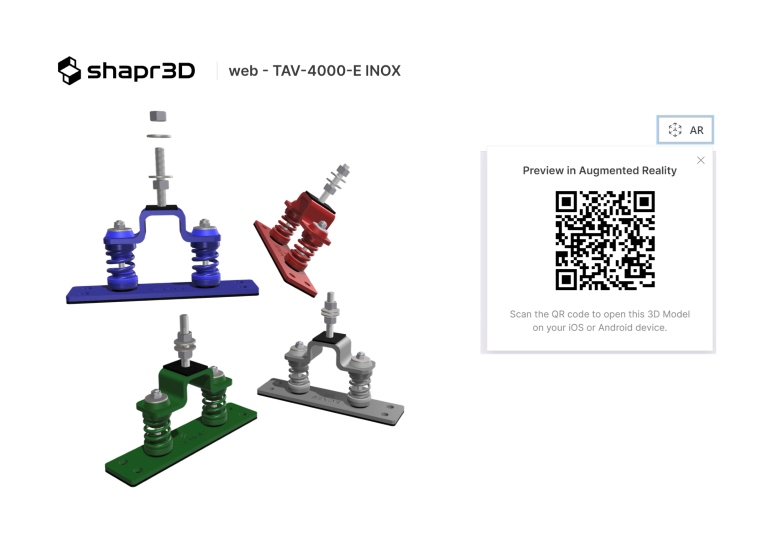

TAV-4000-E/INOX is a high-performance hybrid damper, manufactured with more advanced technology and renewed raw materials. It has a hybrid system, which is the result of combining the most advanced polymer with a helical steel spiral. It features a stud that allows the equipment to be regulated.
✓ Helical spring: Manufactured using a steel spiral in accordance with DIN 2095-UNE EN 10270, with a rustproof finish and metallic red EPOXI coating.
✓Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009).

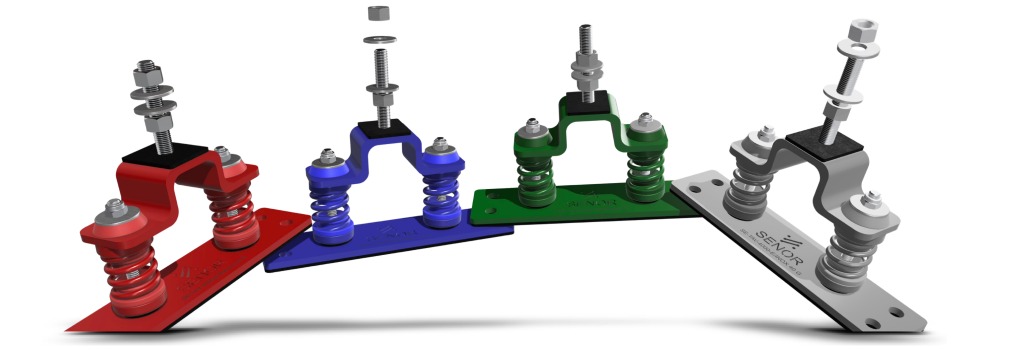

There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
– TAV-4000-E/INOX 40 G (Load range 6 – 40 kg)
– TAV-4000-E/INOX 90 V (Load range 30 – 90 kg)
– TAV-4000-E/INOX 150 A (Load range 60 – 150 kg)
– TAV-4000-E/INOX 240 R (Load range 120 – 240 kg)
Here you can download the installation manual
Installation manual TAV-4000-E/INOX
Product registered in the Spanish Patents and Trademark Office.
Hybrid rubber+spring system to cover a wider range of frequencies
Quick and easy installation
Available in M8, M10, M12 (standard), M14 and M16
Adjustment system by using stud bolts, nuts and washers
![](https://senor.es/wp-content/uploads/2024/07/soporte-antivibratorio-motor-TAV4000-E-INOX.png)
![](https://senor.es/wp-content/uploads/2024/05/ICONO-KG.png)
Load range: 6-40 kg
Load range: 30-90 kg
Load range: 60-150 kg
Load range: 120-240 kg
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FRECUENCIA.png)
Resonance Frequency:3 – 7 Hz
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FORMATO-CAJA.png)
References:
– SE-TAV-4000-E/INOX 40 G
– SE-TAV-4000-E/INOX 90 V
– SE-TAV-4000-E/INOX 150 A
– SE-TAV-4000-E/INOX 240 R
ACTUAL PHOTOS
To help you
![](https://senor.es/wp-content/uploads/2024/07/aislador-grupo-electrogeno-SE-TAV4000-E-INOX-1.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-grupo-electrogeno-SE-TAV4000-E-INOX-3.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-grupo-electrogeno-SE-TAV4000-E-INOX-2.jpg)
