![](https://senor.es/wp-content/uploads/2022/01/patentado.png)
Patented

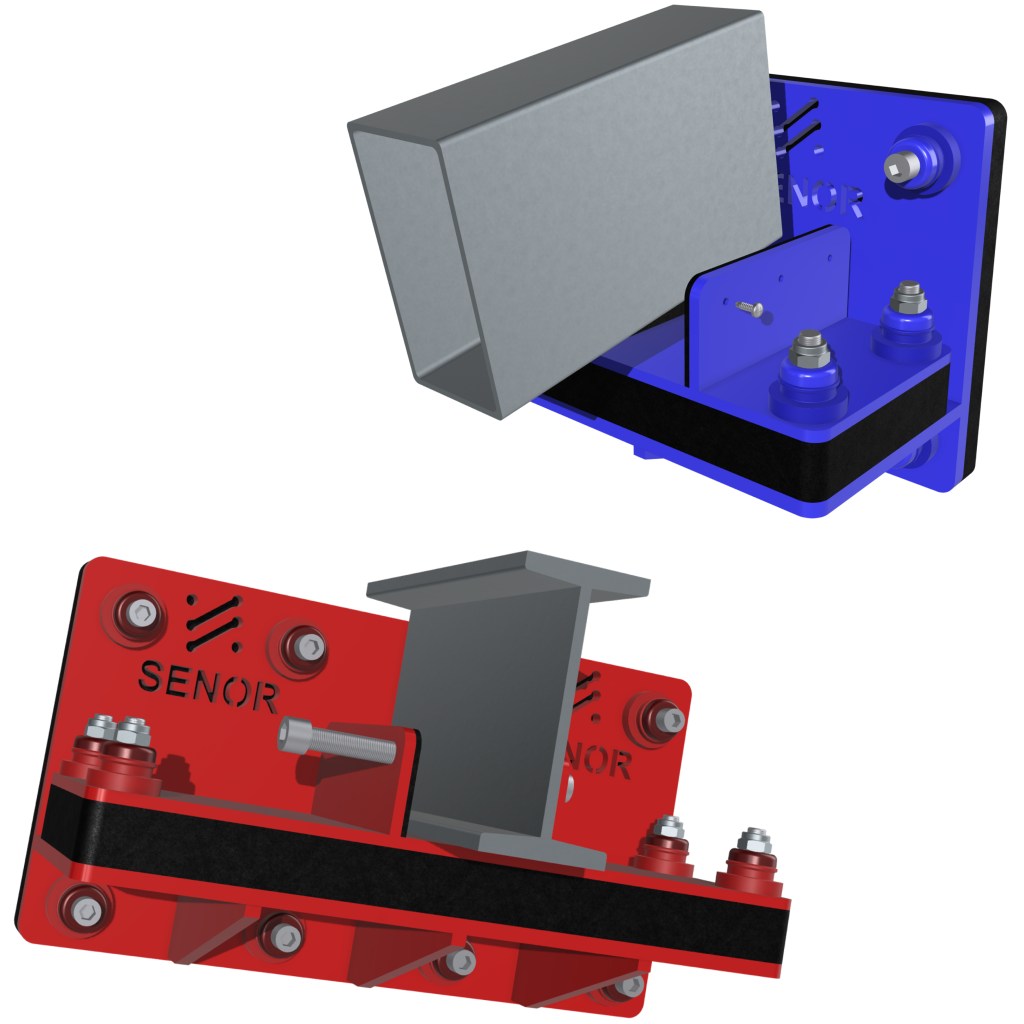

PLM VERTICAL are the latest generation carbon steel wall plates for concrete wall installations. They make it possible to desolarise and insulate all types of auxiliary structures in the architectural areas of the building (walls, pillars, etc.).
This new ‘PLM VERTICAL’ series has a large number of accessories to make ‘the impossible possible’ (quick fixing, safety stops, height extensions, etc.). Making it a Heteroclite product.
✓EPDM CR-140/BEC-10 STRIP; generates a perfect bond with the original wall and at the same time, provides a high degree of vibration isolation in the mid frequency Hz range.
✓ Polymer: KRAIBURG-TPE (Test system according to UNE-EN ISO 10846-1:2009)
✓ Resonant frequency: 8-15 Hz.

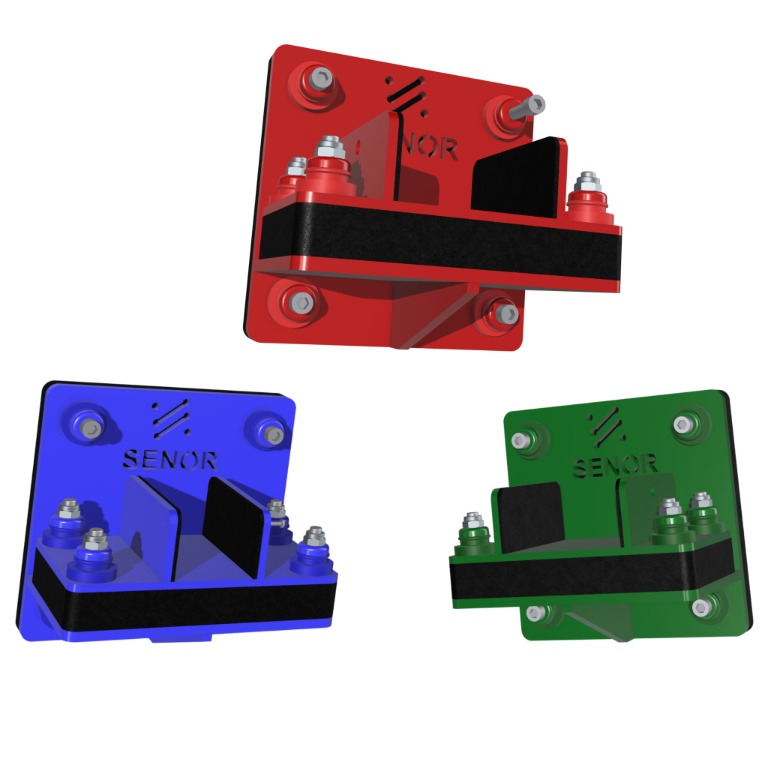

Currently there are 5 standard references, but they can be modified according to the customer’s needs: Green, Blue and Red
* PLM VERTICAL 200 V (Load range 50 – 200 kg)
* PLM VERTICAL 500 A (Load range 200 – 500 kg)
* PLM VERTICAL 800 R (Load range 400 – 800 kg)
* PLM VERTICAL 1200 R (Load range 750 – 1200 kg)
* PLM VERTICAL 1600 R (Load range 1100 – 1600 kg)
Placa acústica con anclaje a muro adaptable para cualquier tipo de perfil y fabricada en distintos rangos de cargas
Data Sheet PLM VERTICAL-1600 R
Here you can download the installation manual
Installation manual PLM VERTICAL
Product registered in the Spanish Patents and Trademark Office.
Total separation of the fastening screws
Adaptable to all types of profiles and different load ranges.
Anti-tilt safety device.
![](https://senor.es/wp-content/uploads/2024/07/soporte-antivibratorio-placa-anclaje-muro-PLM-VERTICAL.png)
![](https://senor.es/wp-content/uploads/2024/05/ICONO-KG.png)
Load range: 50-200 kg
Load range: 200-500 kg
Load range: 400-800 kg
Load range: 750-1200 kg
Load range: 1100-1600 kg
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FRECUENCIA.png)
Resonance Frequency: 7 – 15 Hz
![](https://senor.es/wp-content/uploads/2024/05/ICONO-FORMATO-CAJA.png)
References:
– SE-PLM VERTICAL 200 V
– SE-PLM VERTICAL 500 A
– SE-PLM VERTICAL 800 R
– SE-PLM VERTICAL 1200 R
– SE-PLM VERTICAL 1600 R
ACTUAL PHOTOS
To help you
![](https://senor.es/wp-content/uploads/2024/07/aislador-pared-SE-FTV-MURAL-1-1.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-pared-SE-FTV-MURAL-4-1.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-pared-SE-FTV-MURAL-3-1.jpg)
![](https://senor.es/wp-content/uploads/2024/07/aislador-pared-SE-FTV-MURAL-2-1.jpg)
Need more help?
WE WILL BE IN TOUCH WITH YOU AS SOON AS POSSIBLE
Related products
CERTIFICATE ISO 9001
SENOR guarantees through its international certificate that we comply with quality standards, being an organization with an effective quality management system, identifying areas for improvement and taking measures to progress in them. Our goal is to provide the best service to our customers.
![](https://senor.es/wp-content/uploads/2022/01/veritas_03.png)
![](https://senor.es/wp-content/uploads/2023/11/Pasted-Graphic.png)
Exclusive for Concrete Wall Mounting
![](https://senor.es/wp-content/uploads/2022/11/db-icono.001.png)
Degree of Insulation:
> 95%
