The ultimate hybrid damper for the suspension of acoustic partitions walls
Model 9600 TBM2
SPECIAL HYBRID DAMPER FOR DOUBLE-STRUCTURED PARTITION WALLS
9600/TBM2 model has been especially designed for the installation of partition walls with double structure in places where the sound spectrum is full of low frequencies (like cinema, nightclubs, pubs, industrial activity, etc.).
BY APPLYING THIS NEW PRODUCT RANGE, NOISE WILL BE A THING OF THE PAST! SAY NO TO NOISE
Click and move
Patented

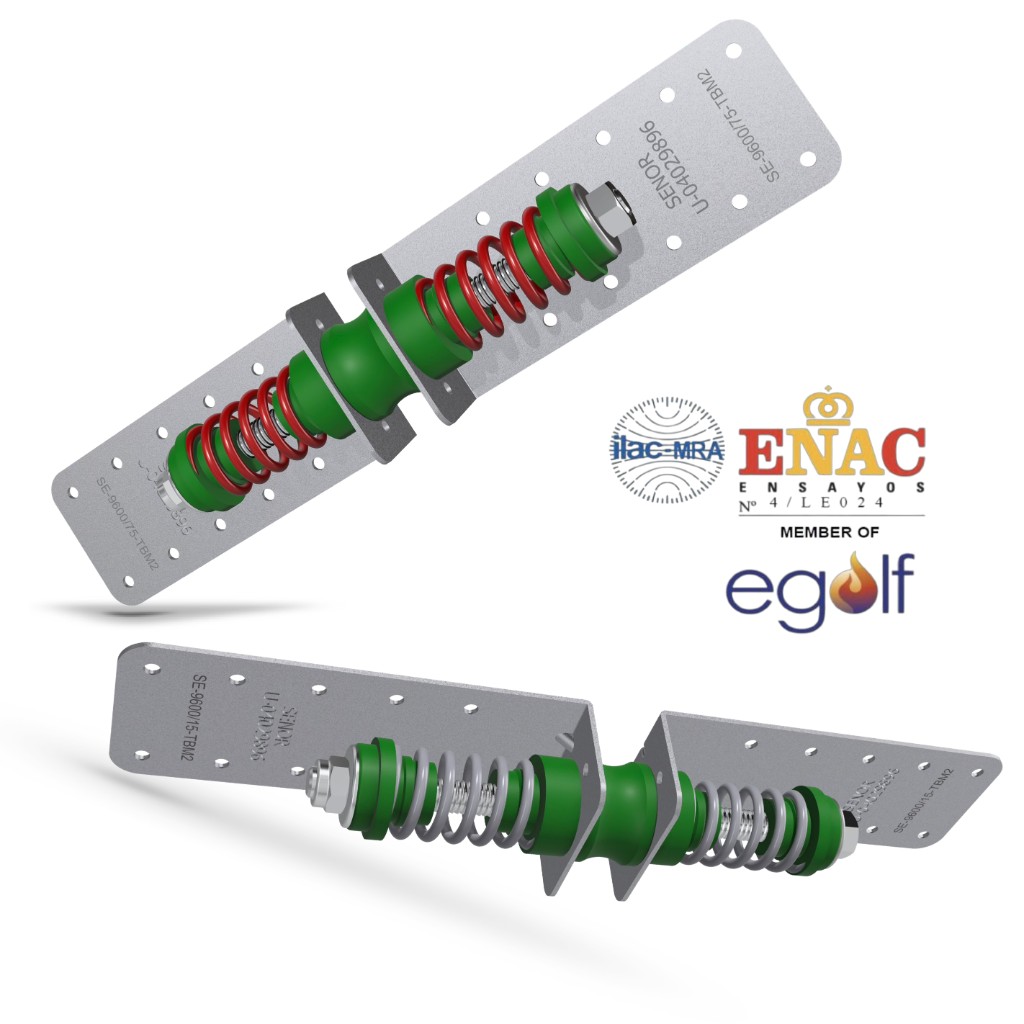

Its design has a double function of vibration isolation of the partition wall. The innovative system allows the extension brackets to work freely in both directions during the deformation of the springs and rubbers. This allows the elastic element in question to always work in axial compression.
There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
✓ 9600/15-TBM2 (Load range from 3 up to 15 kg)
✓ 9600/30-TBM2 (Load range from 15 up to 30 kg)
✓ 9600/50-TBM2 (Load range from 30 up to 50 kg)
✓ 9600/75-TBM2 (Load range from 50 up to 75 kg)
Installation video
SPRING + RUBBER wall mount for partition wall lining systems
Product registered in the Spanish Patents and Trademark Office
SAFETY DEVICE composed of a metal shaft and two washers
Soundproofing of low and medium frequencies thanks to the combination of rubber + spring
Metal brackets with 1.5 mm thickness and 10 holes
Load Range: 3-15 kg
Load Range: 15-30 kg
Load Range: 30-50 kg
Load Range: 50-75 kg
Resonance frequency: 3 – 7 Hz
Box format:
– SE-9600/15-TBM2/25: 25 units
– SE-9600/30-TBM2/25: 25 units
– SE-9600/50-TBM2/25: 25 units
– SE-9600/75-TBM2/25: 25 units
Test report Nº: 112780-781 A
Objetive: Airborne Noise Soundproofing Test
Quality Standards: UNE-EN ISO 10140-2:2022
Laboratory: TECNALIA (Vitoria)
Date: 11 July 2024
Sample: SENOR+PLACO HIGH PERFORMANCE ACOUSTIC PARTITION WALL WITH DOUBLE STRUCTURE EI180 (‘3PPF15+M90 LM/600+SE-9600+M90 LM/600+3PPF15’)
Sample dimensions: 3.6 m length x 2.8 m width = 10.08 kg/m².
Estimated mass: 78 kg/m²
Total partition wall thickness: 36,8 cm
Sample description: acoustic partition wall with double self-supporting structure formed with SE-9600/TBM2 dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC acoustic strip (SENOR) + 90 mm channels and studs (PLACO) + SE-MONT-BICAPA-40 uncoupling strip (SENOR) + ARENA APTA mineral wool (ISOVER) + 3 x 15 mm fire-rated PYL (PLACO)
Result: total insulation 76dB
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Test report Nº : 112604-001
Objetive: Ensayo de Resistencia al Fuego
Quality Standars: EN 1363-1:2020, EN 1364-1:2015 y EN 13501-2:2023
Laboratory: TECNALIA (Azpeitia – Guipúzcoa)
Date: 23 October 2024
Sample: SENOR+PLACO HIGH PERFORMANCE ACOUSTIC WALL LINING WITH DOUBLE STRUCTURE EI180 (‘3PPF15+M90 LM/600+SE-9600+M90 LM/600+3PPF15’)
Samples dimensions: 3 m width x 3 m height
Test duration: 222 minutes. An integrity failure occurs at minute 222.
Description of the sample: acoustic wall ining with double self-supporting structure formed with SE-9600/TBM2 dampers (SENOR) + SE-TAV-500/11A and 11R acoustic plugs (SENOR) + SE-BEC-10×135 acoustic strip (SENOR) + 90 mm channels and studs (PLACO) + SE-MONT-BICAPA-40 uncoupling band (SENOR) + ARENA APTA mineral wool (ISOVER) + 3 x 15 mm fire-rated PYL (PLACO)
Field of direct application (changes or variants permitted):
– WIDTH: unlimited
– HEIGHT: up to 1 metre higher than the test sample, that is, up to 4 metres
– Further permitted variants are listed in the Classification Report.
Result: Fire resistance classification: EI180 E180Fire
Fire resistance test report according to EN 1364-1:2015
Informe clasificación al fuego según EN 13501-2:2016
Technical Study Report E-115231-001: based on the present study it is considered that the height of the wall lining can be increased to 12 m for an EI90 classification.
