The most advanced hybrid damper for suspension of acoustic ceilings
Model T2000/HIBRIDO
HYBRID DAMPER WITH ULTRA-FAST ADAPTATION TO THE LATERAL SIDE OF WOODEN BEAMS.
It is a HYBRID damper for the suspension of acoustic suspended ceilings with metal structure under wooden beams
Click and move
Patented
T2000/HIBRIDO is an ultra-fast vertical suspension designed to eradicate and attenuate the transmission of vibrations produced by equipment with rotating and repetitive hits above 20 Hz.
There are 4 references differentiated by load range and colour: Grey, Green, Blue and Red.
✓ T2000/HÍBRIDO 15 G (Load range from 3 up to 15 kg)
✓ T2000/HÍBRIDO 25 V (Load range from 15 up to 30 kg)
✓ T2000/HÍBRIDO 50 A (Load range from 30 up to 50 kg)
✓ T2000/HÍBRIDO 75 R Load range from 50 up to 75 kg)

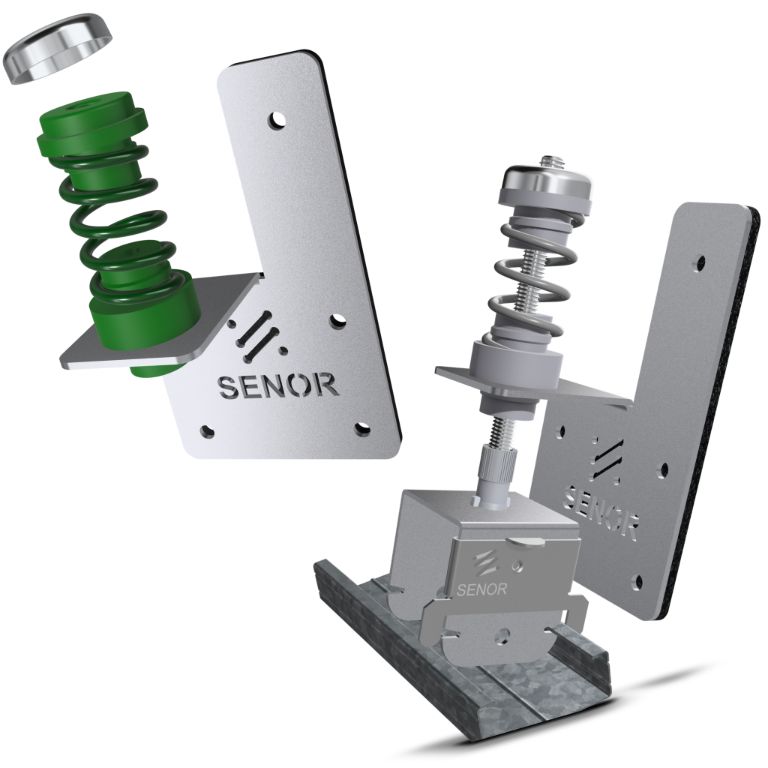

HYBRID hanger of rubber + spring for suspended ceilings
Product registered in the Spanish Patents and Trademarks Office
Ultra fast fastening
Easy installation
Excellent soundproofing results in low and medium frequencies
Load Range: 3-15 kg
Load Range: 15-30 kg
Load Range: 30-50 kg
Load Range: 45-75 kg
Resonance frequency: 3 – 7 Hz
Breaking point: >= 200 kg
Box format:
– SE-T2000/HÍBRIDO 15 G: 30 units
– SE-T2000/HÍBRIDO 25 V: 30 units
– SE-T2000/HÍBRIDO 50 A: 30 units
– SE-T2000/HÍBRIDO 75 R: 30 units
Sample project
Proposal of a design project for Acoustic Ceiling solution using Hybrid dampers with locking device on concrete ceiling.
ACTUAL PHOTOS
To help you
Need more help?
WE WILL BE IN TOUCH WITH YOU AS SOON AS POSSIBLE
CERTIFICATE ISO 9001
SENOR guarantees through its international certificate that we comply with quality standards, being an organization with an effective quality management system, identifying areas for improvement and taking measures to progress in them. Our goal is to provide the best service to our customers.
Data Sheet
