The most advanced hybrid damper for suspension of acoustic ceilings
Model A4MIXTO H/C
HYBRID DAMPER WITH DOUBLE METRIC OUTPUT AND ANGLE CORRECTION OPTION.
It is a different and renewed high performance HYBRID damper. Manufactured with the most advanced technology and designed for the installation of acoustic suspended ceilings by using saw type galvanised steel profiles or similar.
WITH ANGLE CORRECTOR!
Click and move
Patented

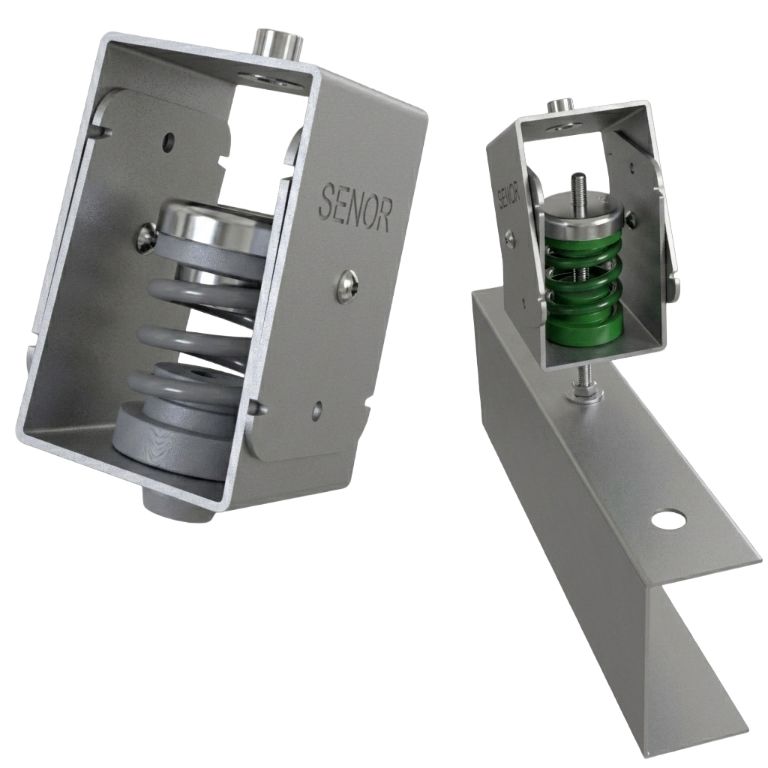

A4MIXTO H/C incorporates a double rotating option in its metallic frame (RT-10). It allows the angle of rotation to be adjusted between the two independent rods. In addition, it guarantees that the compression of the HYBRID SYSTEM is always axial and never torsional, limiting the vectorial degrees of deformation of the polymer and thus favouring the good performance of the elastic system.
- Available in M6 and M8

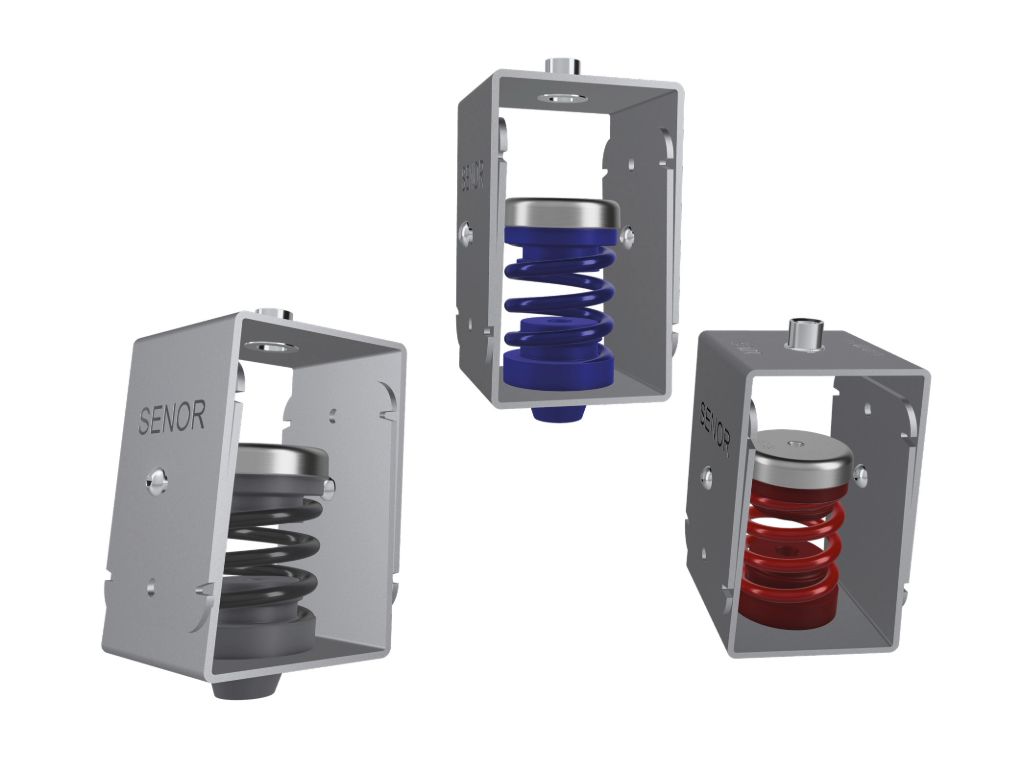

There are 4 different models depending on load range and colour: Grey, Green, Blue and Red.
✓ A4MIXTO H 20 G/C (Load range from 3 up to 20 kg)
✓ A4MIXTO H 45 V/C (Load range from 15 up to 45 kg)
✓ A4MIXTO H 75 A/C (Load range from 30 up to 75 kg)
✓ A4MIXTO H 120 R/C (Load range from 60 up to 120 kg)
Rubber mount for acoustic suspended ceilings
Here you can download the installation manual
Installation manual A4MIXTO H/C
Product registered in the Spanish Patents and Trademarks Office
Fast fixation
Easy position in the ceiling channel
Without screws
Fast levelling

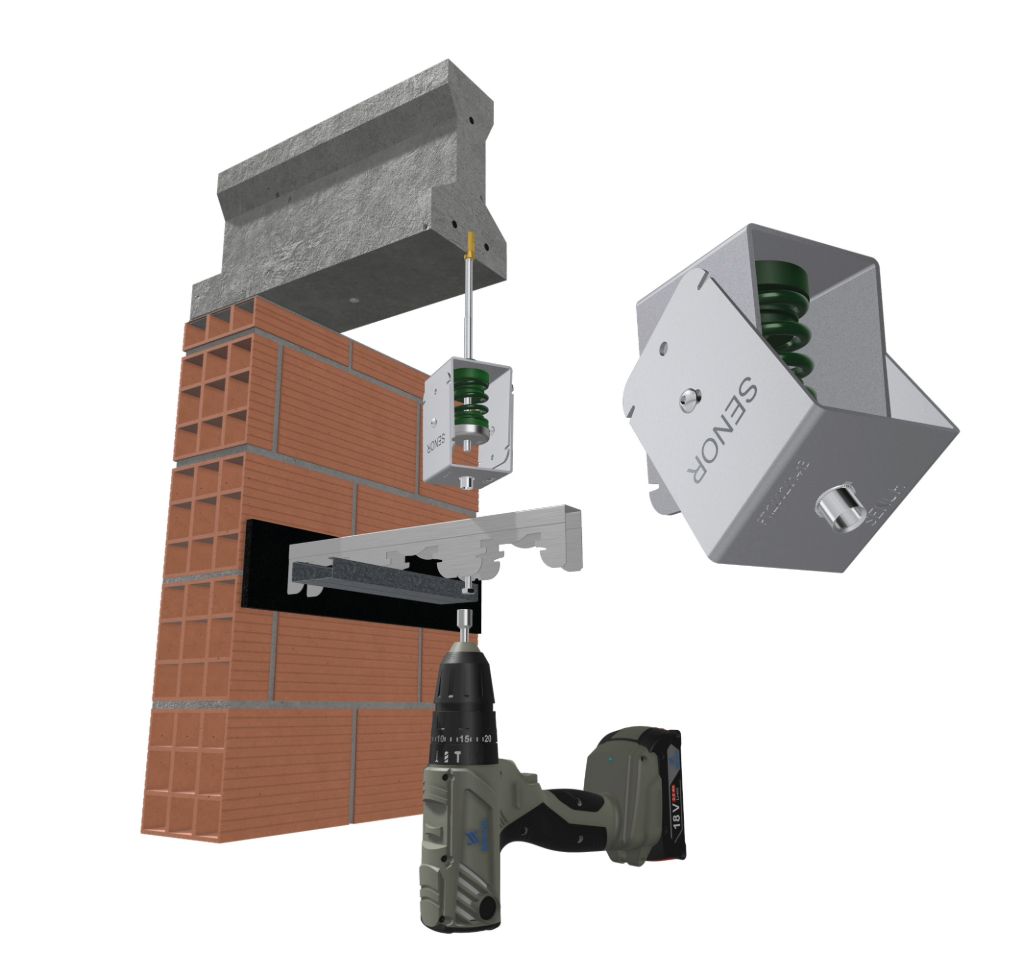

Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample project
SOUNDPROOFING SOLUTION FOR A CEILING
Soundproofing treatment for a ceiling. It is recommended the SE-A4MIXTO H 45 V. In this project you will find quantity and layout of the hanger.
