The most advanced hybrid hybrid damper for suspension of acoustic ceilings
Model 60 MDS
ACOUSTIC ceiling, WILL IT MEET THE FIRE RESISTANCE STANDARD EI120?
SENOR can firmly says that it is the first manufacturer of antivibration systems in achieving and offering solutions to install ACOUSTIC CEILINGS which meet the fire resistance standard (EI60, EI90 and EI120).
SENOR HAS DO IT AGAIN!
ACOUSTIC HYBRID HANGER WITH DIRECT FASTENING TO CEILING CHANNELS TC60, RIGI 60 or MAESTRA 6027
It is the first hybrid hanger which strictly complies with the Fire Resistant Standard EI120!
SENOR-60MDS
Click and move
Utility Model
200201413/2

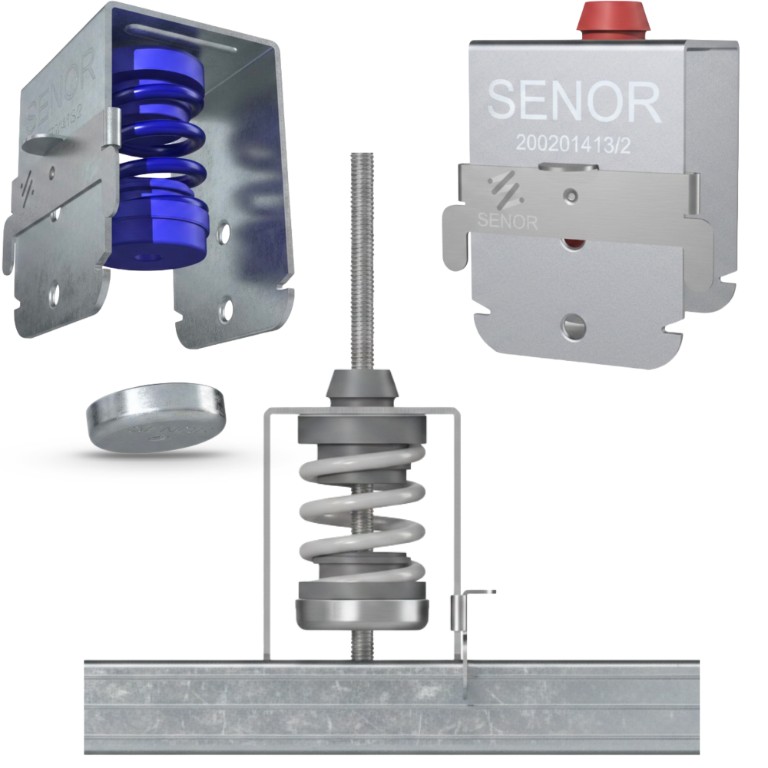

The 60MDS model is a different and renewed high-performance HYBRID ceiling hanger. It is manufactured with the most advanced technology and designed for the suspension of false acoustic ceilings using galvanized steel profiles type TC60, MAESTRA 60/27 or similar. This NEW design has made it the first ceiling hanger to obtain the Fire classification EI-30, EI-60, EI-90 & EI-120.
The HYBRID system is the combination of a polymer (rubber) and a steel spring
This combination provides quality and performance to any given acoustic system and eradicate sound frequencies and vibrations. This hanger get fastened into the channel easily and quickly thanks to our exclusive design.
There are 4 different models depending on load range and colour: Grey, Green, Blue and Red
✓ 6015 G/MDS (Load range from 3 up to 20 kg)
✓ 6025 V/MDS (Load range from 15 up up to 45 kg)
✓ 6050 A/MDS (Load range from 30 up to 75 kg)
✓ 6075 R/MDS (Load range from 60 up to 120 kg)
Installation video
EI120 ceiling installation video
This model is a hybrid acoustic hanger made with the latest technology and with high quality raw materials
Fire resistance test according to the Standard EN 1364-2:2018
Qualification fire resistance test according to the Standard EN 1364-2:2018
Here you can download the installation manual
Product registered in the Spanish Patents and Trademarks Office
Unique product with fire resistance certificate (EI-120)
Thanks to the hybrid system, the results are excellent
Security thanks to the locking device (DS)
Ease and fast installation
Load Range: 3-20 kg
Load Range: 15-45 kg
Load Range: 30-75 kg
Load Range: 60-120 kg
Resonance frequency: 3 – 7 Hz
Breaking point: >= 200 kg
Box format:
– SE-6015 G/MDS-M6/35: 35 units
– SE-6025 V/MDS-M6/35: 35 units
– SE-6050 A/MDS-M6/35: 35 units
– SE-6075 R/MDS-M6/35: 35 units
* Available in M8
Test Report Nº: B2021-LACUS-IN-160 A
Purpose: Airborne Soundproofing Test AND Impact Noise Insulation Test
Standards: UNE-EN ISO 10140-1:2016, 10140-2:2011 and 10140-3:2011+A1:2015
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 25 November 2021
Sample: CHOVA+SENOR SUSPENDED ACOUSTIC CEILING – EI120
Standardised Base Floor: Reinforced concrete slab
Standardised Base Thickness and Weight: 15 cm and 375 kg/m²
Total Acoustic Ceiling Thickness: 30 cm
Sample Description: Suspended acoustic ceiling system comprising: SE-60M/DS dampers (SENOR) + SE-BEC-10×80 acoustic strip (SENOR) + TC-60 profiles (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 25 mm Fireproof Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 25 mm Fireproof Plasterboard (KNAUF).
Result: An improvement of 22 dB in airborne sound compared to the base floor, which has a rating of 57 dB, resulting in a total soundproofing of 78 dB.
Result: Reduction of 34 dB in impact noise compared to the base floor, which has a rating of 77 dB, achieving a total soundproofing of 42 dB.
Test report Nº: 080645-001
Objetive: Fire Resistance Test
Quality Standards: EN 1363-1:2012, EN 1364-2:2018 y EN 13501-2:2016
Laboratory: TECNALIA (Azpeitia – Guipúzcoa)
Date: 28 November 2019
Sample: SENOR+CHOVA EI120 SUSPENDED ACOUSTIC CEILING
Sample dimensions: 4 m length x 3 m width
Test duration: 180 minutes. An insulation failure occurs at minute 147 and an integrity failure occurs at minute 171.
Sample description: acoustic suspended ceiling consisting of SE-60M/DS dampers (SENOR) + SE-BEC-5×90 acoustic strip (SENOR) + TC-60 profiles + SE-F/RAPID 60 DS2 cross connector (SENOR) + SE-SRC threaded soles (SENOR) + 25 mm fireproof PYL (KNAUF) + 4 mm VISCOLAN 65 acoustic foil (CHOVA) + 25 mm fireproof PYL (KNAUF)
Field of direct application (changes or variants permitted):
– LENGTH: unlimited
– WIDTH: unlimited
– Further permitted variants are listed in the Classification Report.
Result: Fire resistance classification: EI120 E120
Qualification fire resistance test according to the Standard EN 1364-2:2018
Fire resistance test according to the Standard EN 1364-2:2018
Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample project
SOUNDPROOFING TREATMENT FOR A PUB
Soundproofing treatment for a pub with music to respect the Spanish construction code (CTE DB-HR)
