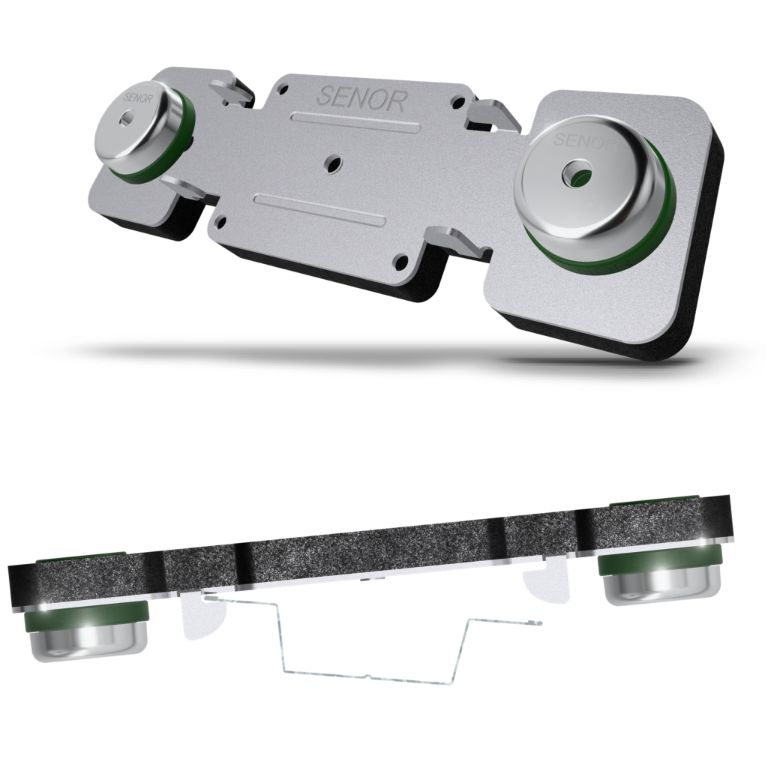

Model FTD-OMEGA
THE THINNEST RUBBER DAMPENER IN VIBRATION PROTECTION WITH DIRECT FIXING TO OMEGA 82mm MAESTRA STEEL PROFILES
MINIMUM LOSS OF SPACE!
FTD-OMEGA is the thinnest damper on the market, it is the present and the future for tight spaces.
Click and move
Patented
FTD-OMEGA is the thinnest mount on the market, it is the present and future solution to soundproof small spaces. Wall structure is built with minimal effort, obtaining a lab-tested acoustic enhancement to airborne noise of more than 12 dB.
✓ Available for 82*16*3000 millimeters OMEGA profiles.
✓ Quick lock fastening (clip stop) for maximum safety.
✓ FTD-OMEGA (Load range from 3 up to 25 kg)
IMPORTANT NOTE:
When installing the SE-FTD OMEGA damper on a ceiling, it is NECESSARY and MANDATORY to fix the omega profiles to the dampers with 9 mm MM (Metal – Metal) self-drilling screws, in order to provide security to the construction system.
For the development of direct acoustic ceilings with omega profiles, at SENOR we recommend using the SE-FTD OMEGA ULTRA dampers as the best option.
Installation video
Promotional video
See video before installing the product on the ceiling
Wall mount made of double rubber fastening providing a excellent performance.
Here you can download the installation manual
Product registered in the Spanish Patents and Trademarks Office
Suitable for Omega channels of 82x16x3000 mm
Soundproofing is possible wasting the minimum loss of space required
Double fixing to the wall (resistant in case of fire thanks to the cups and screws)
Ease and speed of installation
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-FTD OMEGA: 50 units
– SE-FTD OMEGA – C15: 15 units
Test Report Nº: B2020-LACUS-IN-122-4 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 30 October 2020
Sample: CHOVA+SENOR DIRECT ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 6.2 cm
Sample Description: Direct wall lining system comprising: SE-FTD OMEGA dampers (SENOR) + SE-BEC-10×100 acoustic strip (SENOR) + omega profiles (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 15 mm Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 12.5 mm Plasterboard (KNAUF).
Result: An improvement of 13 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 61 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Construction detail
With our interactive video you can ask us what you need, we will answer you as soon as possible!
Sample project
SOUNDPROOFING TREATMENT FOR CEILING
Soundproofing treatment for a home. In this project the SE-FTD OMEGA is recommended.
ACTUAL PHOTOS
