The thinnest wall lining damper for TC-60 profiles with a Leveling System
Model FTD-NIVEL 60/TD
THE THINNEST WALL LINING DAMPER FOR VIBRATION PROTECTION WITH ADJUSTABLE FIXING TO TC-60 STEEL PROFILES OR SIMILAR
DOES NOISE BOTHER YOU? WE HAVE THE SOLUTION
The FTD-NIVEL 60/TD is an excellent and the thinnest damper on the market, it is the present and future solution for small spaces with leveling issues. This new product is capable of improving airborne noise by more than 12 dBA.
IRREGULAR WALL LINING IS NO LONGER A PROBLEM!

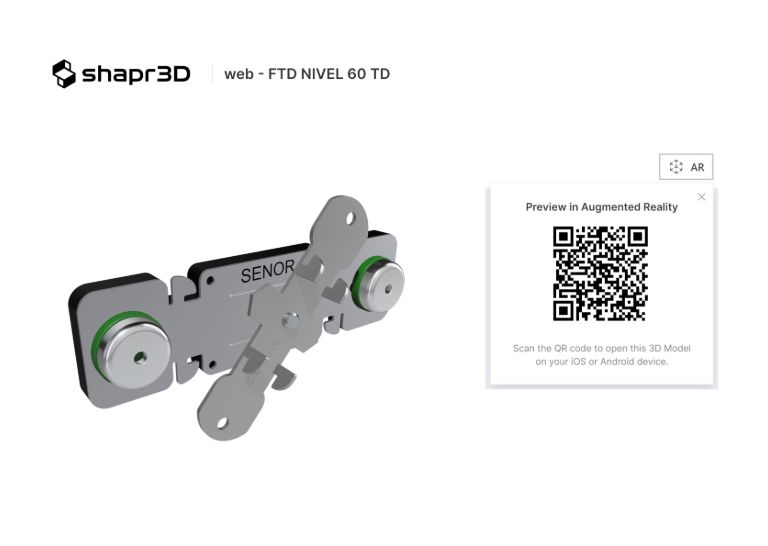

SENOR-FTD-NIVEL 60/TD
Click and move
Patented
P.T. SPAIN – 201531558 (6)
P.T. FRANCE – 16/59682
The FTD-NIVEL 60/TD is a very slim soundproofing system for small spaces, featuring a leveling system and direct fixation for 60/27 mm profiles. It constructs acoustic wall lining with minimal effort, achieving more than a 12 dB improvement in airborne noise with tested results.
✓ Available for 60 millimeter wall lining profiles.
✓ Leveling system (Nivel-60) for infinite speed.
* FTD-NIVEL 60/TD (Load range from 3 to 25 kg)
There are several references depending on the length required:
- SE-FTD NIVEL 60/TD (standard): with 2,5 cm screw and adjustment of 0 – 20 mm
- SE-FTD NIVEL 60/TD T50: with 5 cm screw and adjustment of 0 – 45 mm
- SE-FTD NIVEL 60/TD T80: with 8 cm screw and adjustment of 0 – 75 mm
- SE-FTD NIVEL 60/TD T160: with 16 cm screw and adjustment of 0 – 155 mm
Installation video
Promotional video

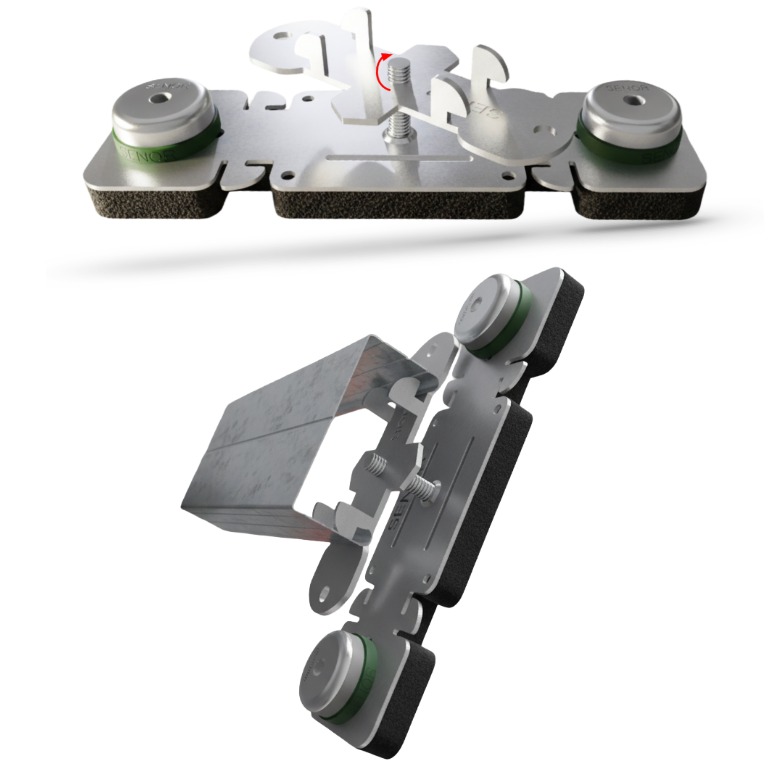

Rubber mount for walls with leveling system
Here you can download the installation manual
Installation manual FTD-NIVEL 47
Product registered in the Spanish Patents and Trademarks Office
The leveller accesory levels the unevennes at crooked original walls
Soundproofing is possible wasting the minimum loss of space required.
Ease and speed of installation
Double fixing (resistant in case of fire thanks to the cups and screws).
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-FTD NIVEL 60/TD: 50 units
– SE-FTD NIVEL 60/TD – C15: 15 units
– SE-FTD NIVEL 60/TD T50: 40 units
– SE-FTD NIVEL 60/TD T80: 30 units
– SE-FTD NIVEL 60/TD T160: 40 units
Test Report Nº: B2020-LACUS-IN-122-4 A
Purpose: Airborne Soundproofing Test
Standards: UNE-EN ISO 10140-1:2016 and 10140-2:2011
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 30 October 2020
Sample: CHOVA+SENOR DIRECT ACOUSTIC WALL LINING
Standardised Base Wall: 15 cm concrete block + plasterboards on both sides
Standardised Base Thickness and Weight: 17.5 cm and 300 kg/m²
Total Wall Lining Thickness: 6.2 cm
Sample Description: Direct wall lining system comprising: SE-FTD OMEGA dampers (SENOR) + SE-BEC-10×100 acoustic strip (SENOR) + omega profiles (KNAUF) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + 4 cm CHOVANAPA sound-absorbing material (CHOVA) + 15 mm Plasterboard (KNAUF) + 4 mm VISCOLAM 65 acoustic membrane (CHOVA) + 12.5 mm Plasterboard (KNAUF).
Note: For the FTD-NIVEL 60/TD product, the acoustic results obtained in this test is also valid, as both products share the same base structure (metal+EPDM) and polymers.
Result: An improvement of 13 dB in airborne sound compared to the base wall, which has a rating of 48 dB, resulting in a total soundproofing of 61 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Construction detail
