The thinest ceiling damper for profile TC-45/48 with Leveling System.
Model FTD-NIVEL 47
THE THINNEST CEILING DAMPER FOR VIBRATION PROTECTION WITH ADJUSTABLE FIXATION TO TC47 STEEL PROFILES OR SIMILAR.
DOES NOISES BOTHER YOU? WE HAVE THE SOLUTION FOR YOU
FTD-NIVEL 47 is an excellent and the thinnest anti-vibration mount on the market, it is the present and future solution for small spaces with uneven issues. This new product is capable of improving airborne noise by more than 12 dBA.
UNEVEN CEILING IS NO LONGER A PROBLEM!
SENOR-FTD-NIVEL 47
Click and move
Patented
P.T. ESPAÑA – 201531558 (6)
P.T. FRANCIA – 16/59682

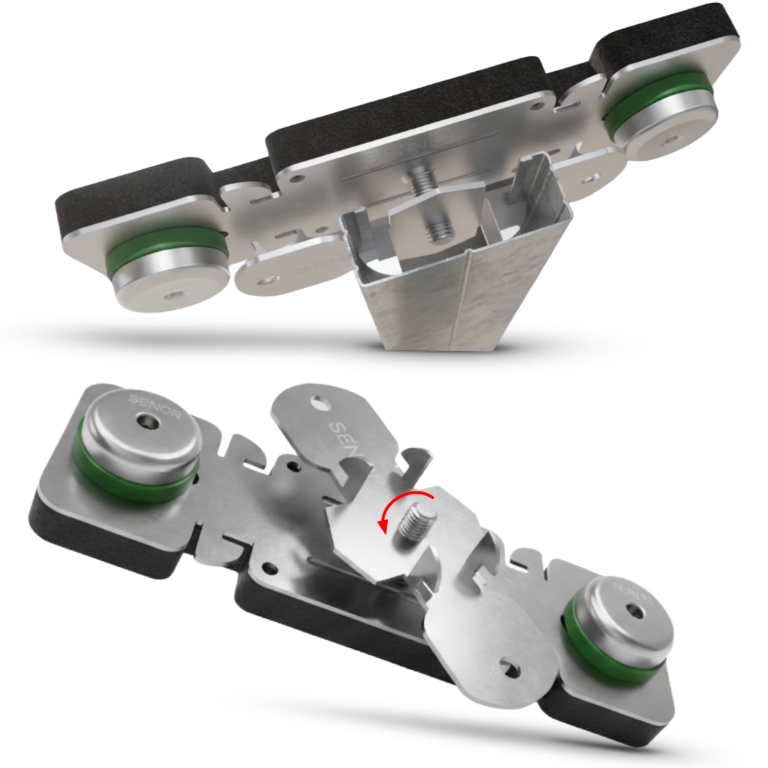

The FTD-NIVEL 47 is a very slim damper for small spaces with a leveling system and direct fixation to 45/48 mm profiles (such as TC47, F-530, Maestra F47/17, T-45, or similar). It constructs acoustic ceilings with minimal effort, achieving improvements in airborne noise of more than 12 dB with already tested results.
✓ Available for ceiling profiles from 45 to 48 millimeters.
✓ Leveling system (Nivel-47) for infinite speed.
* FTD-NIVEL 47 (Load range from 3 to 25 kg)
There are several references depending on the length required:
- SE-FTD NIVEL 47 (standard): with 2,5 cm screw and adjustment of 0 – 20 mm
- SE-FTD NIVEL 47 T50: with 5 cm screw and adjustment of 0 – 45 mm
- SE-FTD NIVEL 47 T80: with 8 cm screw and adjustment of 0 – 75 mm
- SE-FTD NIVEL 47 T160: with 16 cm screw and adjustment of 0 – 155 mm
Promotional video
Rubber mount for ceilings with leveling system
Here you can download the installation manual
Installation manual FTD-NIVEL 47
Product registered in the Spanish Patents and Trademarks Office
The leveller accesory levels the unevennes
Soundproofing is possible wasting the minimum loss of space required
Ease and speed of installation
Double fixing (resistant in case of fire thanks to the cups and screws)
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Box format:
– SE-FTD NIVEL 47: 50 units
– SE-FTD NIVEL 47 – C15: 15 units
– SE-FTD NIVEL 47 T50: 40 units
– SE-FTD NIVEL 47 T80: 30 units
– SE-FTD NIVEL 47 T160: 40 units
Sample Project
ACOUSTIC CEILING FOR SMALL SPACES
Ceiling soundproofing project in a house. It is recommended to use SE-FTD LEVEL 47. The total number of dampers required, their behaviour and modulation are indicated in this project.
