The slimmest ceiling damper for profile TC-45/48
Model FTD-MINI/47
THE THINNEST CEILING ANTI-VIBRATION MOUNT FOR VIBRATION PROTECTION USING TC-45/48 TYPE STEEL PROFILES
DOES NOISES BOTHER YOU? WE HAVE THE SOLUTION FOR YOU
FTD-MINI/47 is an excellent and the thinnest anti-vibration mount on the market, it is the present and future solution for small spaces. This new product is capable of improving airborne noise by more than 12 dBA.
WITH ALREADY TESTED RESULTS!
PATENTED SYSTEM!

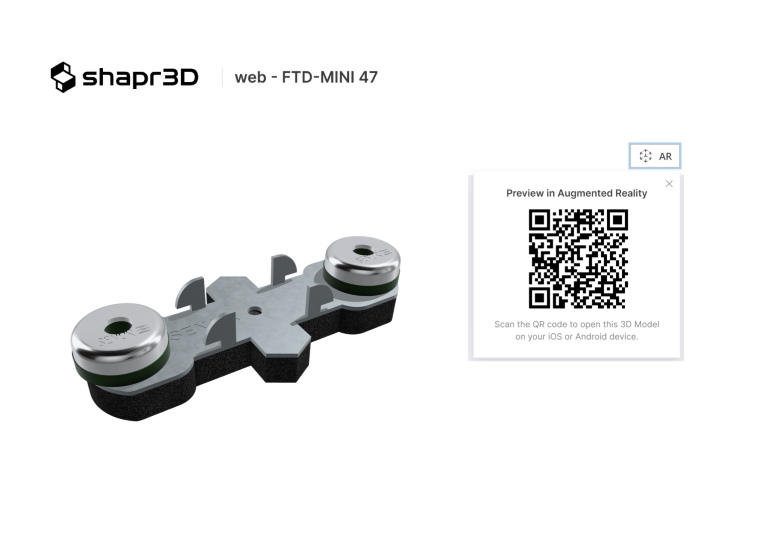

Clica y mueve
Patented
P.T. 202230954

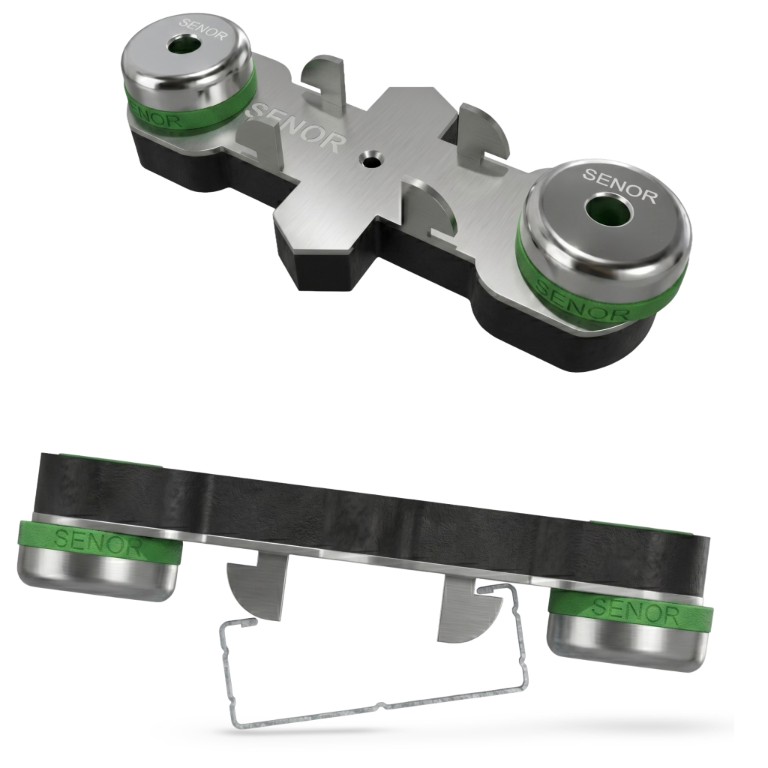

FTD-MINI 47 is a unique anti-vibration mount with incredible results in the acoustic field designed for application in acoustic ceilings with TC-47 type profiles. It is the present and the future solution to soundproofing small spaces, obtaining better acoustic enhancement to airborne noise of more than 12 dBA.
It also has a major advantage due to it´s quick catch; called CLIP STOP, providing quality, performance and safety to TC-45/48 mm wide and 17 mm high metal channel profiles that are used for plasterboard applications.
✓ Available for profiles TC-45/48 – 45 to 48 millimetres.
✓ Is space an issue? It is the thinnest antivibration hanger on the market.
* FTD-MINI 47 (Load range from 3 a 25 kg)
Installation video
THE THINNEST CEILING ANTI-VIBRATION MOUNT FOR VIBRATION PROTECTION USING TC-45/48 TYPE STEEL PROFILES
Here you can download the installation manual
Installation manual FTD-MINI 47
Product registered in the Spanish Patents and Trademarks Office
Minimum loss of space during installation
Quick locking fixation (clip stop) for infinite security
Double fixing, fire resistant thanks to the metal cup and screws
Offers acoustic improvements to airborne noise of more than 12 dB (system tested in a laboratory)
Ultra-fast installation
Provides ELASTICITY to plasterboard installations
Compatible with acoustic ceilings and wall insulations
Load Range: 3-25 kg
Resonance frequency: 7 – 15 Hz
Breaking point >= 130 kg
Box format:
– SE-FTD MINI/47: 75 units
– SE-FTD MINI/47-C25: 25 units
Test Report Nº: 110860-861 A
Purpose: Airborne Soundproofing Test AND Impact Noise Insulation Test
Standards: UNE-EN ISO 10140-1:2022, 10140-2:2022 and 10140-3:2022
Laboratory: TECNALIA (Vitoria, SPAIN)
Date: 1 July 2024
Sample: DANOSA+SENOR DIRECT ACOUSTIC CEILING
Standardised Base Floor: Reinforced concrete slab
Standardised Base Thickness and Weight: 15 cm and 375 kg/m²
Total Ceiling Thickness: 9 cm
Sample Description: Direct ceiling system comprising: SE-FTD MINI 47 dampers (SENOR) + SE-BEC-8×80 acoustic strip (SENOR) + TC-45/48 profiles (PLACO) + SE-MONT-BICAPA-40 decoupling strip (SENOR) + DANOFON multilayer component (DANOSA) + 12.5 mm Plasterboard (PLACO) + 4 mm M.A.D.4 acoustic membrane (DANOSA) + 12.5 mm Plasterboard (PLACO).
Result: An improvement of 13 dB in airborne sound compared to the base floor, which has a rating of 57 dB, resulting in a total soundproofing of 69 dB.
Result: Reduction of 23 dB in impact noise compared to the base floor, which has a rating of 78 dB, achieving a total soundproofing of 54 dB.
Laboratory measurement of airborne sound insulation improvement – WITH DAMPERS –
Laboratory measurement of airborne sound insulation improvement – WITHOUT DAMPERS –
Sample Project
LOW FORGED ACOUSTIC CEILING
Project to eradicate all contamination by solid means to the rest of the property
ACTUAL PHOTOS
